Wiring Diagrams

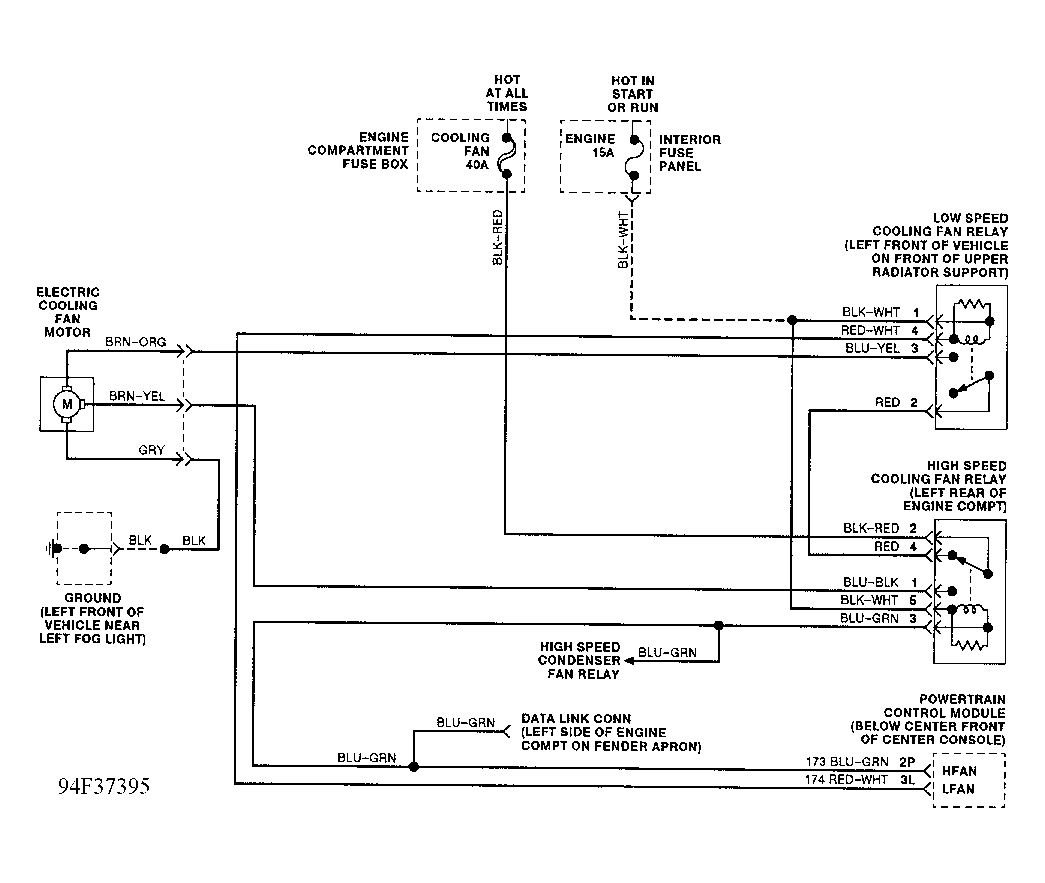

Fig 1: Electric Cooling Fan Wiring Diagram (2.0L)

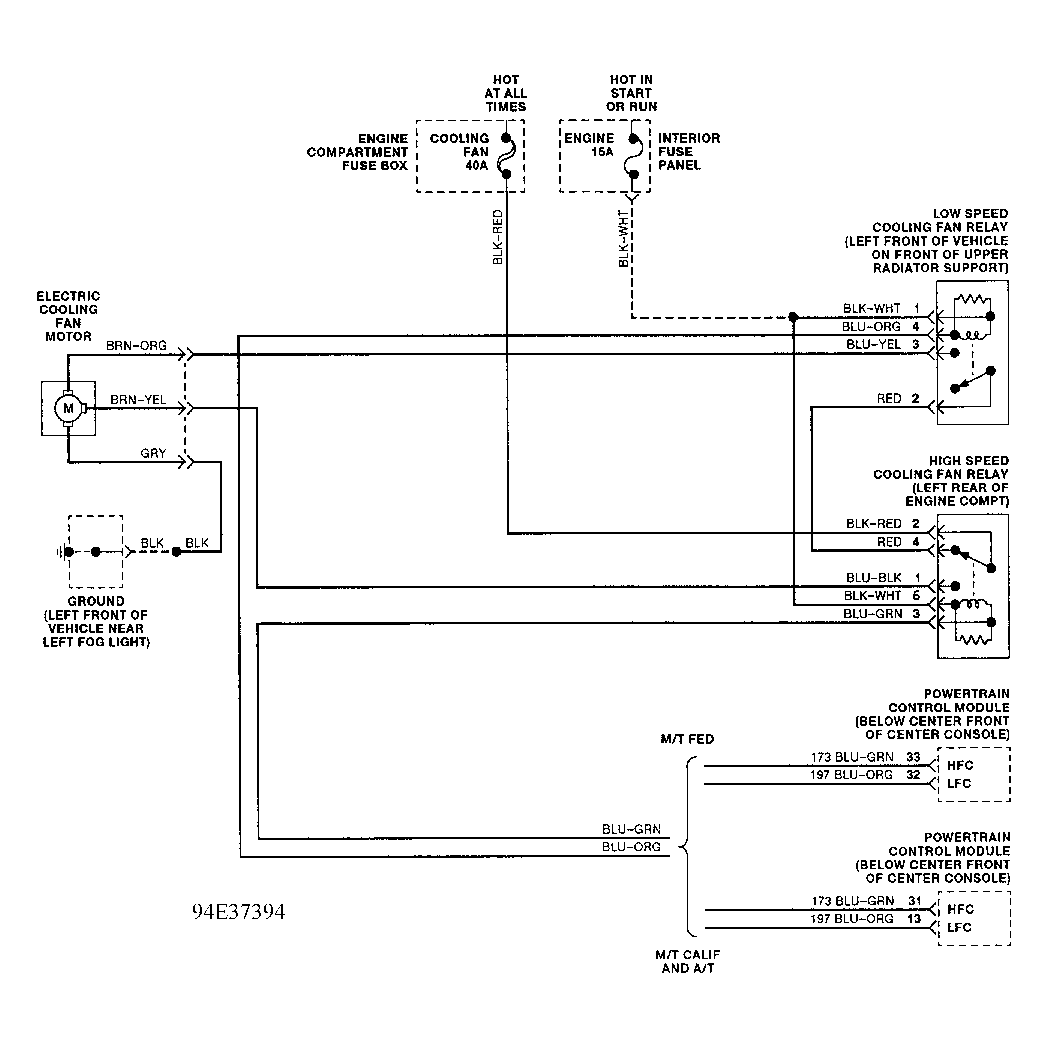

Fig 2: Electric Cooling Fan Wiring Diagram (2.5L)
