Engine Controls - Tests W/Codes - EEC-IV (2.0L)
›
Diagnostic Trouble Code Definition Charts
Diagnostic Trouble Code Definition Charts

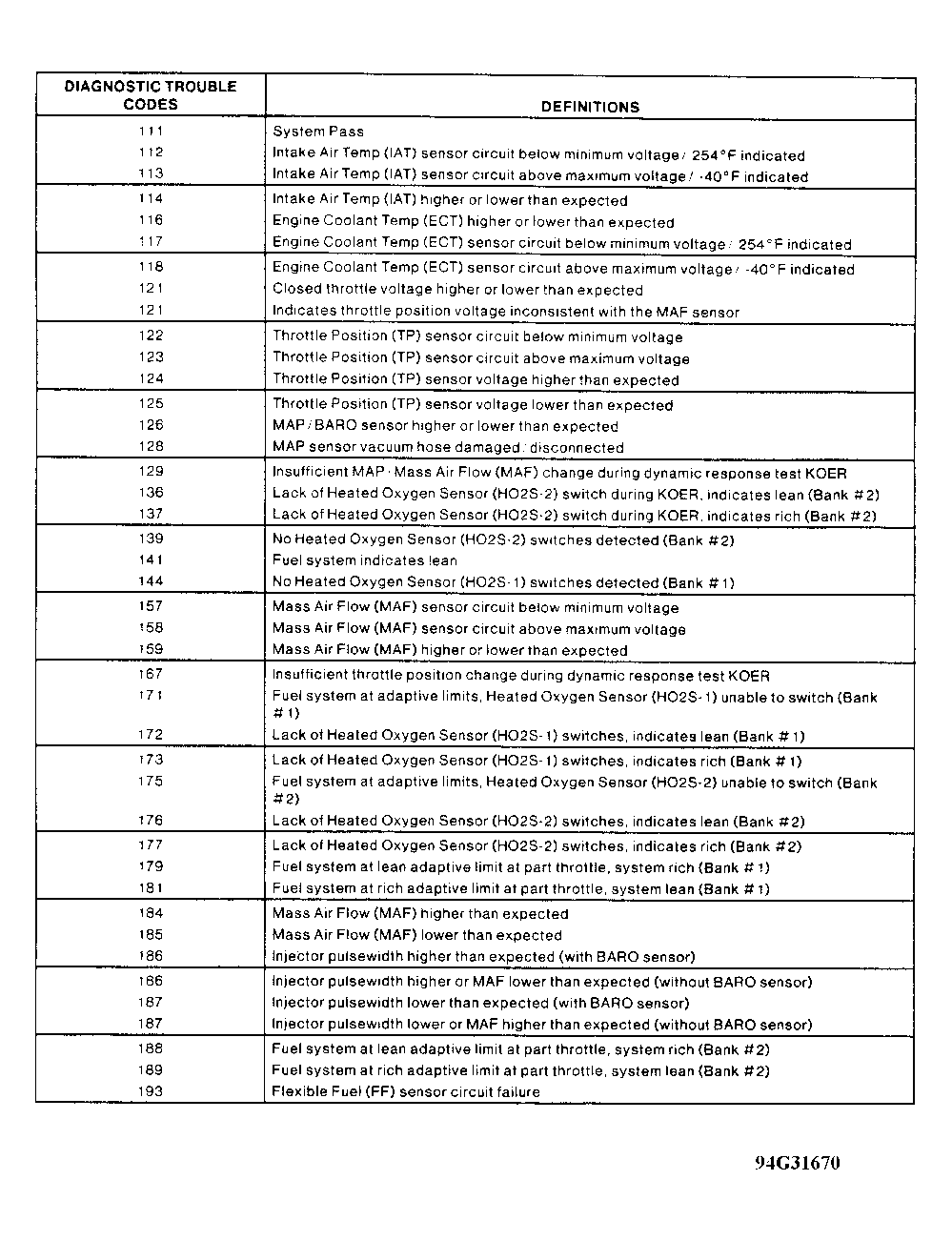

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 4)
Courtesy of FORD MOTOR CO.

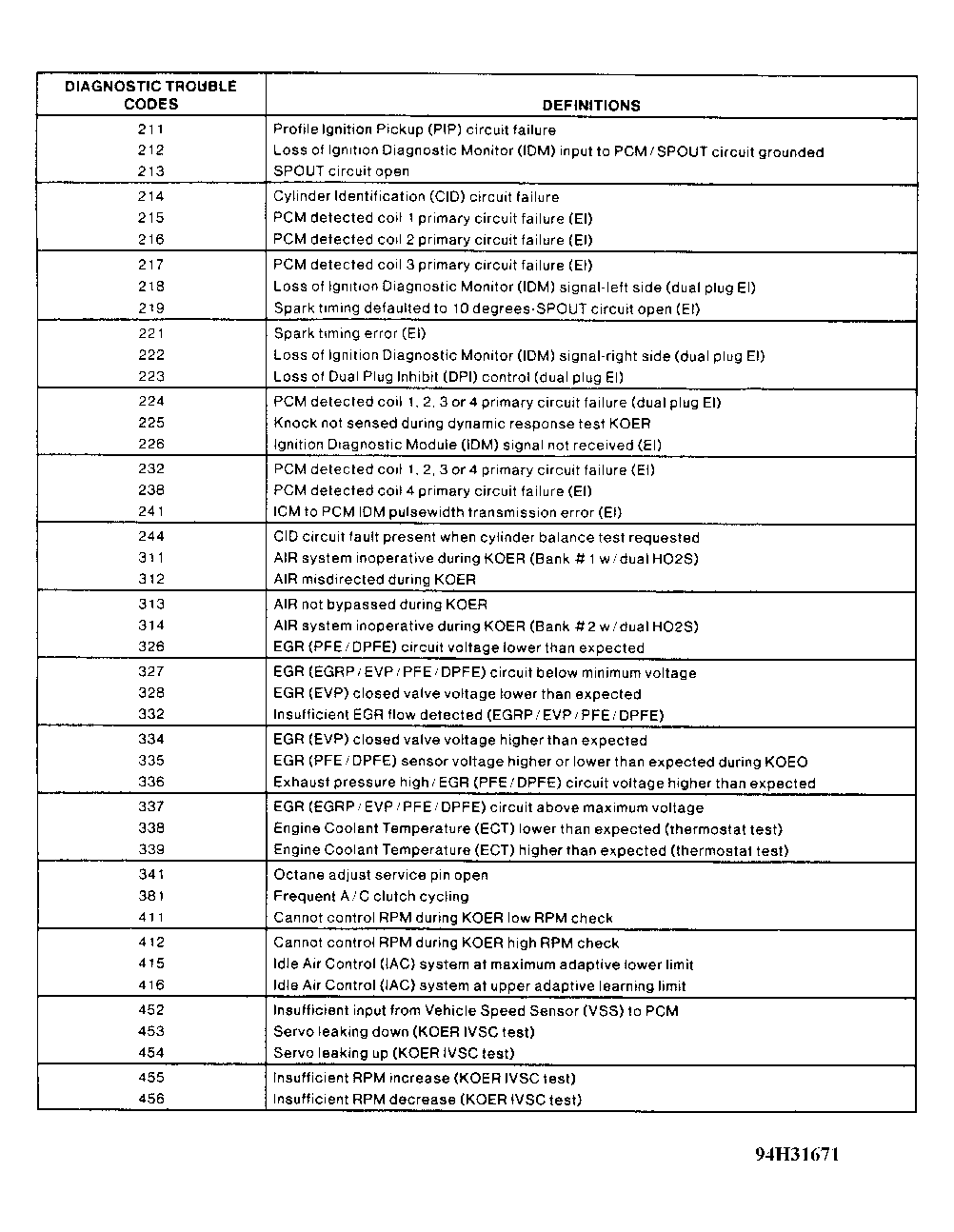

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 4)
Courtesy of FORD MOTOR CO.

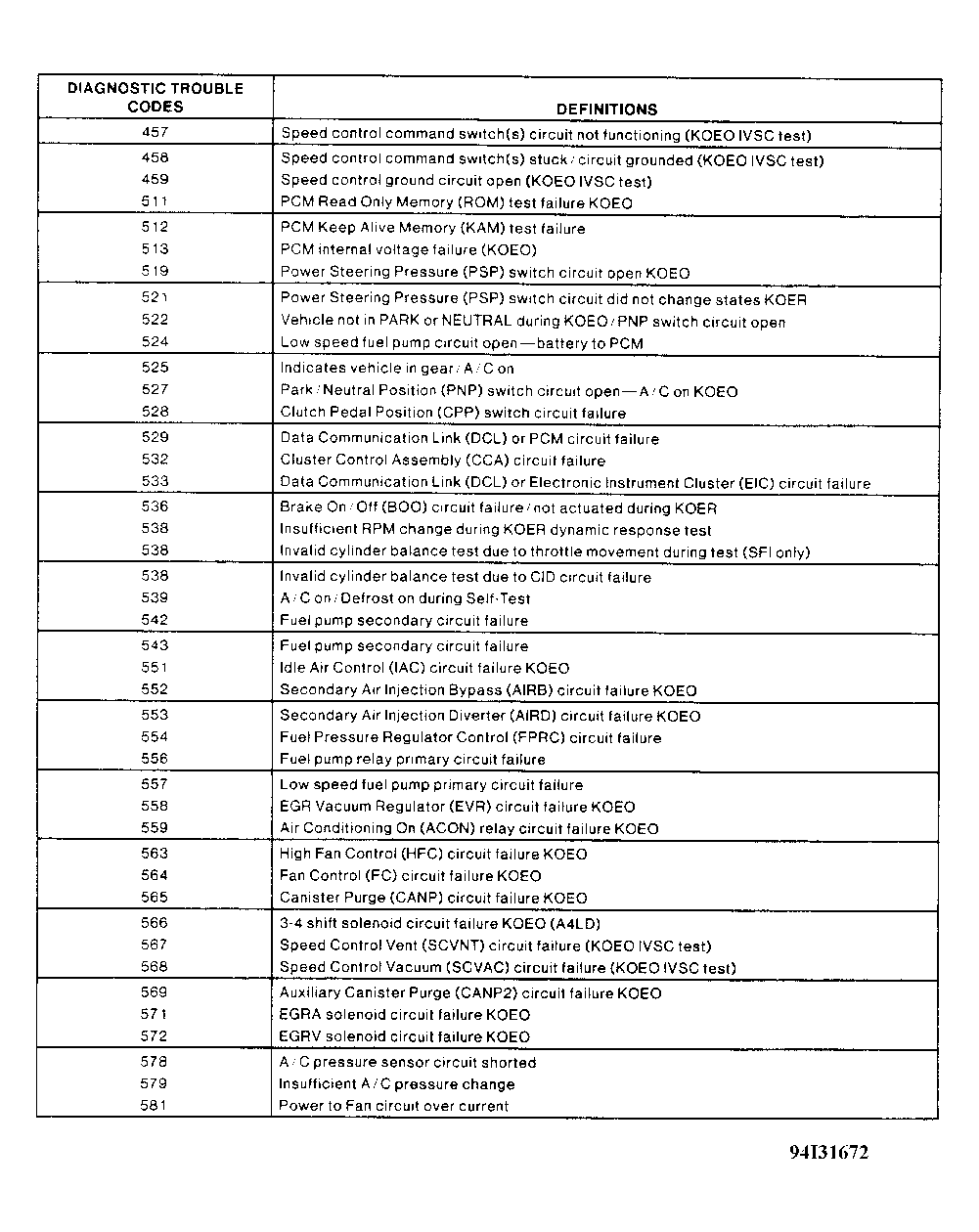

Fig 3: Diagnostic Trouble Code Definition Chart (3 Of 4)
Courtesy of FORD MOTOR CO.

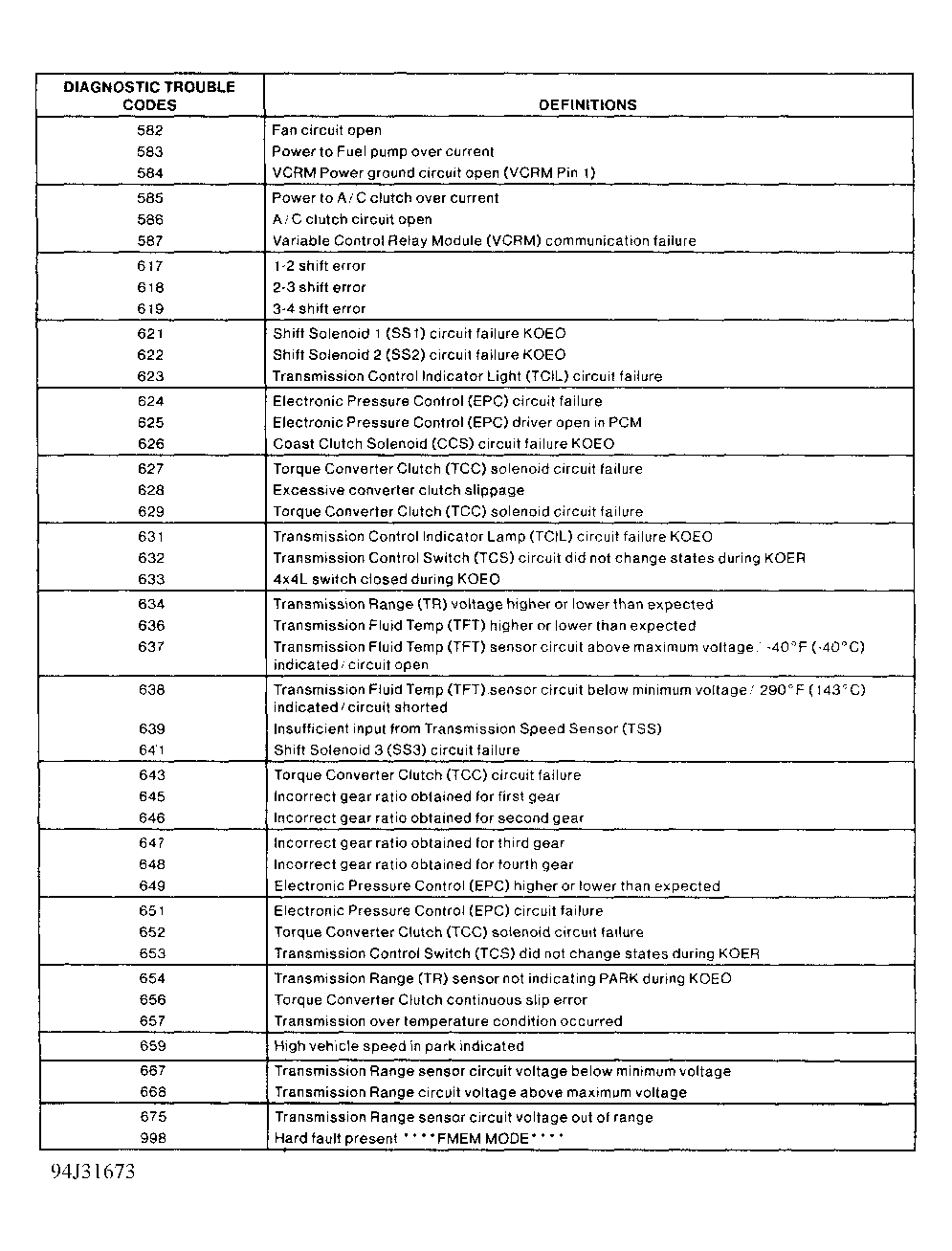

Fig 4: Diagnostic Trouble Code Definition Chart (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
