UNDERHOOD Fuse Panel Identification: Notes

The "high-current fuse panel is located in the engine compartment next to the battery.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

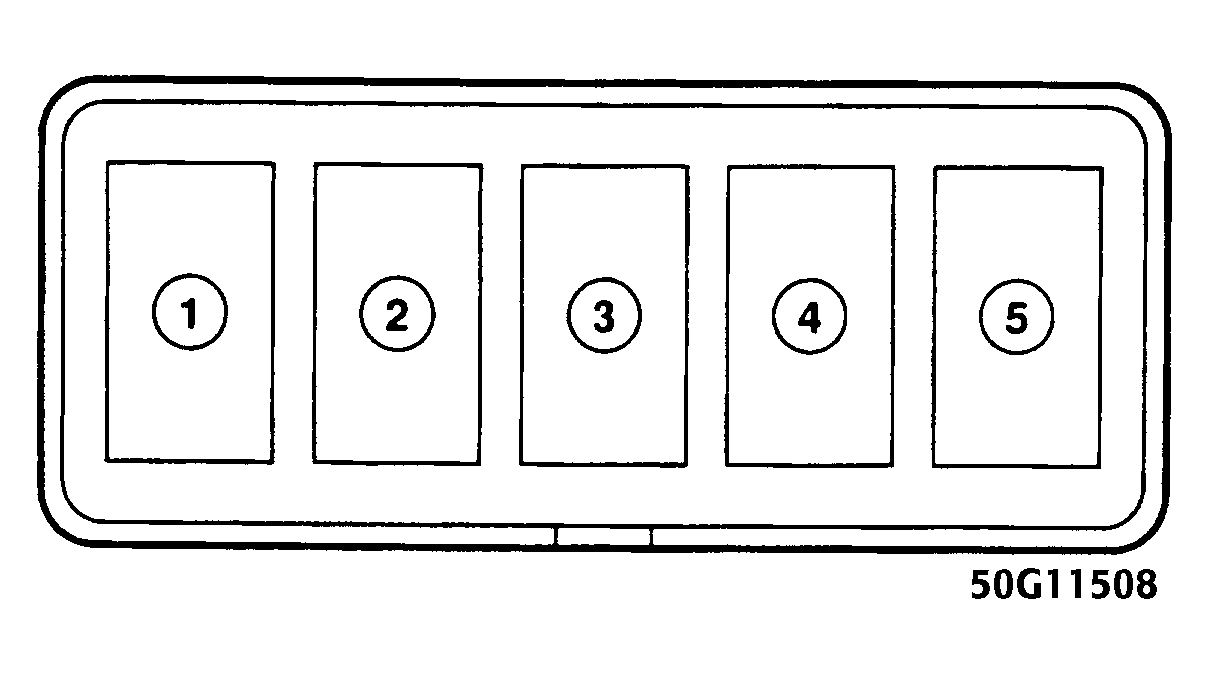

Fig 1: Underhood Fuse Panel Identification
G50G11508Courtesy of FORD MOTOR CO.
