Wiper Motor Current Test

1. Disengage wiper arm linkage from wiper motor. Unplug connectors from wiper motor. Using fused jumper wires, connect ammeter between positive battery terminal and Yellow/Red wire terminal of wiper motor. See Fig 1 .
2. Connect jumper wire from ground to Dark Blue/Orange wire terminal of wiper motor. Measure low speed current. Disconnect jumper wire from Dark Blue/Orange wire terminal, and connect it to White wire terminal of wiper motor. Measure high speed current. In both low and high speed tests, current should not exceed 3.5 amps.

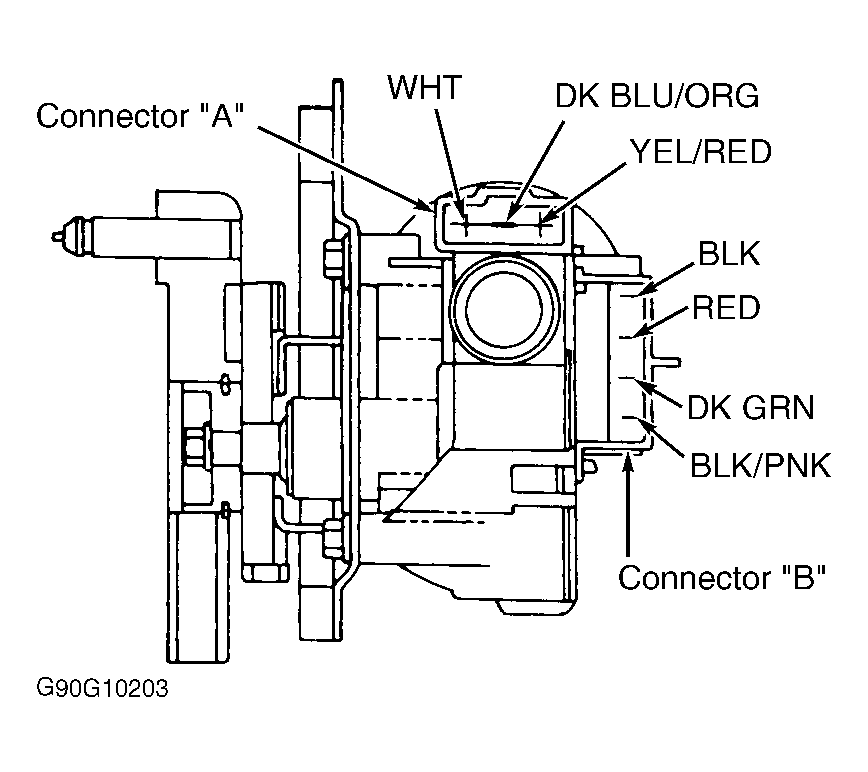

Fig 1: Identifying Wiper Motor Terminals (Typical)

Courtesy of FORD MOTOR CO.
