Remote Keyless Entry System

The remote keyless entry system has 4 main components: a Driver's Door Module (DDM), located within the driver's door; a keypad, located on the driver's door; an antenna, located in the wiring harness near the DDM; and a remote transmitter. The DDM may also be referred to as a Left Front Door Module (LFDM).

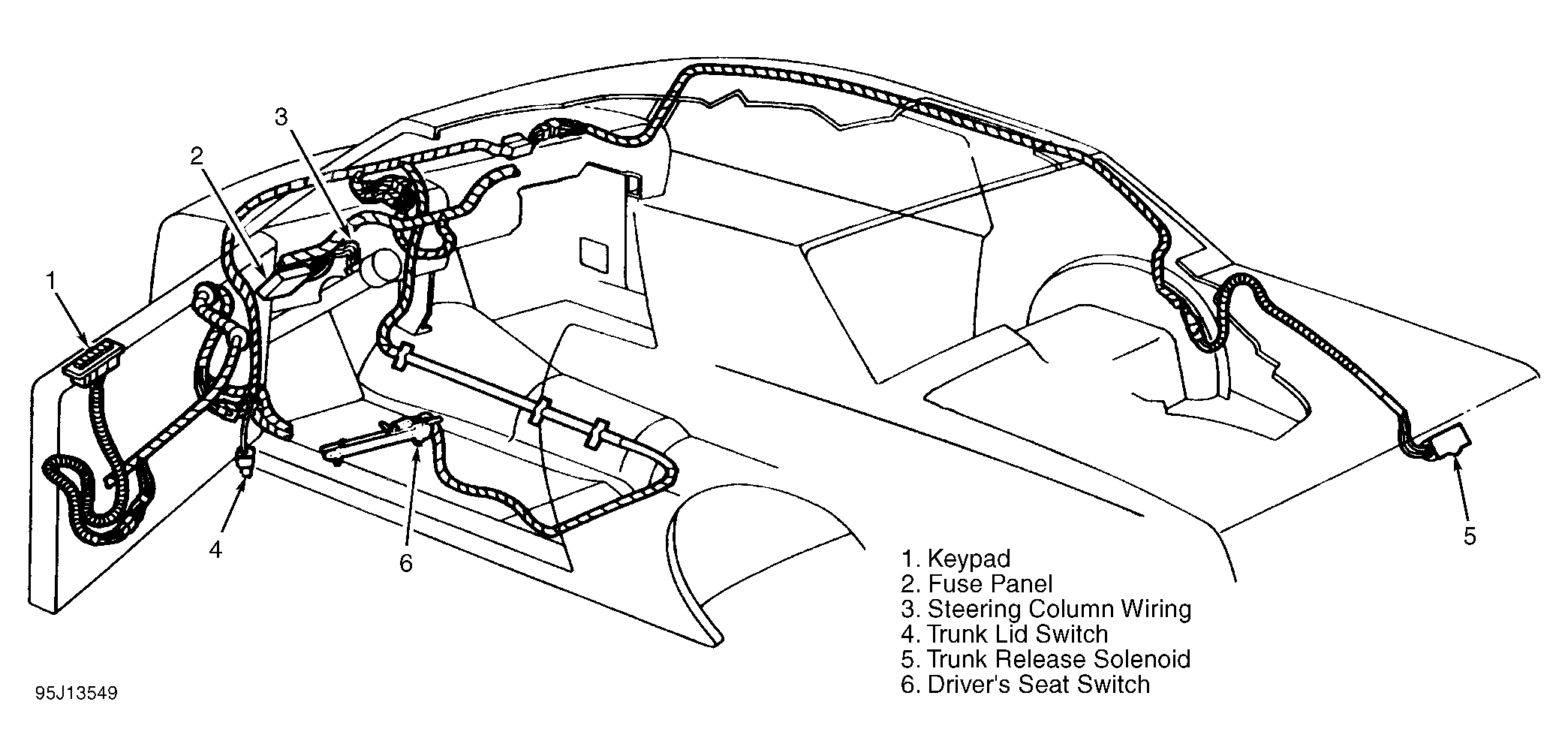

Fig 1: Keyless Entry System Components (Crown Victoria & Grand Marquis)
G95J13549Courtesy of FORD MOTOR CO.
