Diagnostic Trouble Code (DTC) Reference Charts

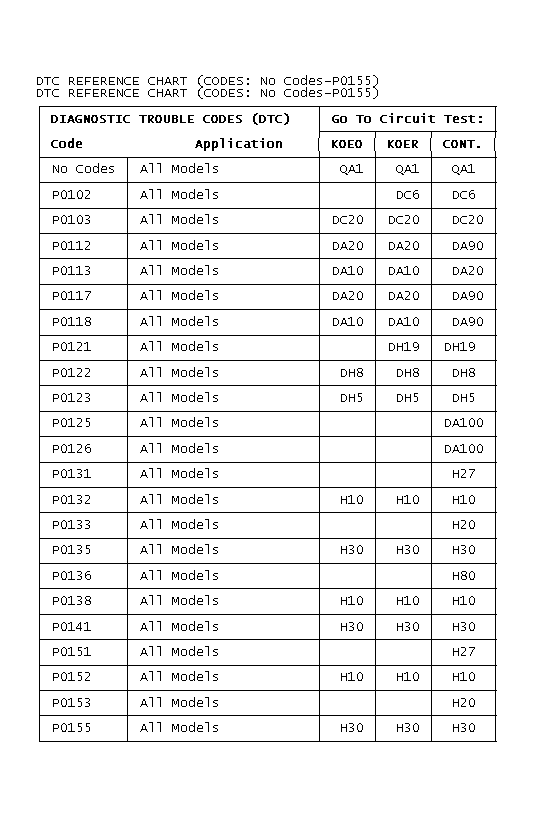

Fig 1: DTC Reference Chart (Codes: No Codes-P0155)

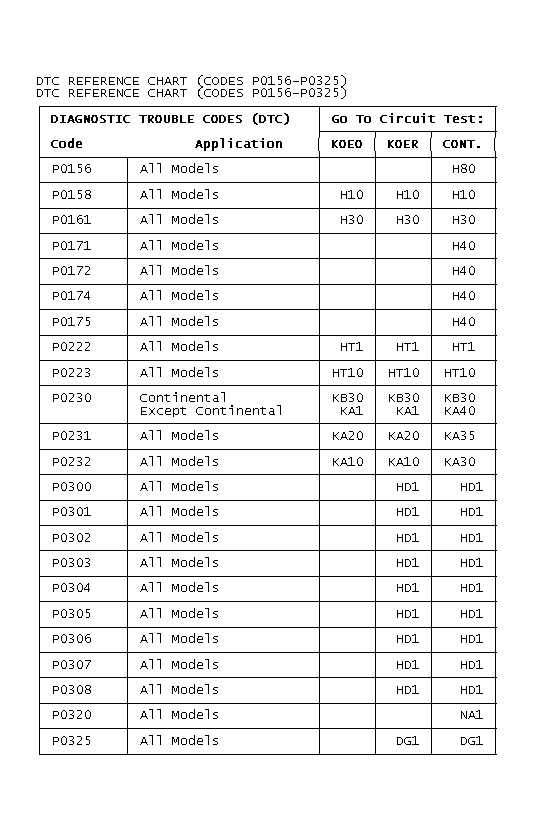

Fig 2: DTC Reference Chart (Codes P0156-P0325)

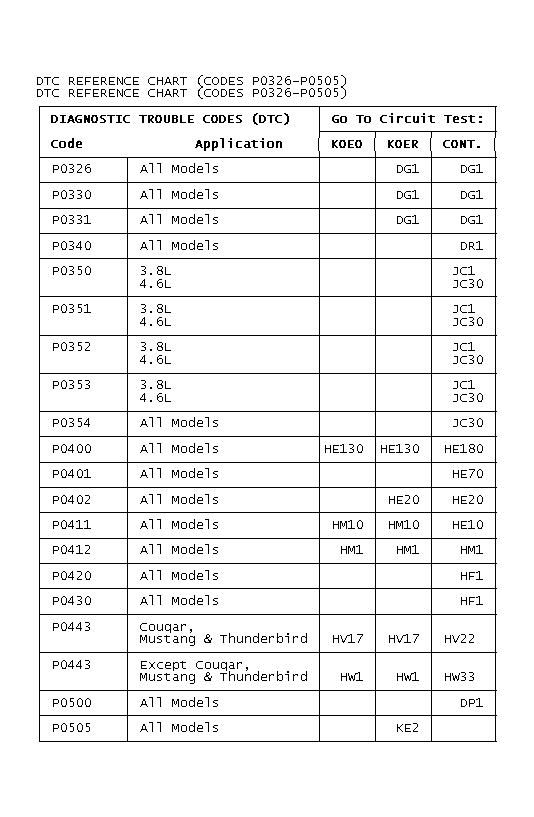

Fig 3: DTC Reference Chart (Codes P0326-P0505)

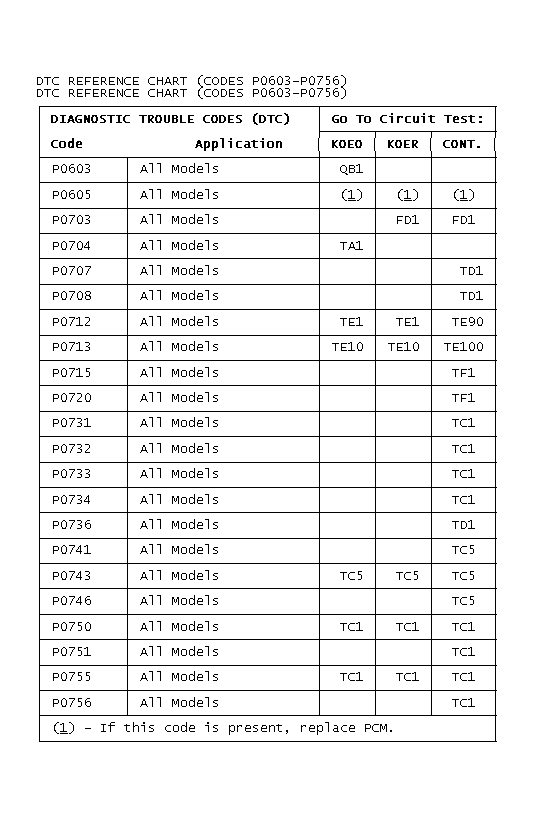

Fig 4: DTC Reference Chart (Codes P0603-P0756)

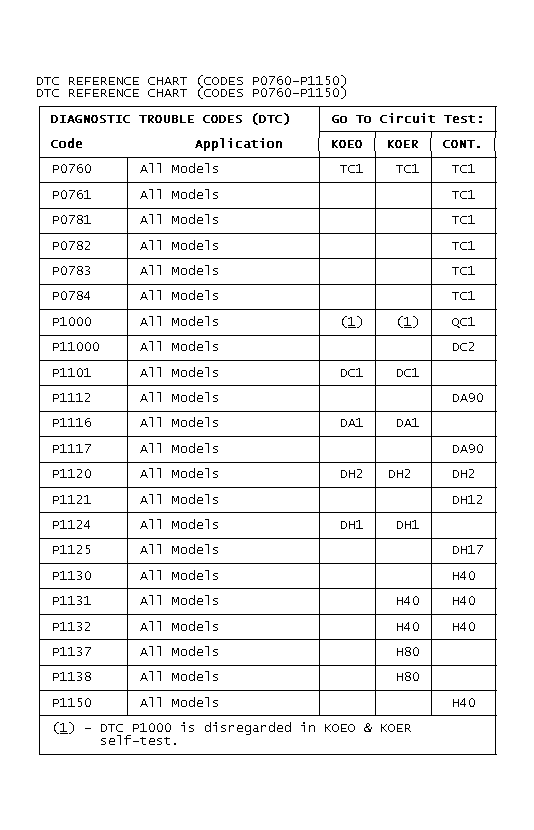

Fig 5: DTC Reference Chart (Codes P0760-P1150)

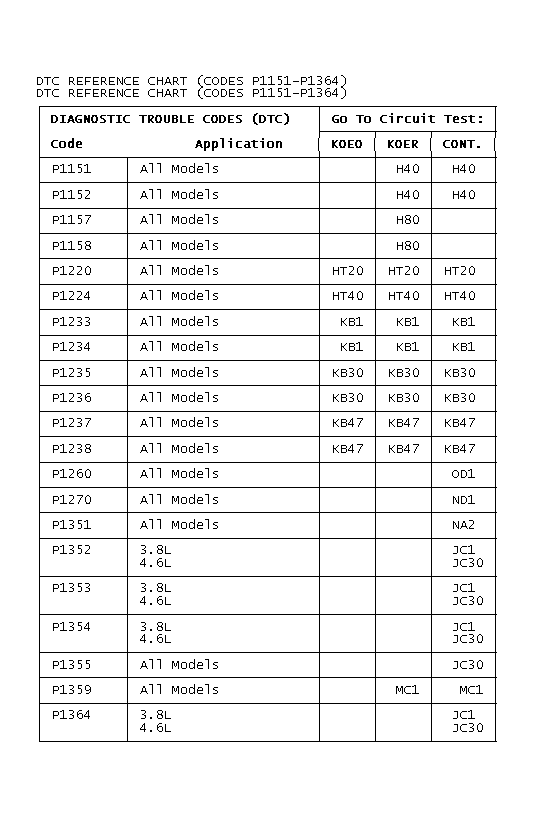

Fig 6: DTC Reference Chart (Codes P1151-P1364)

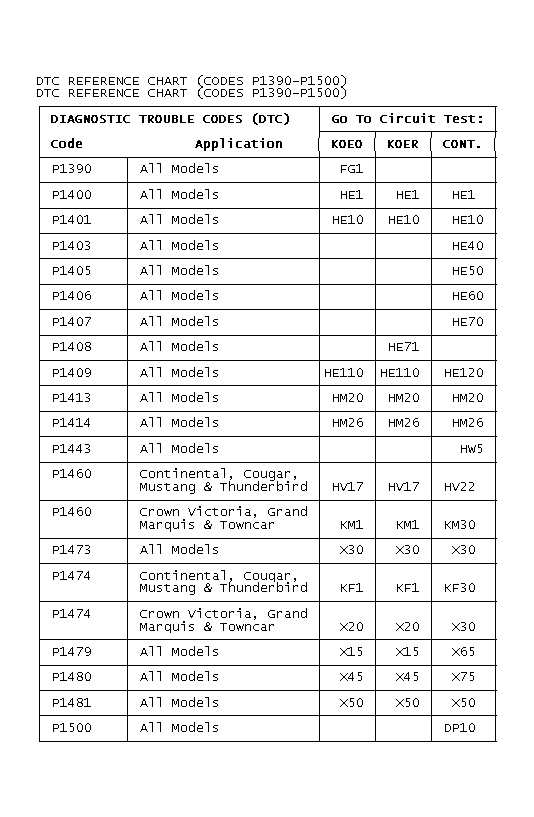

Fig 7: DTC Reference Chart (Codes P1390-P1500)

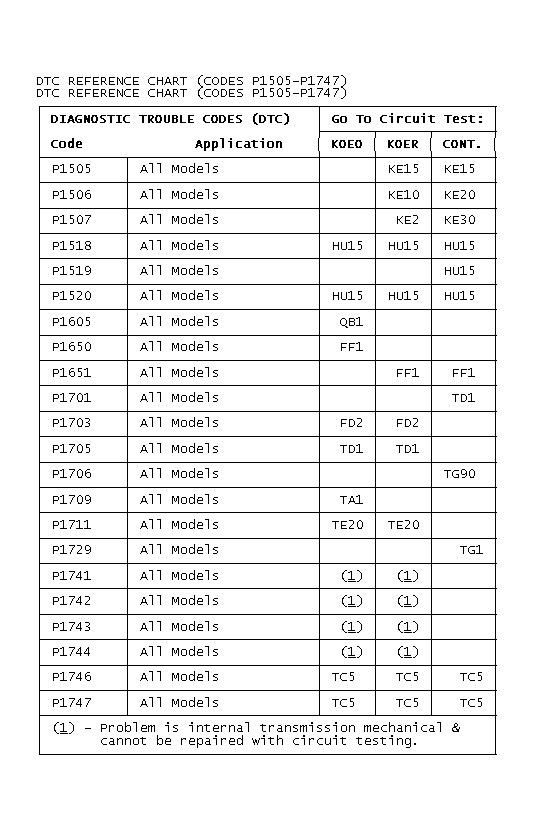

Fig 8: DTC Reference Chart (Codes P1505-P1747)

Fig 9: DTC Reference Chart (Codes P1749-P1787)
