Alignment (Wagon)
- Loosen the liftgate hinge-to-liftgate bolts just enough to permit movement of the liftgate. See Fig 1 .
- Move the liftgate to the desired position and tighten the liftgate hinge-to-liftgate bolts. See TORQUE SPECIFICATIONS .

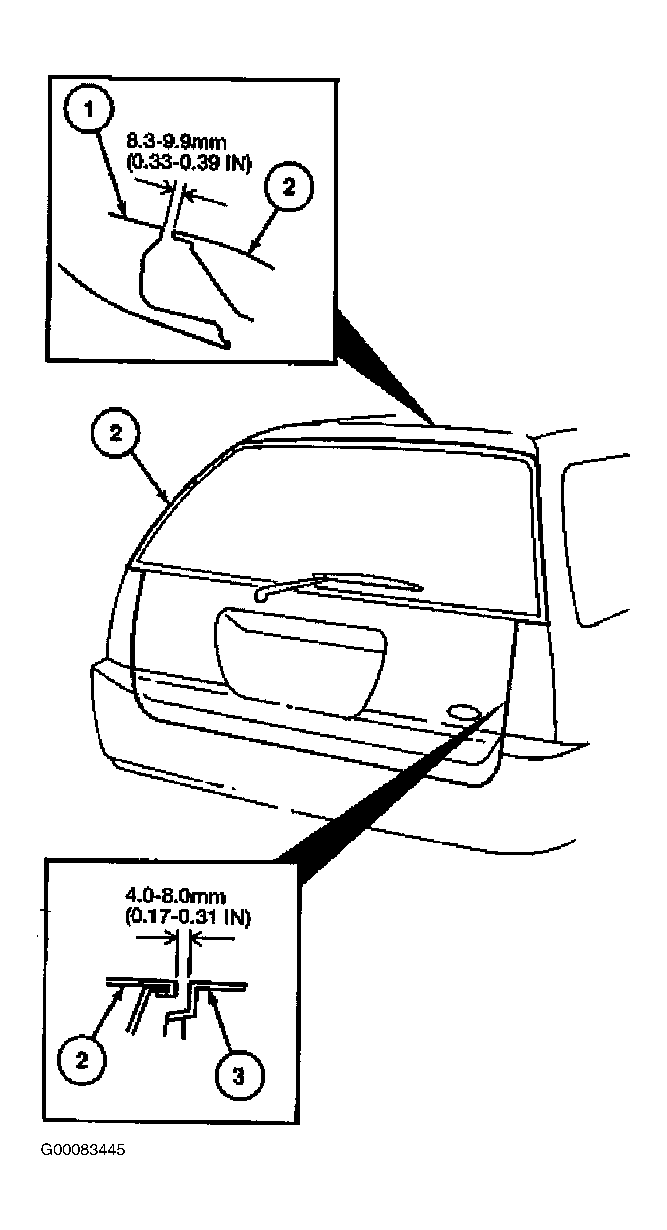

- Check the liftgate fit to be sure the clearances are within the specifications. See Fig 2 .
- Repeat this operation until the desired fit is obtained. Check the liftgate latch striker for proper liftgate closing.
NOTE:
Gaps at the top corners of the liftgate are normally wider than the gaps at the top middle of the liftgate. See Fig 2
.
