Connector Identification

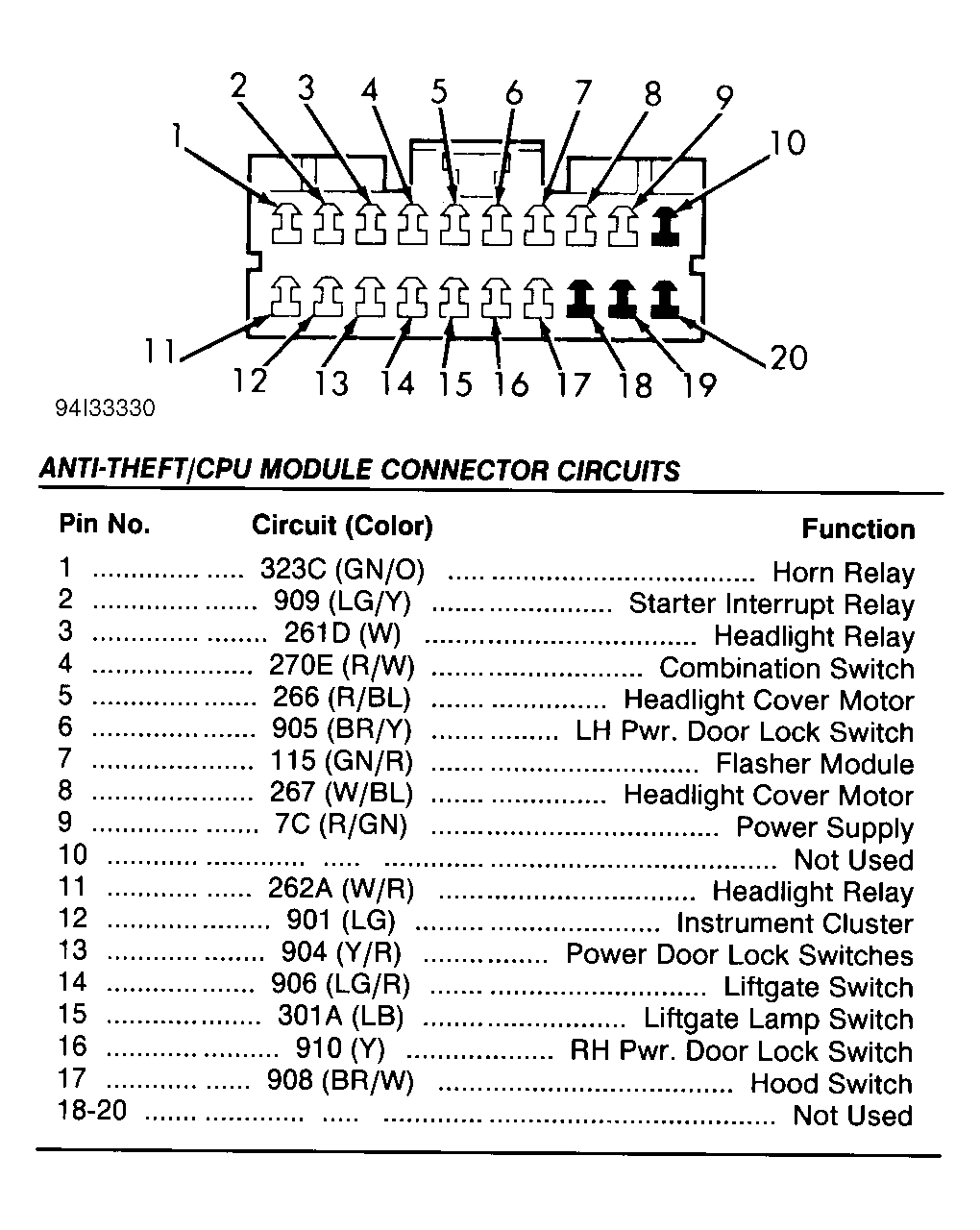

Fig 1: Identifying Anti-Theft/CPU Connector Terminals

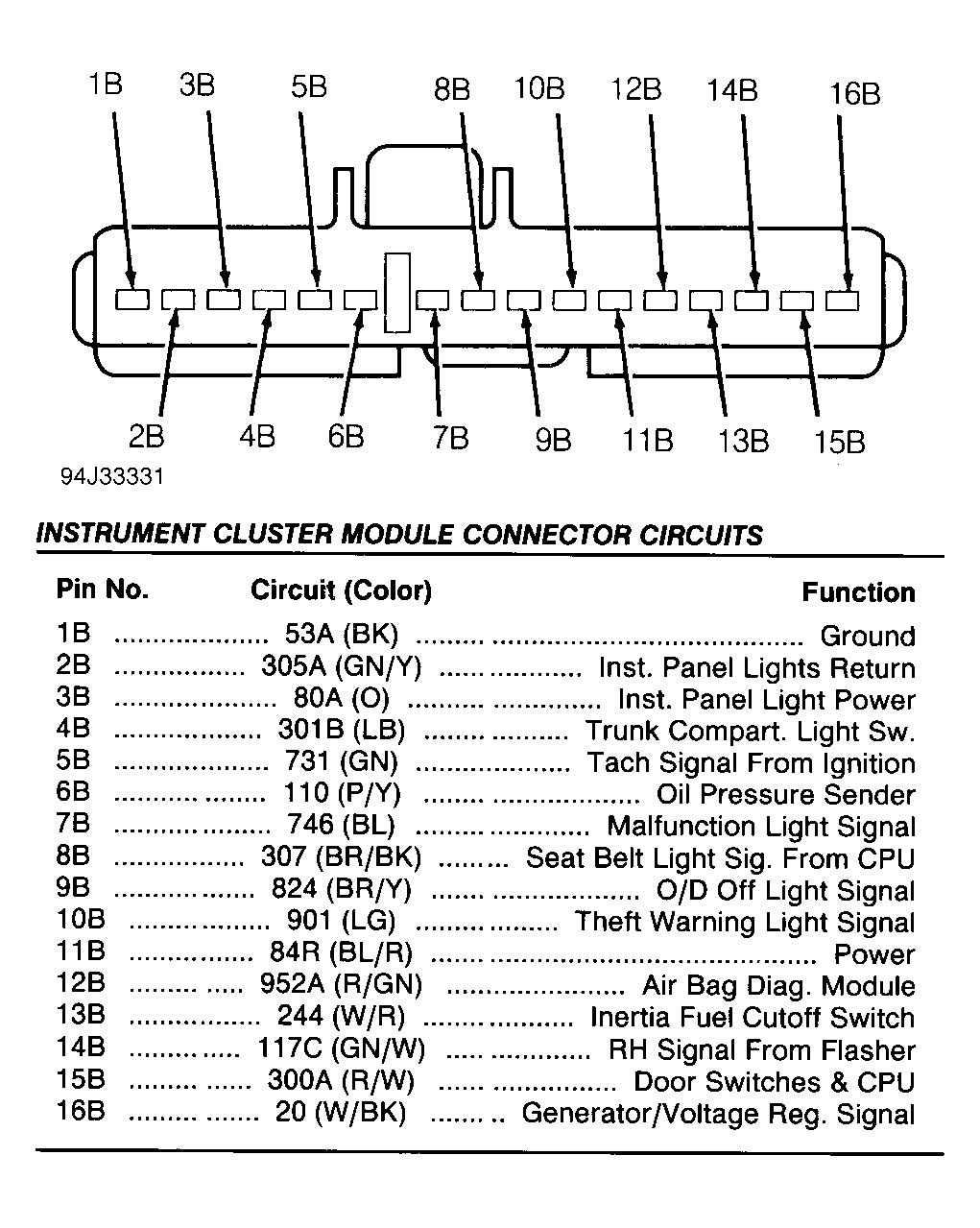

Fig 2: Identifying Instrument Cluster Module Connector Terminals

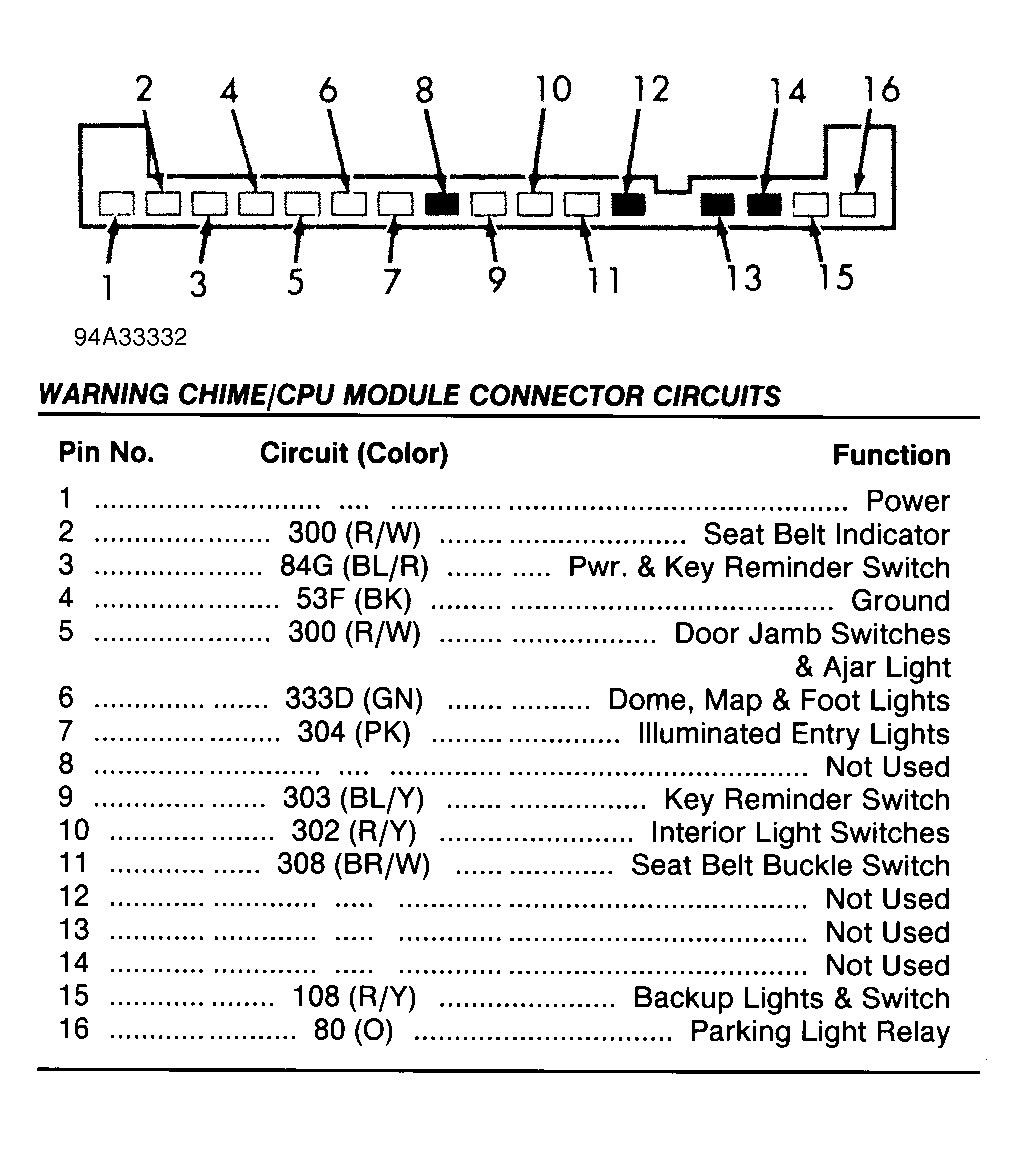

Fig 3: Identifying Warning Chime/CPU Module Connector Terminals

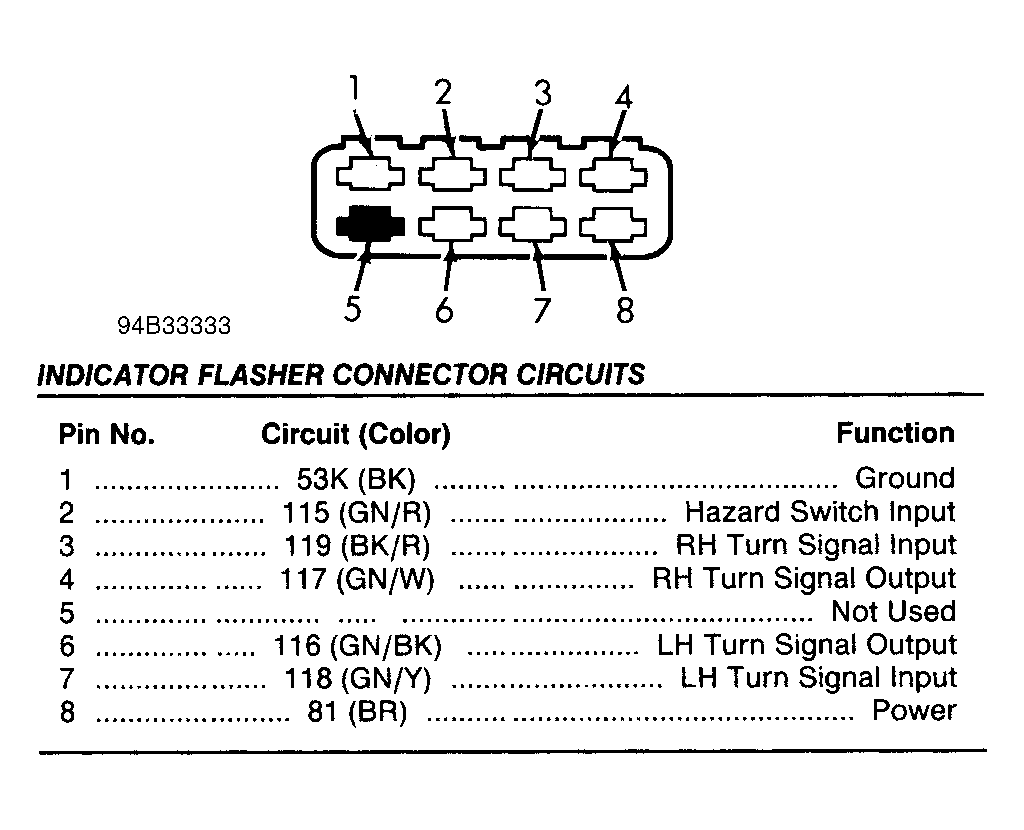

Fig 4: Identifying Flasher Module Connector Terminals

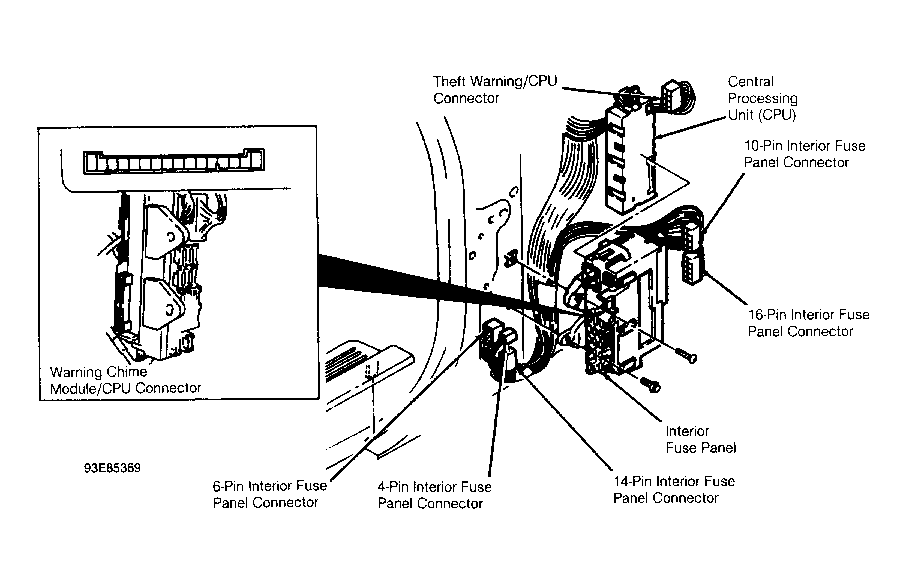

Fig 5: Locating Anti-Theft System Connectors
