A/C Refrigerant Oil Refill Capacity Chart (97-15-5)

A/C REFRIGERANT OIL REFILL CAPACITY CHART

TECHNICAL SERVICE BULLETIN

AIR CONDITIONING - OIL REFILL CAPACITY CHART - SERVICE TIP

Model(s): Ford: 1994 Tempo

1994-97 Aspire, Probe, Thunderbird

1994-98 Crown Victoria, Escort,

Mustang, Taurus

1995-98 Contour

Lincoln-Mercury: 1994 Capri, Topaz

1994-97 Cougar

1994-98 Continental, Grand Marquis,

Mark VIII, Sable, Town Car,

Tracer

1995-98 Mystique

Light Truck: 1994-96 Bronco

1994-97 Aerostar

1994-98 Econoline, Explorer,

F-150-350 Series, Ranger,

Villager

1995-98 Windstar

1997-98 Expedition, Mountaineer

1998 Navigator Bulletin No.: 97-15-5 Date: July 21, 1997

ISSUE

This TSB article will provide an easy and quick reference chart for determining the correct amount of refrigerant oil to use when servicing an A/C system.

ACTION

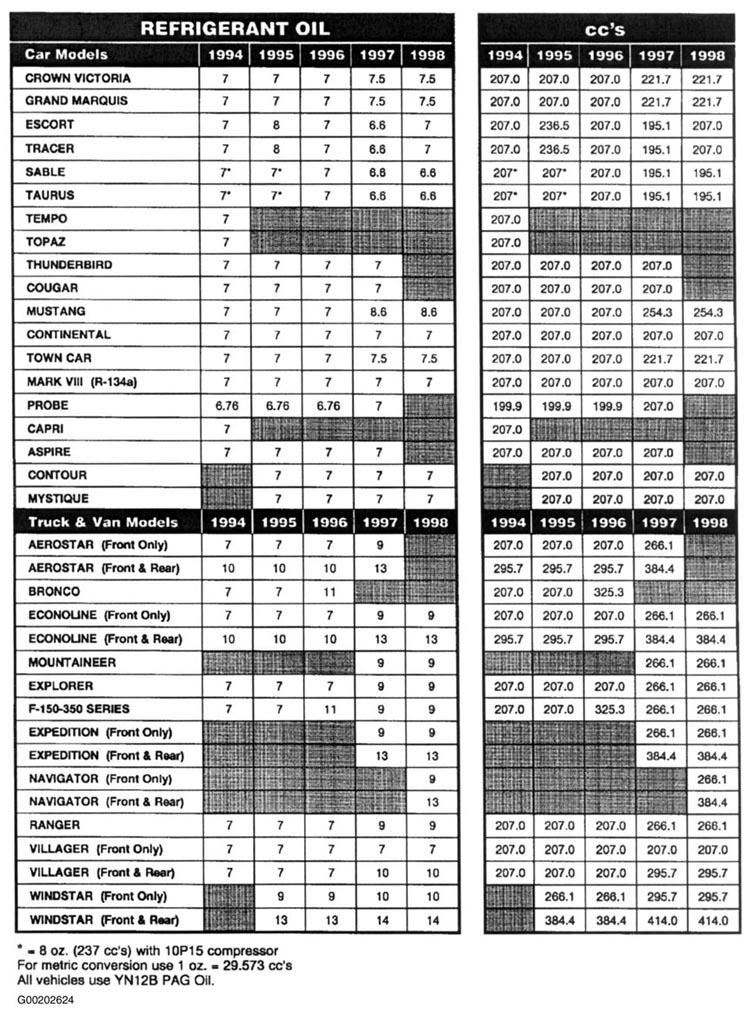

Refer to the following chart (Fig 1 ) to determine how much refrigerant oil is needed to service an A/C system.

WARRANTY INFORMATION

WARRANTY STATUS: Information Only.

OASIS CODES: 208000, 208200, 208999
