Connector Identification

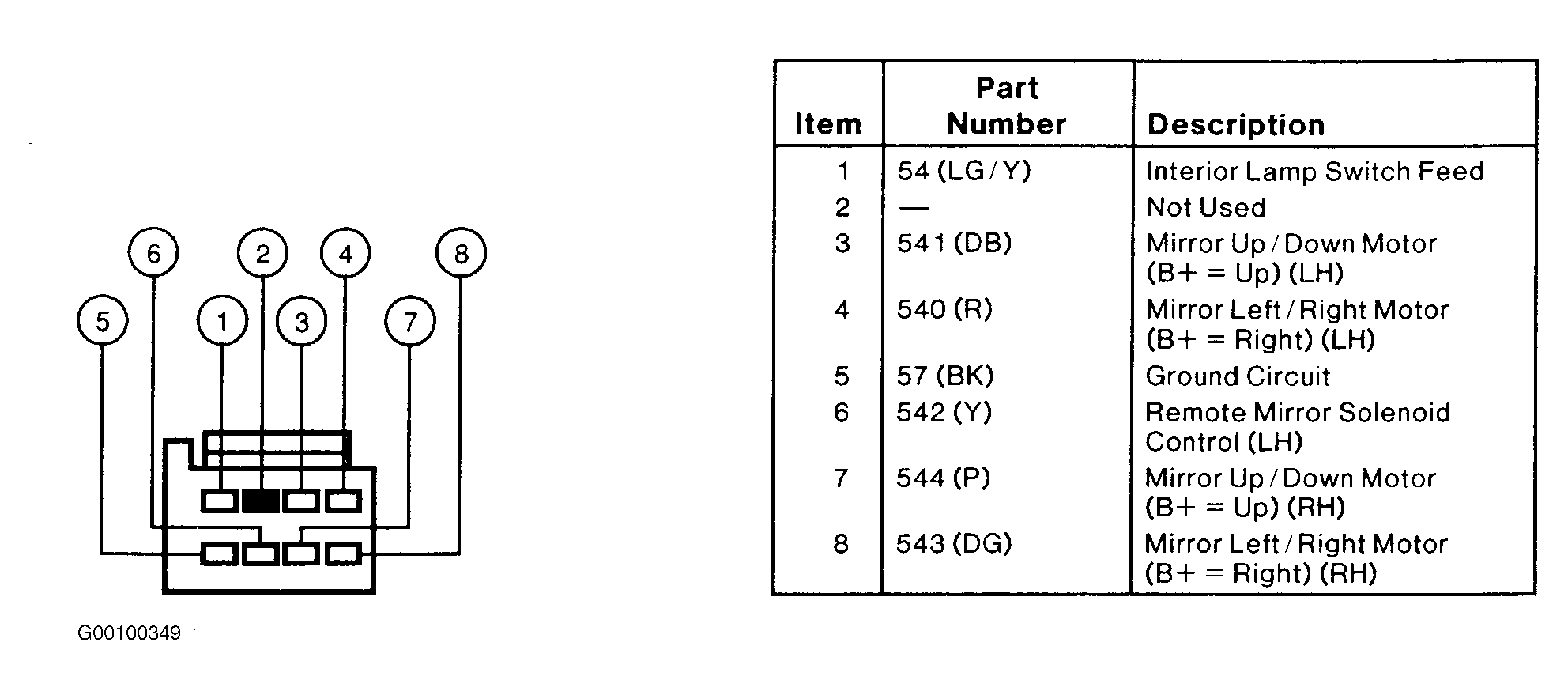

Fig 1: Identifying Power Mirror Switch Terminals (Econoline)

Courtesy of FORD MOTOR CO.

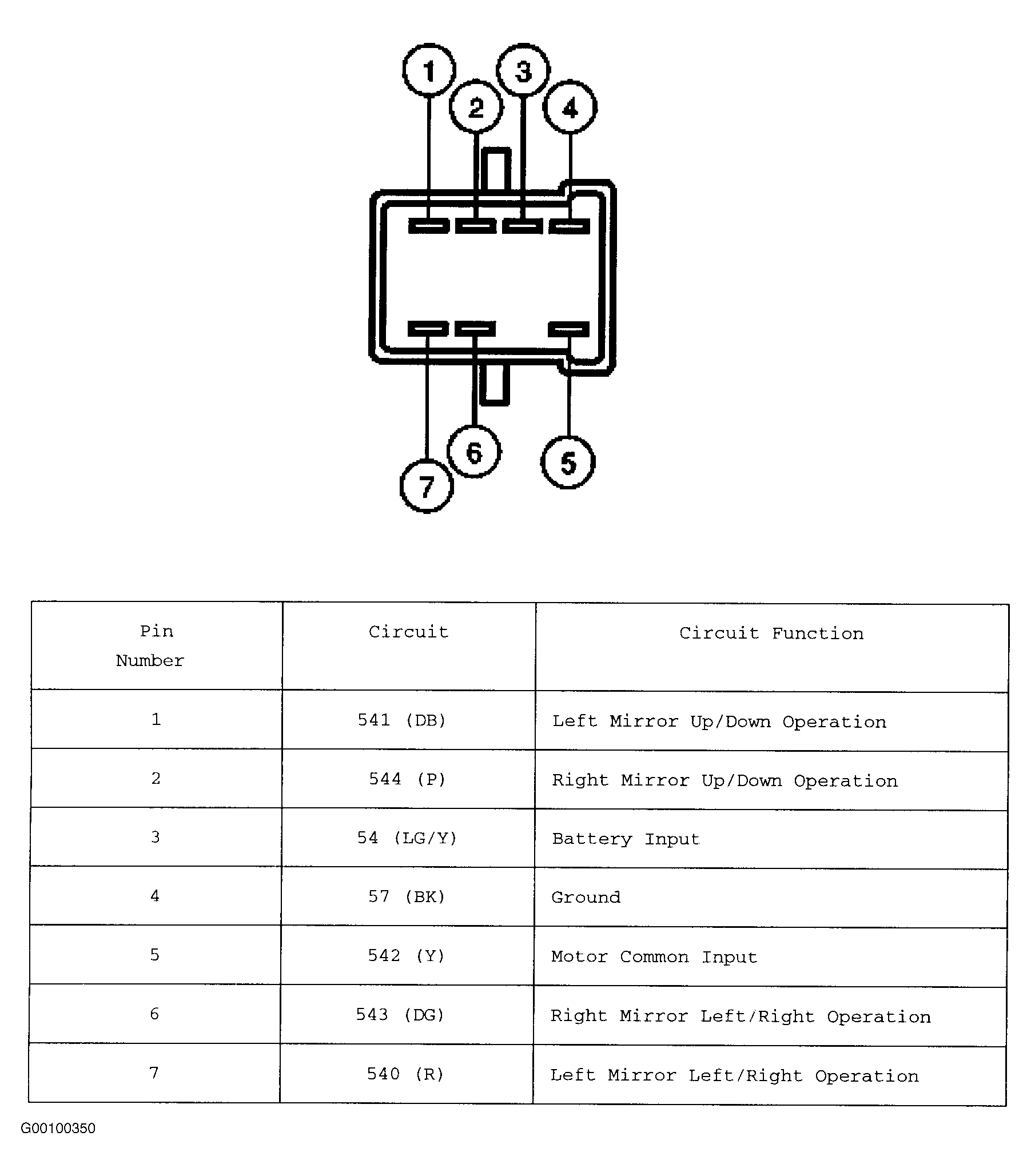

Fig 2: Identifying Power Mirror Switch Terminals (RV Conversion Van)

Courtesy of FORD MOTOR CO.
