E1: Continuity Check, Switch Neutral

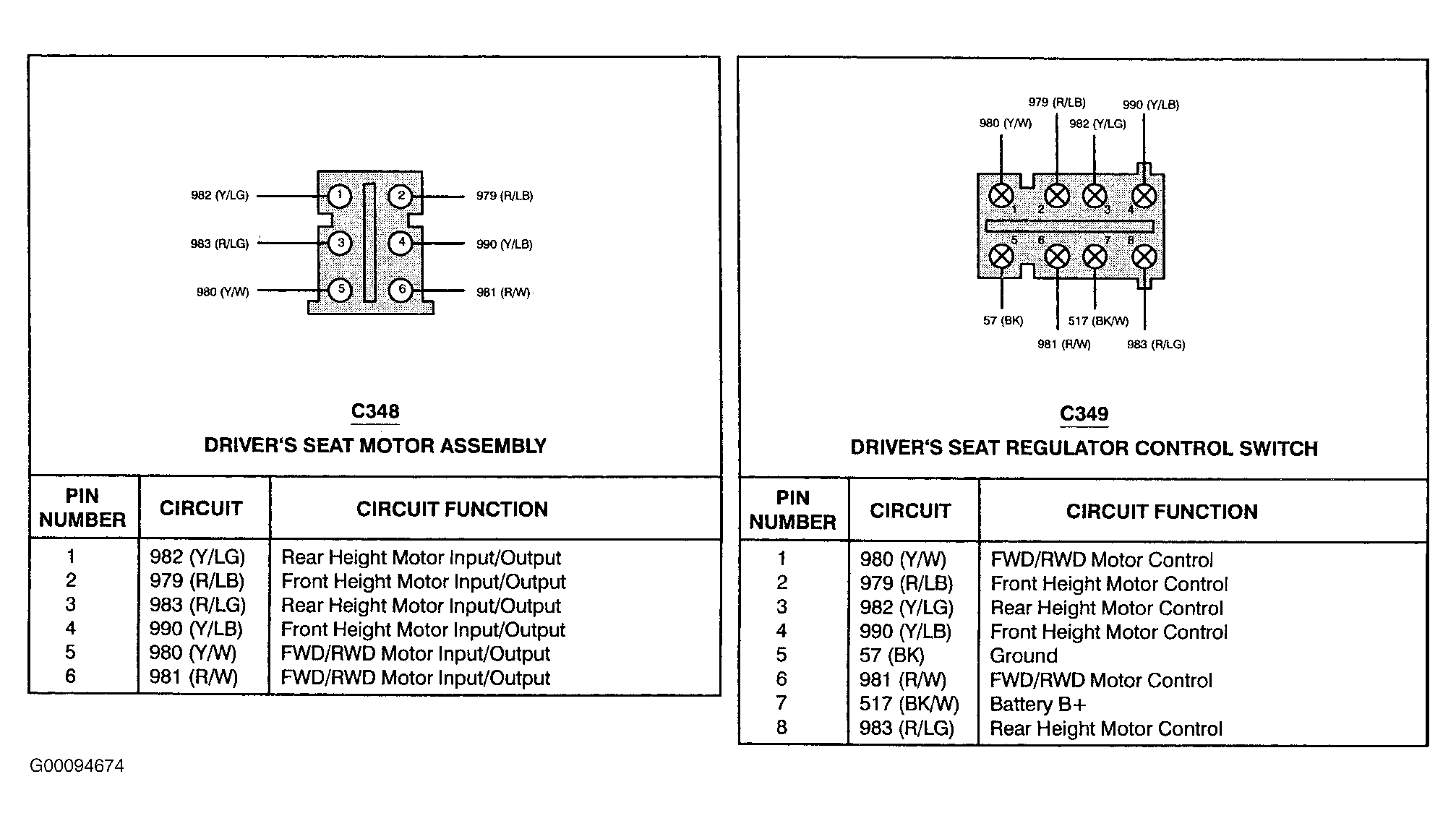

Using test leads of a self-powered test light or volt-ohmmeter, check for continuity. Attach one test lead to terminal No. 3. Contact terminals No. 1, 2, 4, 5, 6, 8 for one at a time. See WIRING DIAGRAMS  . See Figure .
