Diagnostic Trouble Code Reference Charts

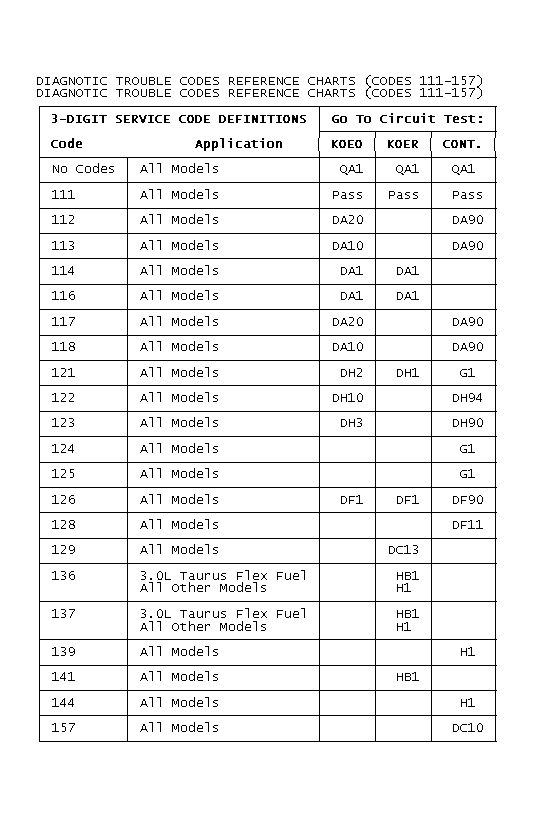

Fig 1: Diagnostic Trouble Codes Reference Charts (Codes 111-157)

Fig 2: Diagnostic Trouble Codes Reference Charts (Codes 158-185)

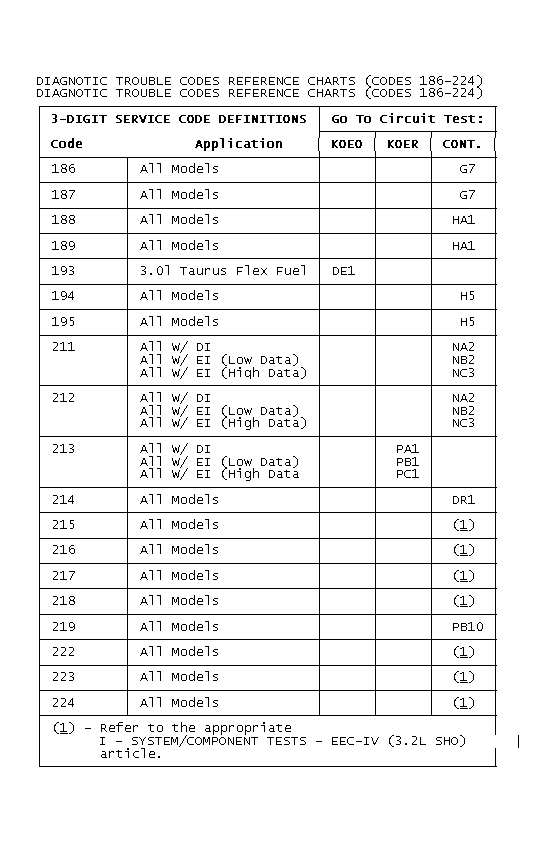

Fig 3: Diagnostic Trouble Codes Reference Charts (Codes 186-224)

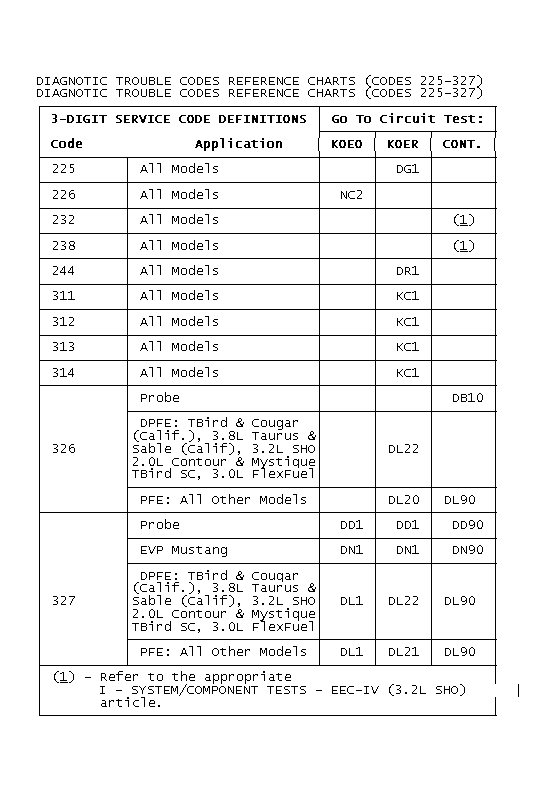

Fig 4: Diagnostic Trouble Codes Reference Charts (Codes 225-327)

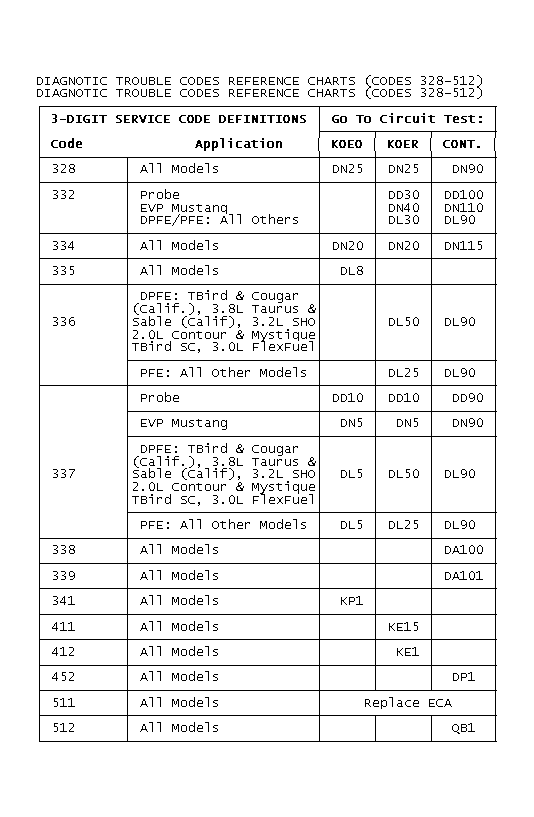

Fig 5: Diagnostic Trouble Codes Reference Charts (Codes 328-512)

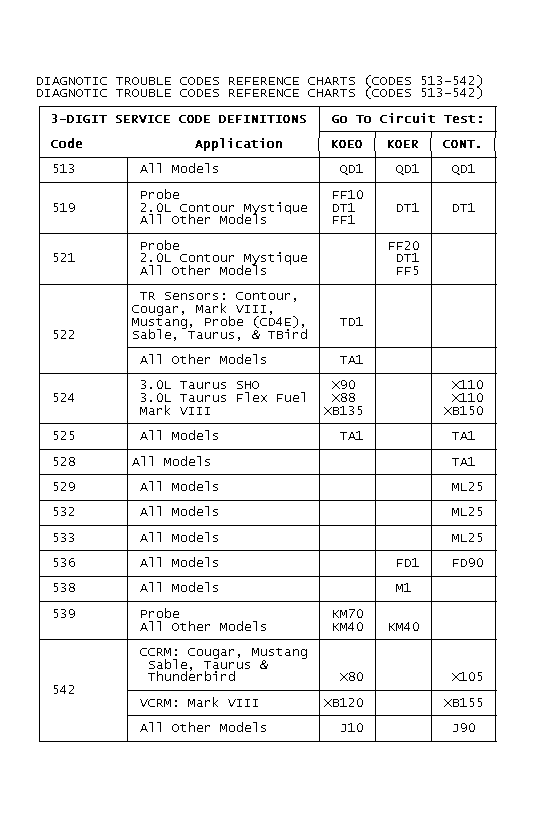

Fig 6: Diagnostic Trouble Codes Reference Charts (Codes 513-542)

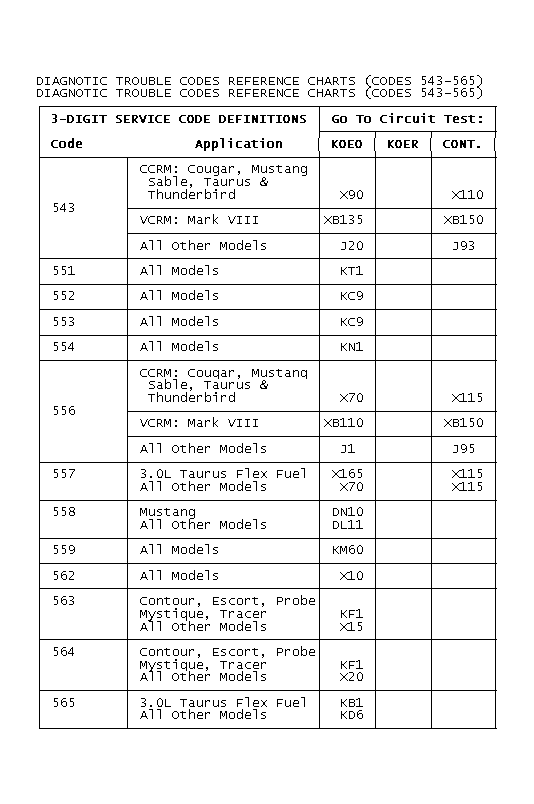

Fig 7: Diagnostic Trouble Codes Reference Charts (Codes 543-565)

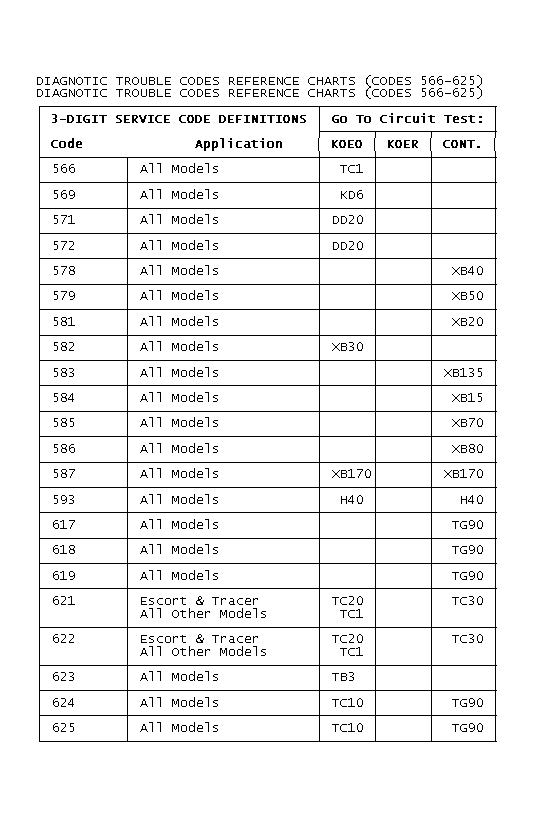

Fig 8: Diagnostic Trouble Codes Reference Charts (Codes 566-625)

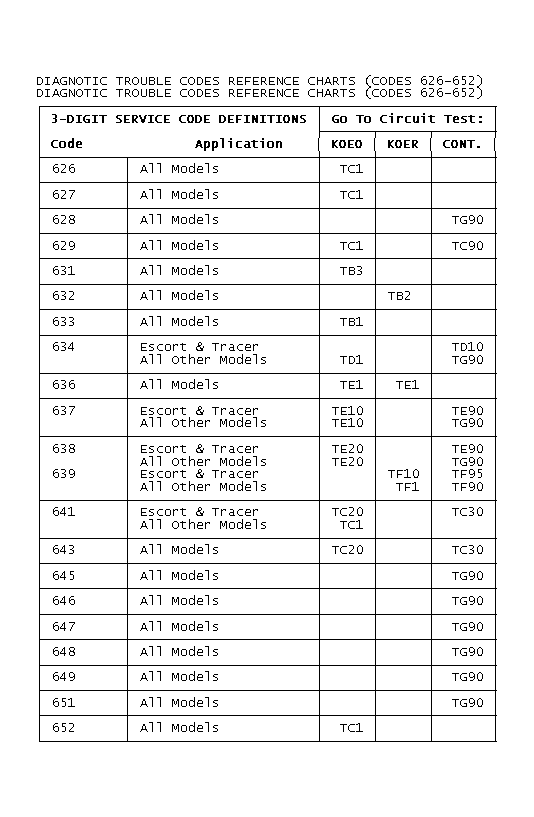

Fig 9: Diagnostic Trouble Codes Reference Charts (Codes 626-652)

Fig 10: Diagnostic Trouble Codes Reference Charts (Codes 654-998)
