Firing Order & Timing Marks

NOTE: For firing order and timing marks, See Fig 1 .

Fig 1: Identifying Firing Order & Timing Marks

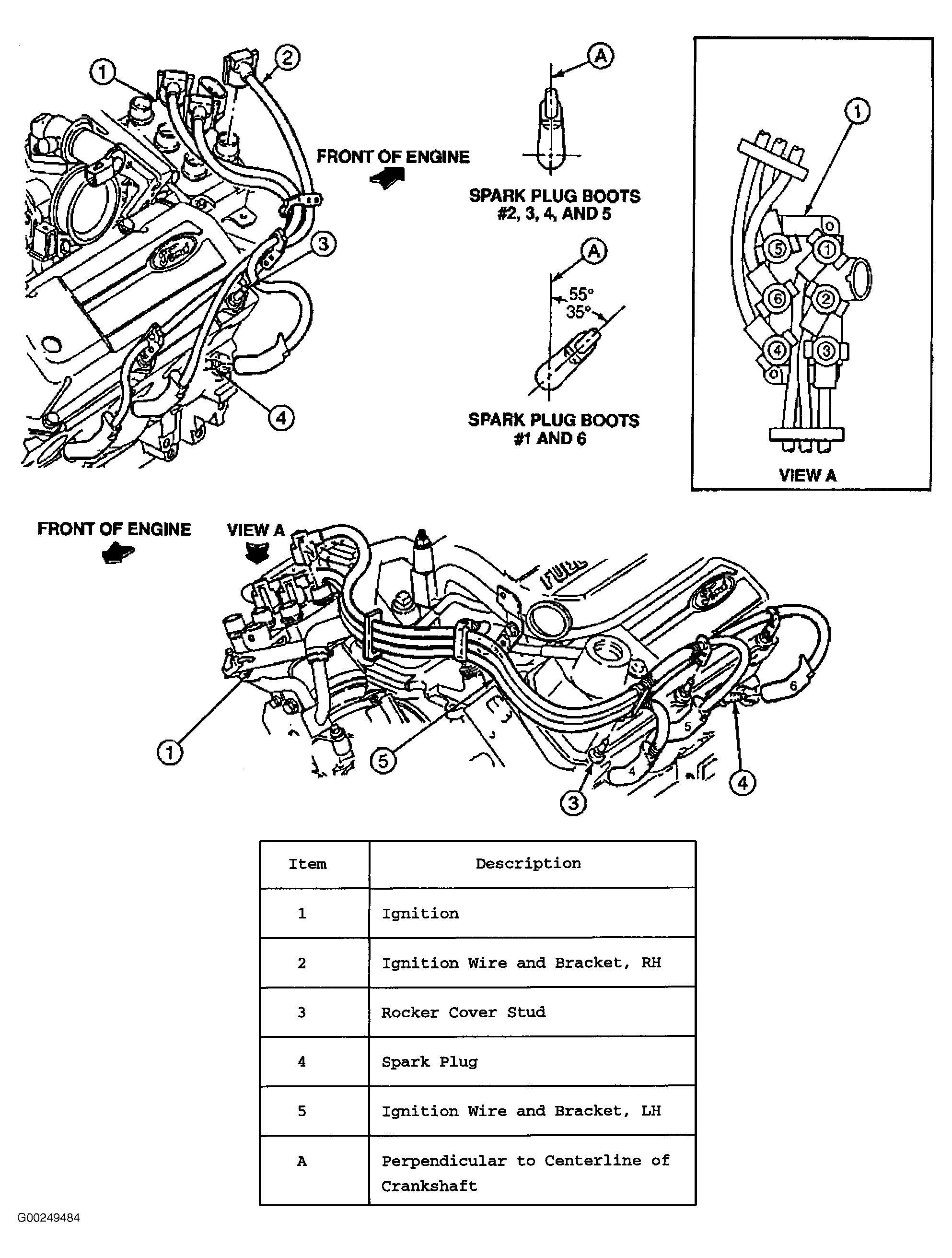

Fig 2: Identifying Spark Plug Wire Routing

Courtesy of FORD MOTOR CO.
