Service Point Locations

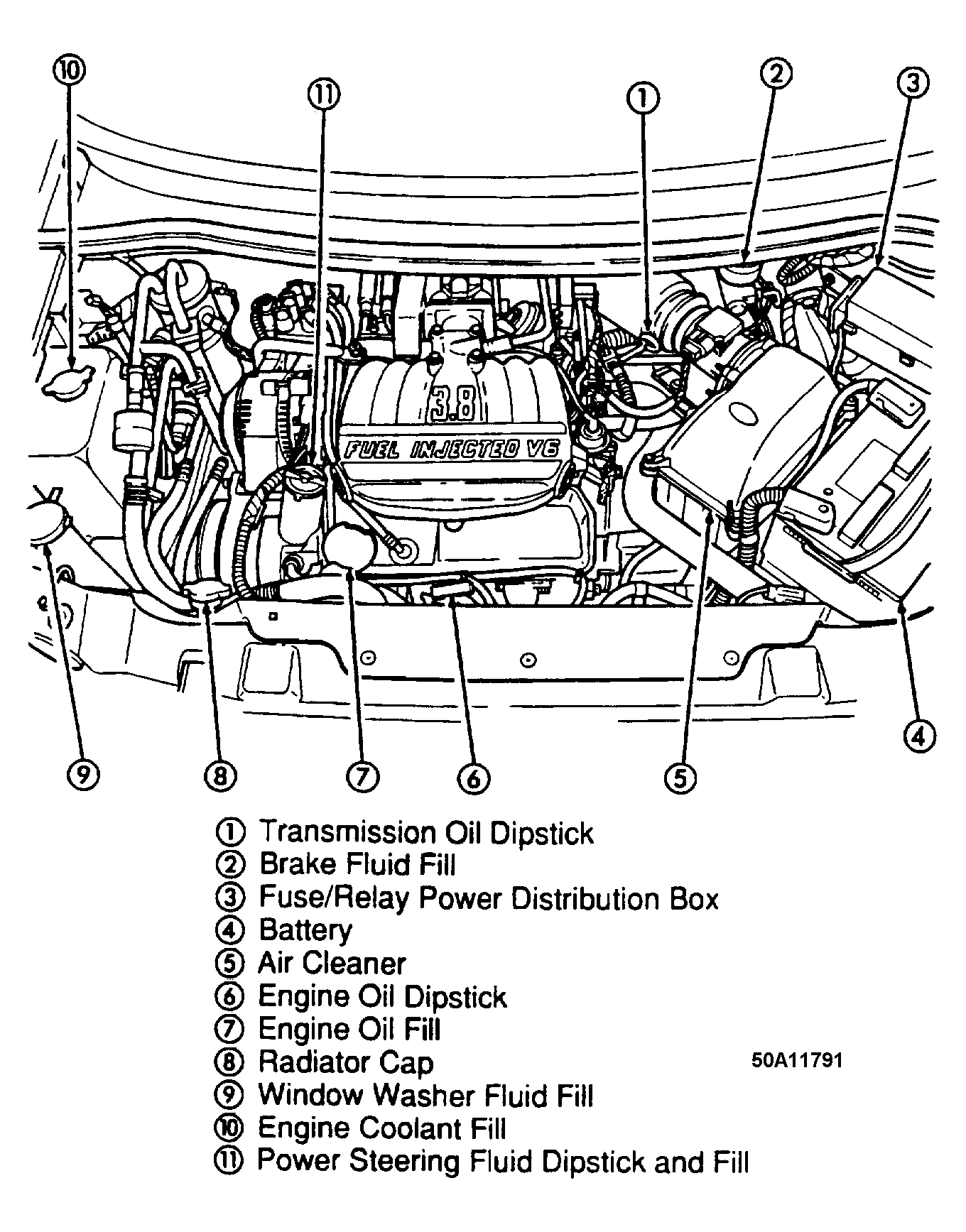

Fig 1: Service Point Locations (1995 3.8L Engine)

G50A11791

Courtesy of FORD MOTOR CO.

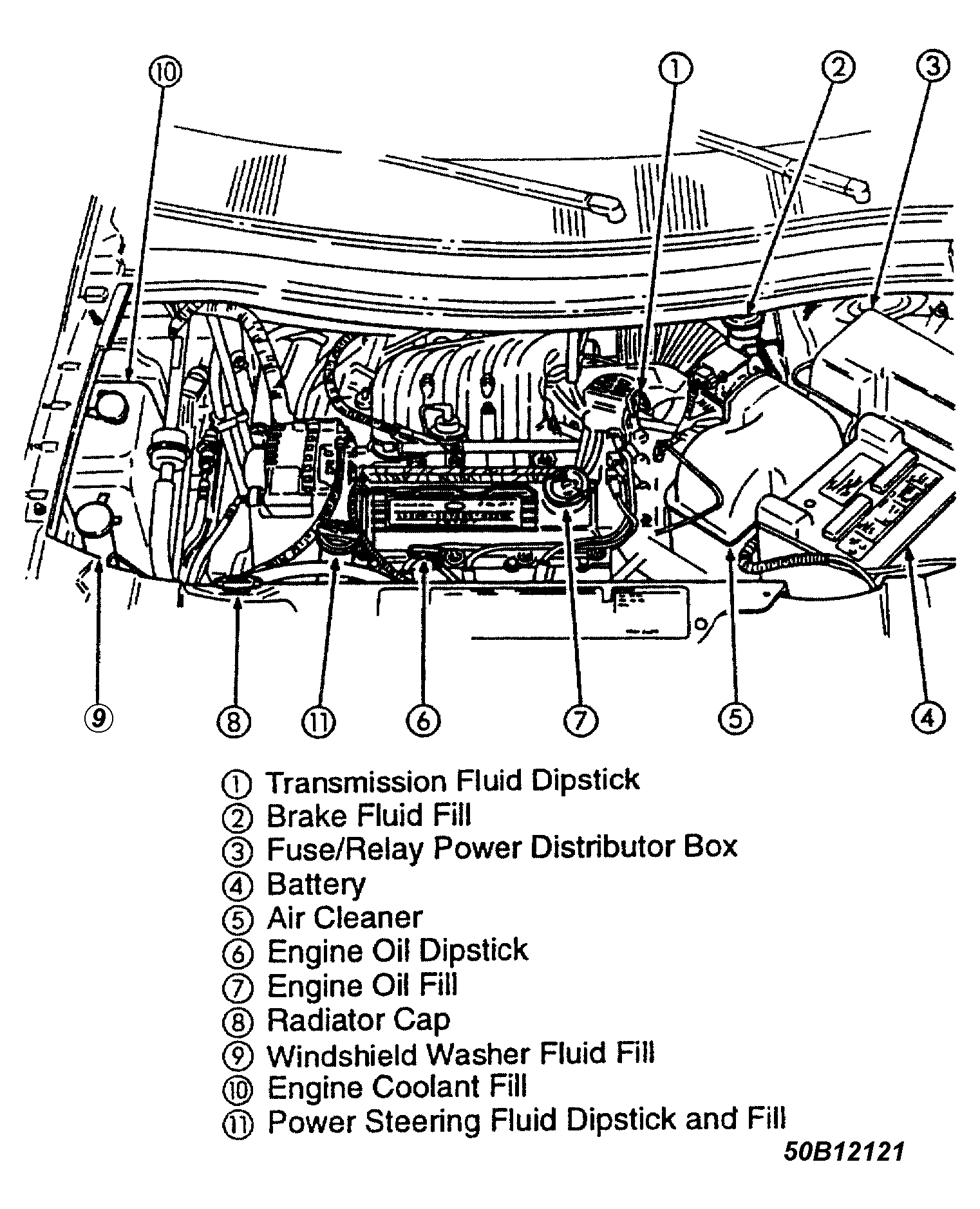

Fig 2: Service Point Locations (3.0L Engine)

G50B12121

Courtesy of FORD MOTOR CO.

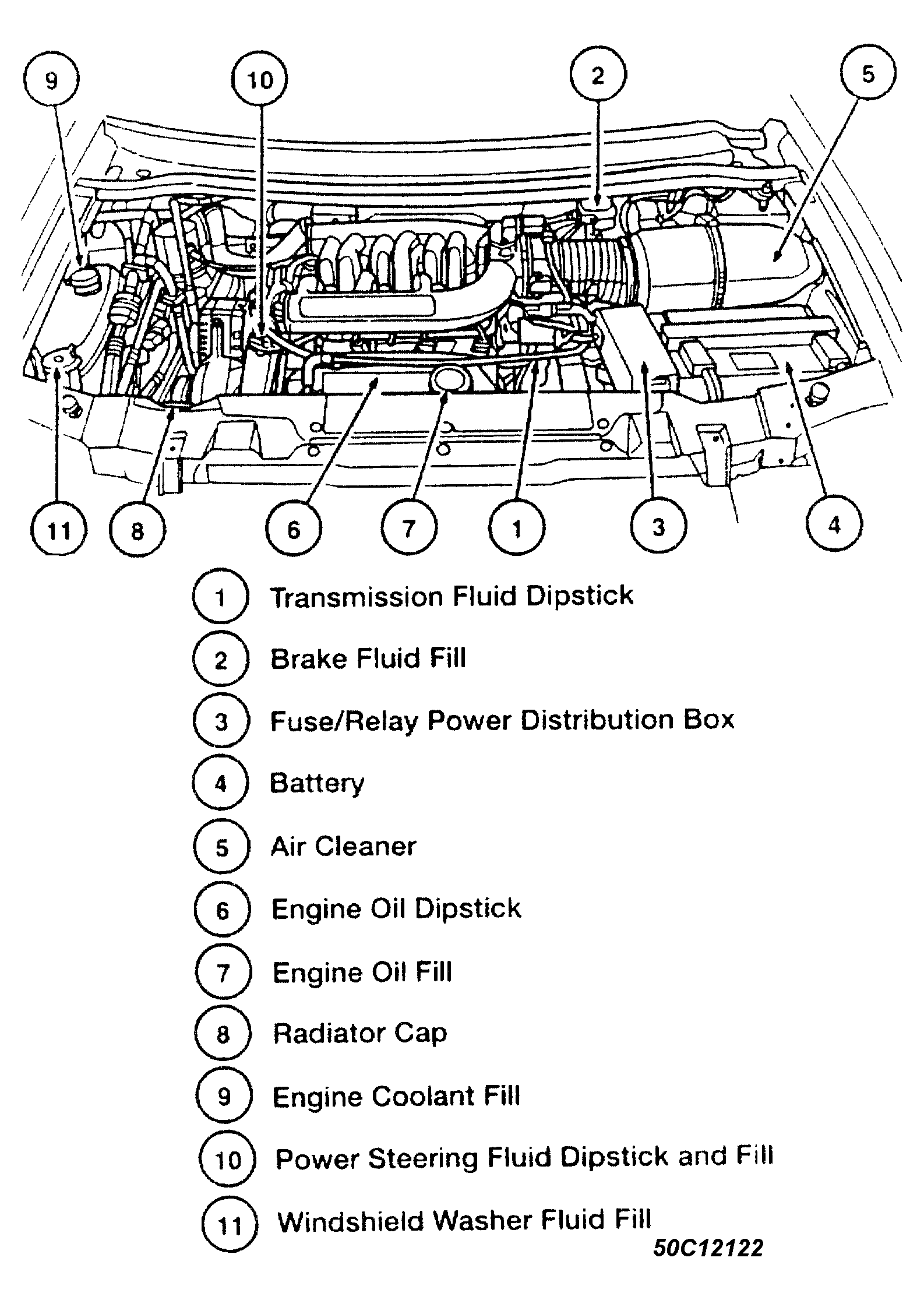

Fig 3: Service Point Locations (1996 3.8L Engine)

G50C12122

Courtesy of FORD MOTOR CO.

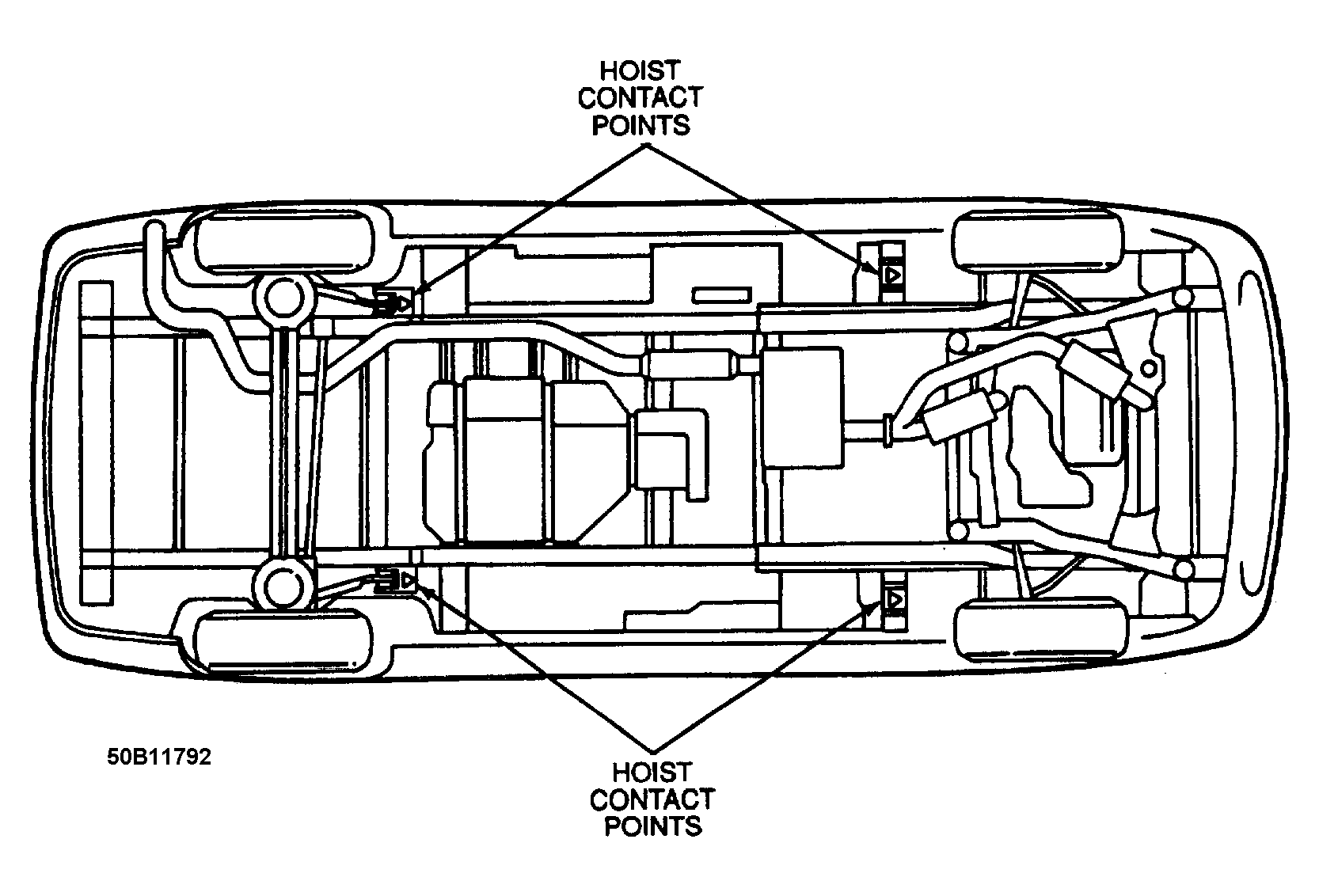

Fig 4: Hoist Point Locations

G50B11792

Courtesy of FORD MOTOR CO.
