Instrument Panel Fuse Panel

NOTE: Instrument panel fuse panel is located under driver's side of instrument panel. See Fig 1.

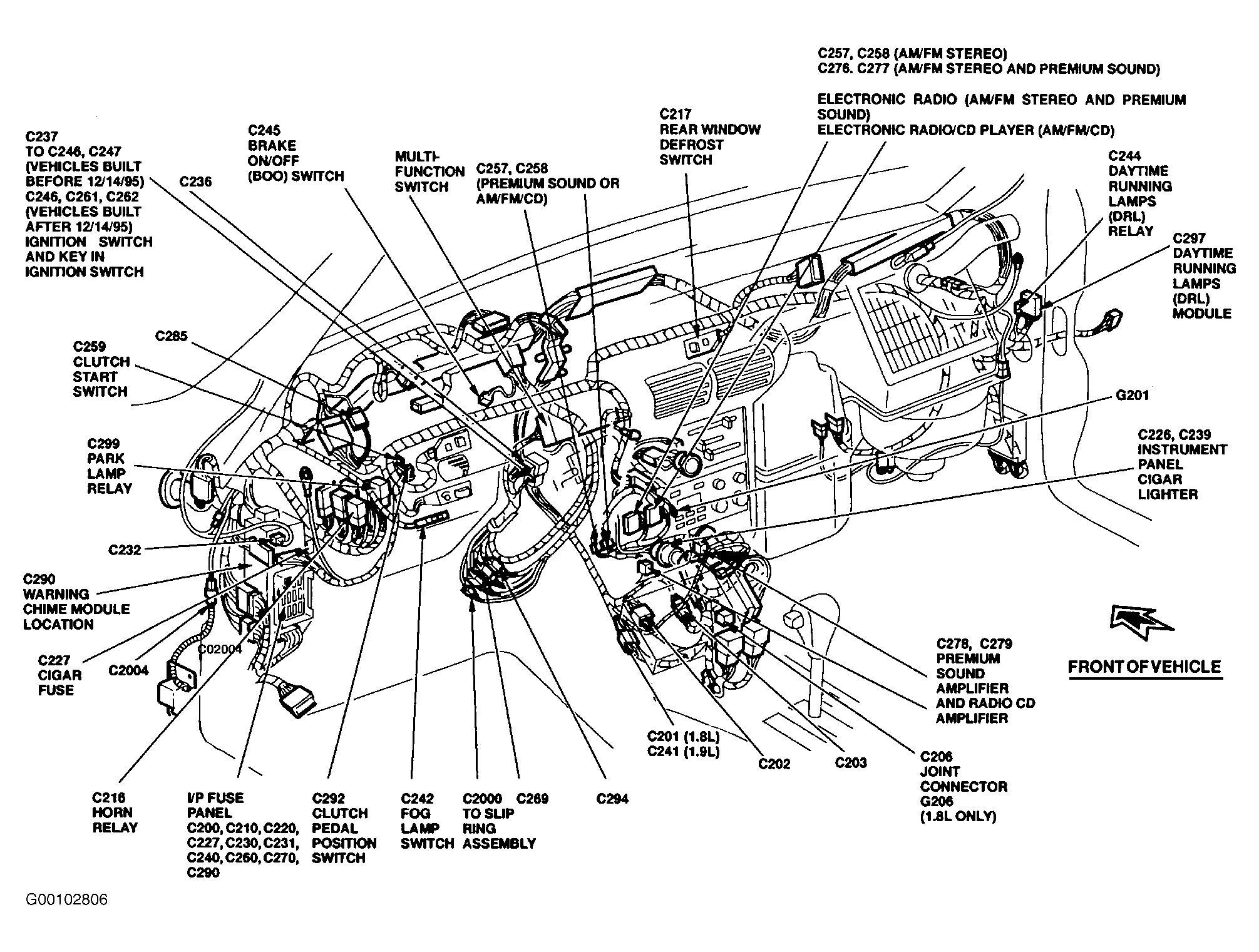

Fig 1: Locating Instrument Panel Electrical Components
G00102806Courtesy of FORD MOTOR CO.

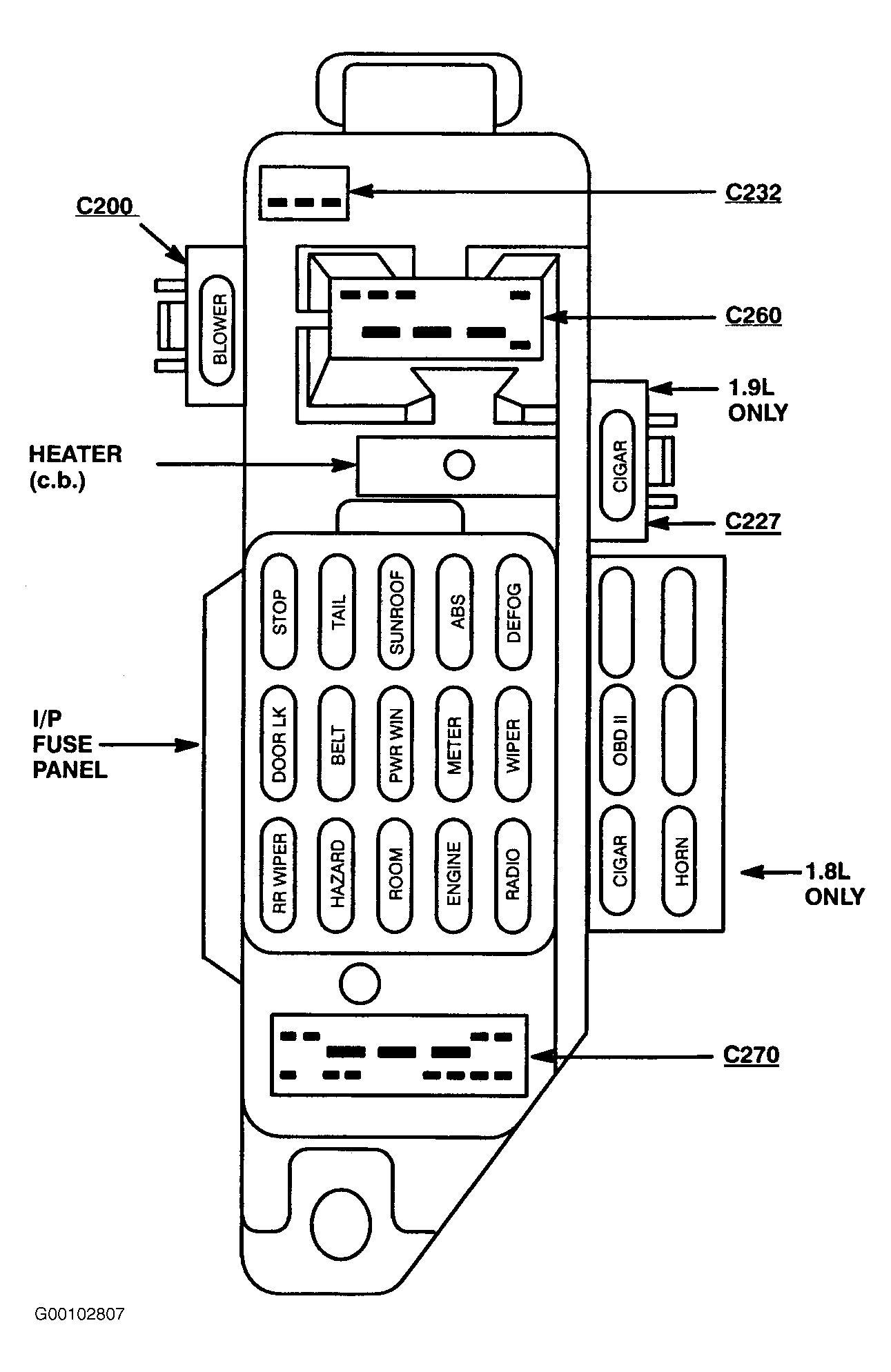

Fig 2: Identifying Instrument Panel Fuse Panel Fuses
G00102807Courtesy of FORD MOTOR CO.

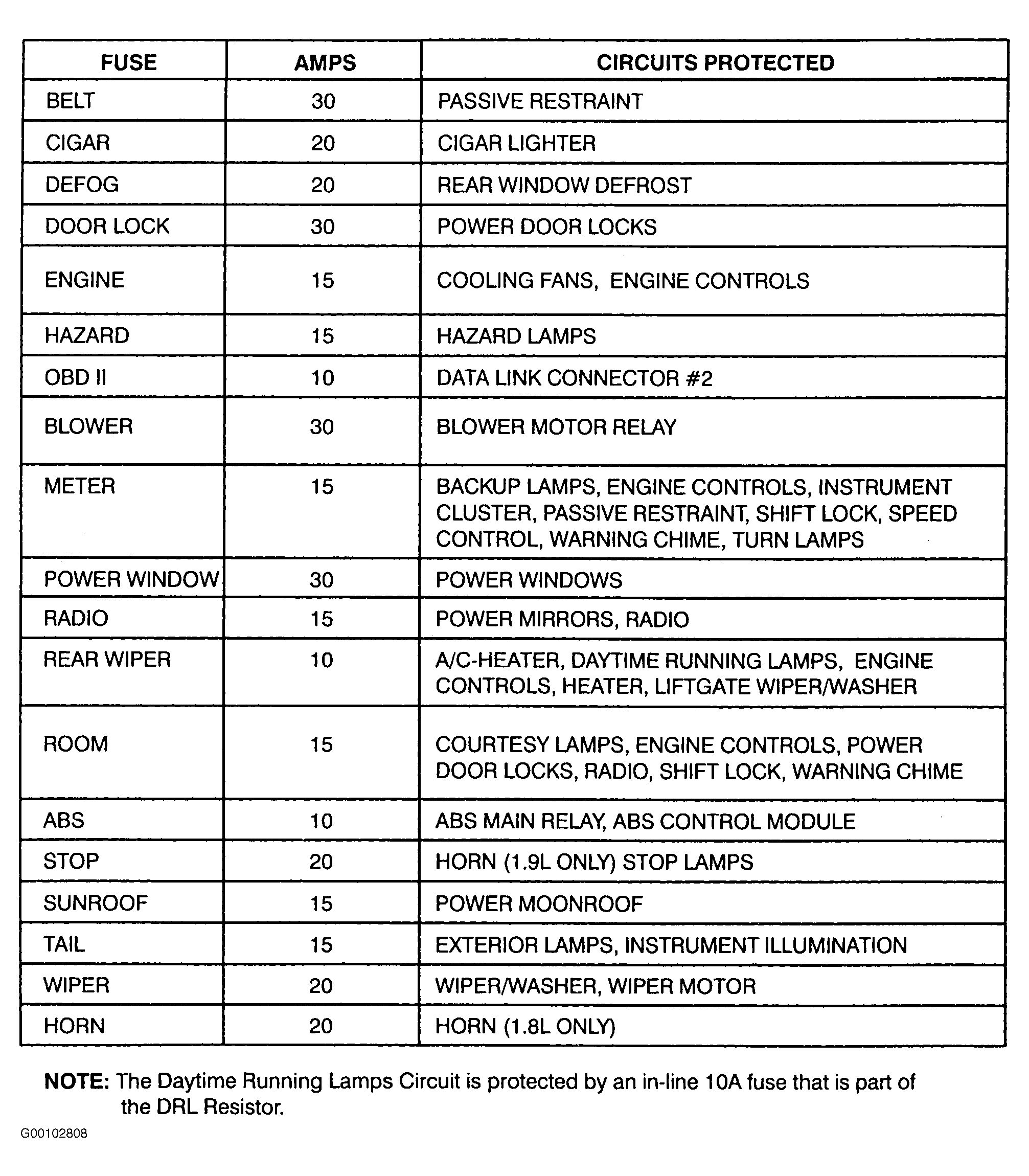

Fig 3: Instrument Panel Fuse Panel Legend
G00102808Courtesy of FORD MOTOR CO.
