Overhaul - 4R70W Automatic Transmission
›
Component Disassembly & Reassembly
›
Notes
Component Disassembly & Reassembly: Notes

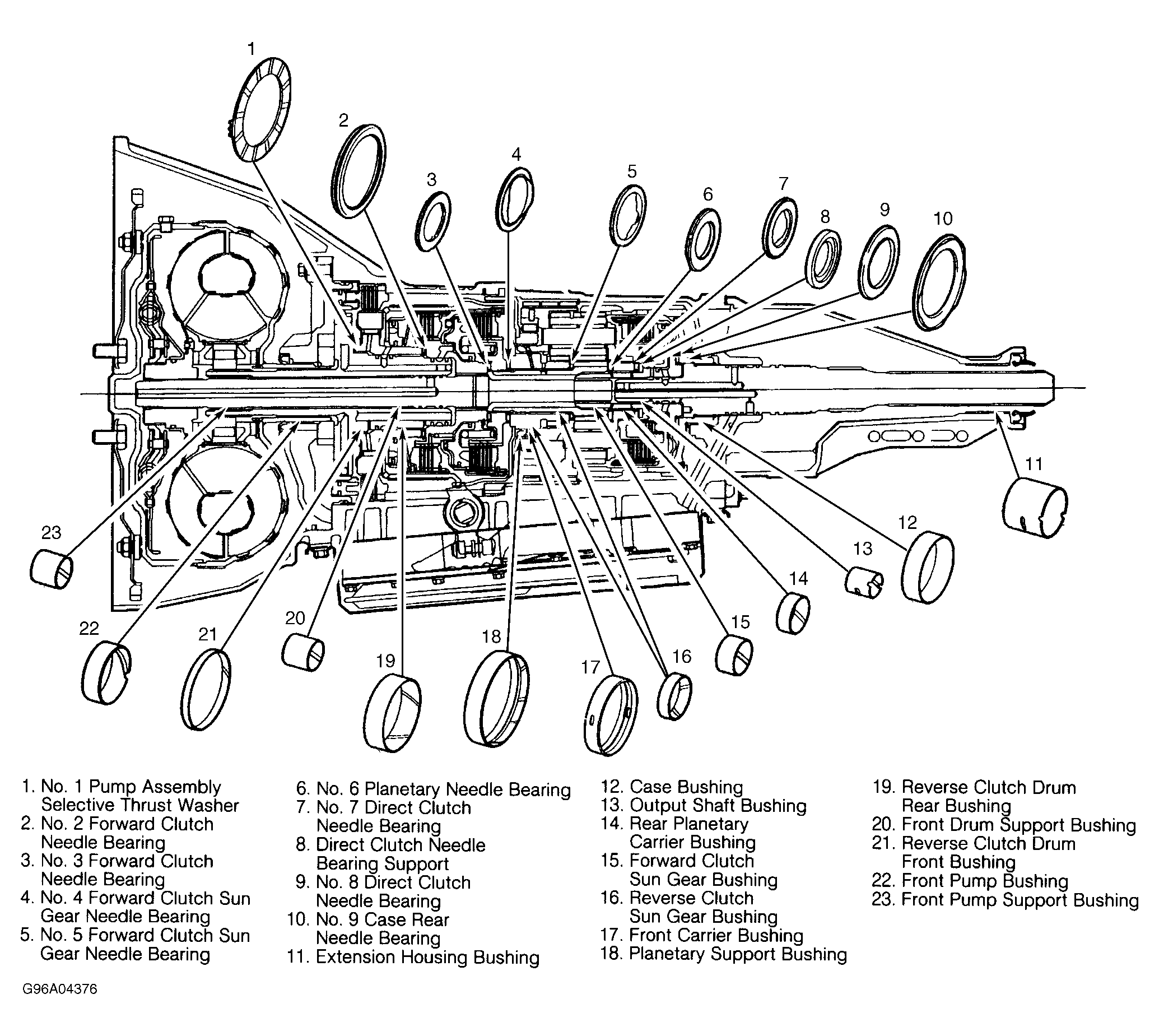

NOTE:
See
Figure
and
Figure
for exploded view of internal parts, thrust washer and needle bearing locations.
