EGR Monitor

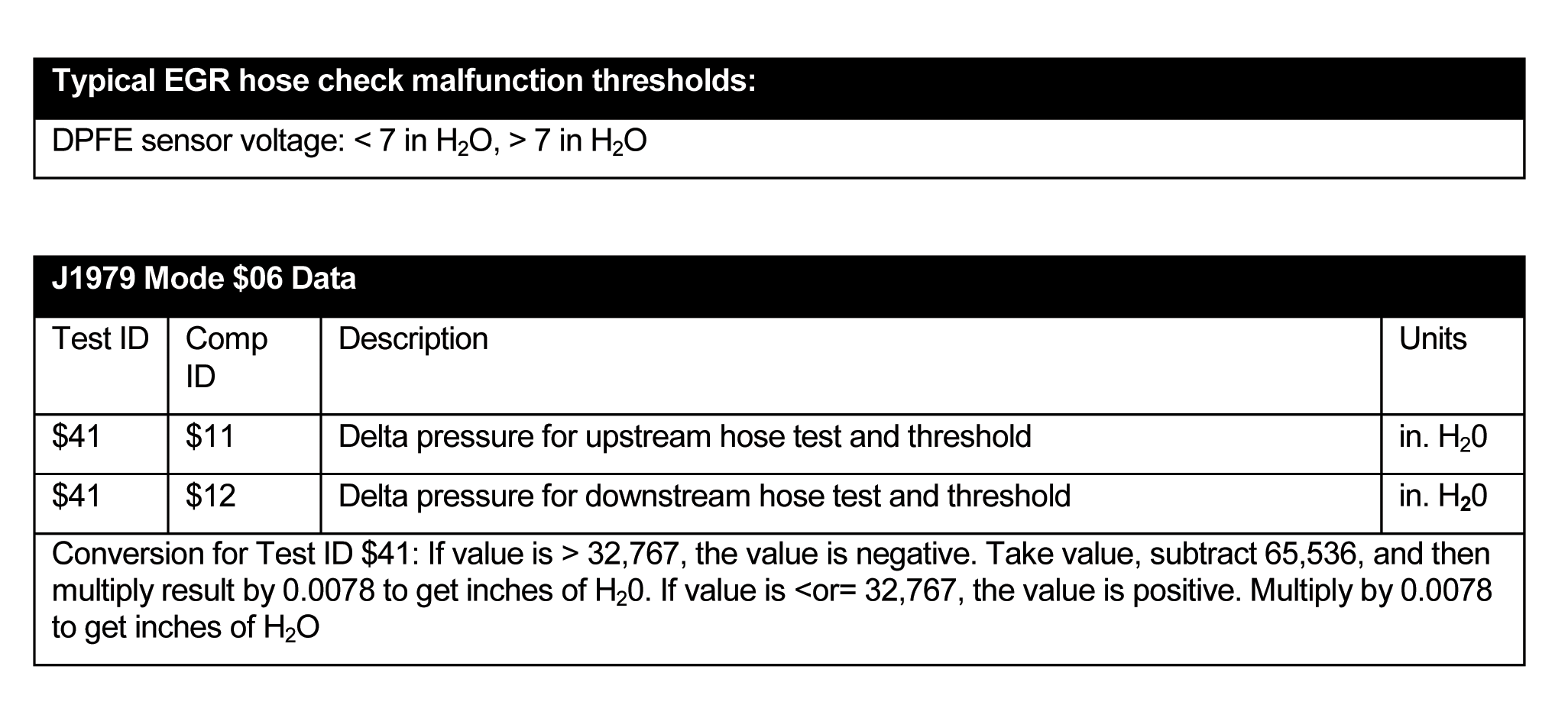

Fig 1: Mode $06 Data For EGR Hose Check Monitor
G00436482Courtesy of FORD MOTOR CO.

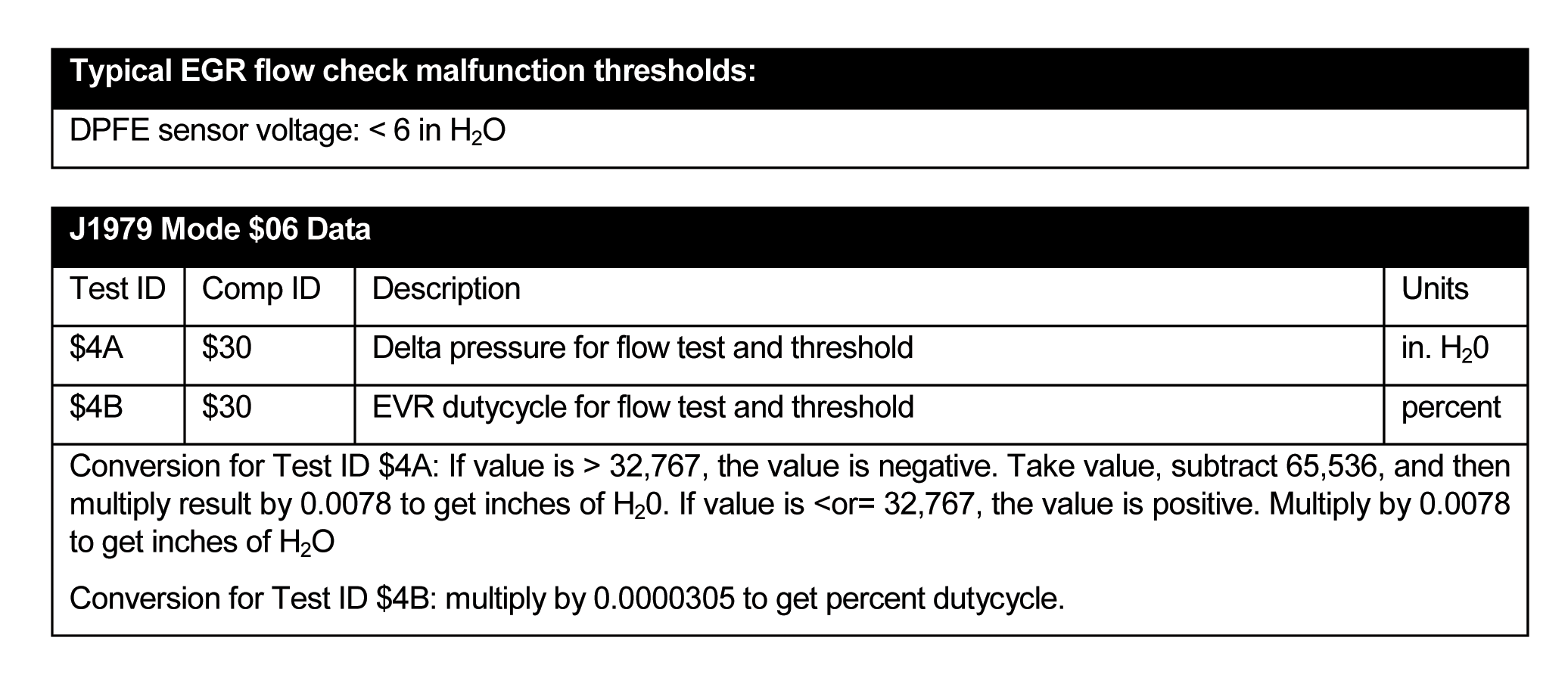

Fig 2: Mode $06 Data For EGR Flow Check Monitor
G00436483Courtesy of FORD MOTOR CO.

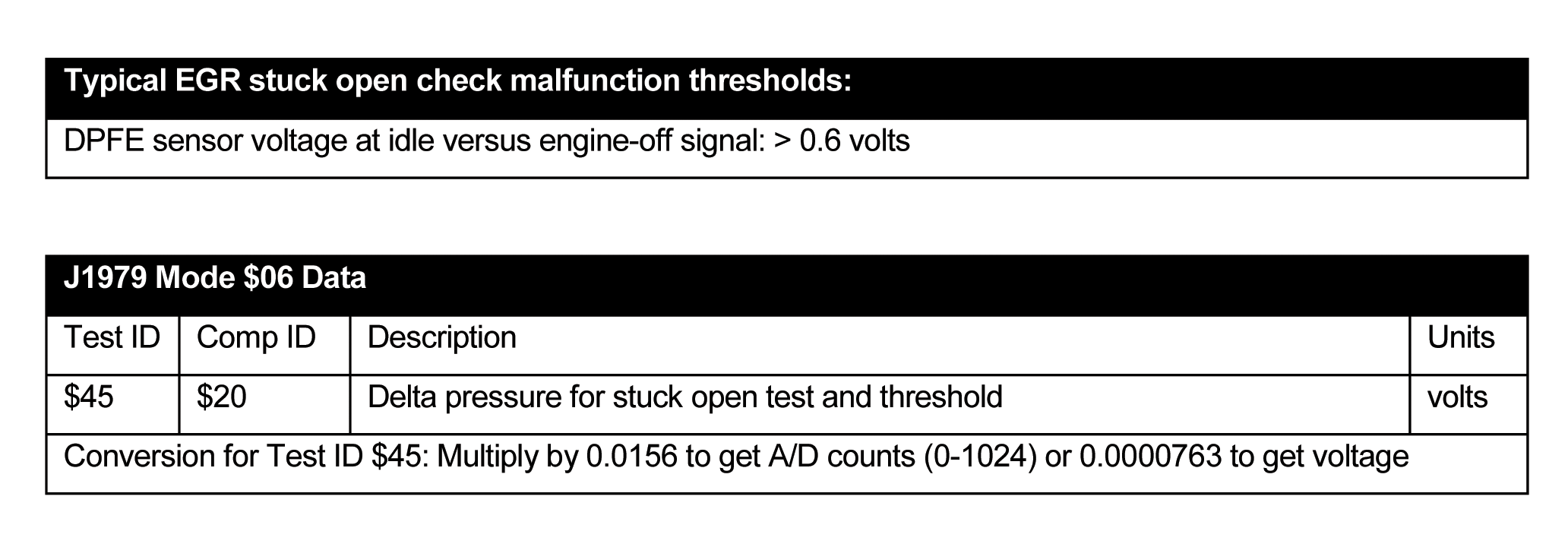

Fig 3: Mode $06 Data For EGR Stuck Open Check Monitor
G00436484Courtesy of FORD MOTOR CO.
