SAFING Sensor: Installation
WARNING: This page is about a different car, the 1997 Ford Probe. However, it is still accessible from the selected car via links, so may be relevant.

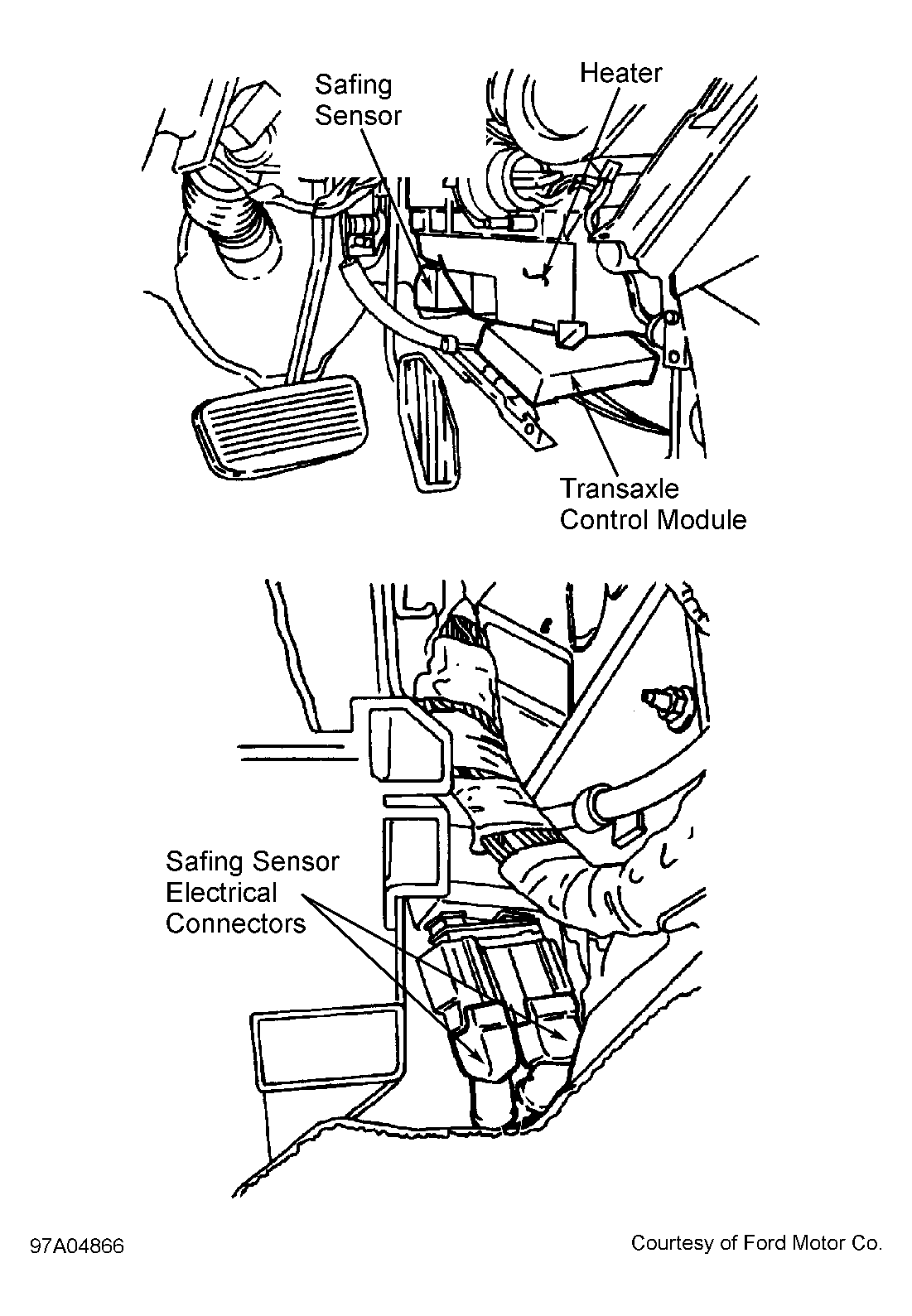

Position sensor with arrow on sensor pointing toward front of vehicle. Install sensor bolts and tighten to specification. See TORQUE SPECIFICATIONS . Reverse removal procedure to complete installation. Activate SRS. Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK .
