Section 23 (Drive Shafts): Adjustments: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 1997 Mercury Grand Marquis, 1997 Mercury Cougar, 1997 Lincoln Town Car, 1997 Lincoln Mark VIII, and 1997 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
On vehicles with electronic air suspension, suspension system must be disabled prior to hoisting or jacking. See DISABLING ELECTRONIC AIR SUSPENSION
under MAINTENANCE.

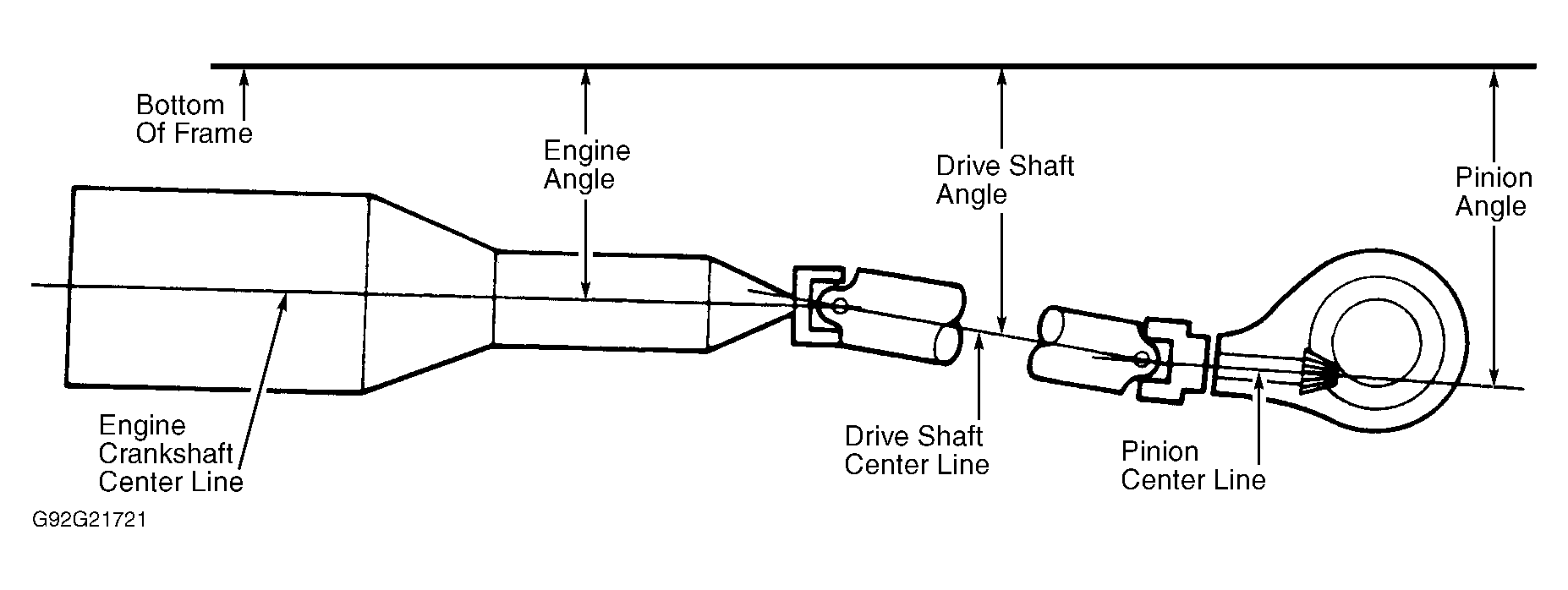

Drive shaft balance and runout can have a severe impact on driveline angularity. Driveline angularity is the angular relationship between engine crankshaft, drive shaft, and drive axle pinion. See Fig 1 . A road test must be performed to determine the source of vibration. If the vibration is determined to be the cause, the following adjustments can be performed.
