Abs Wheel Sensor Ring

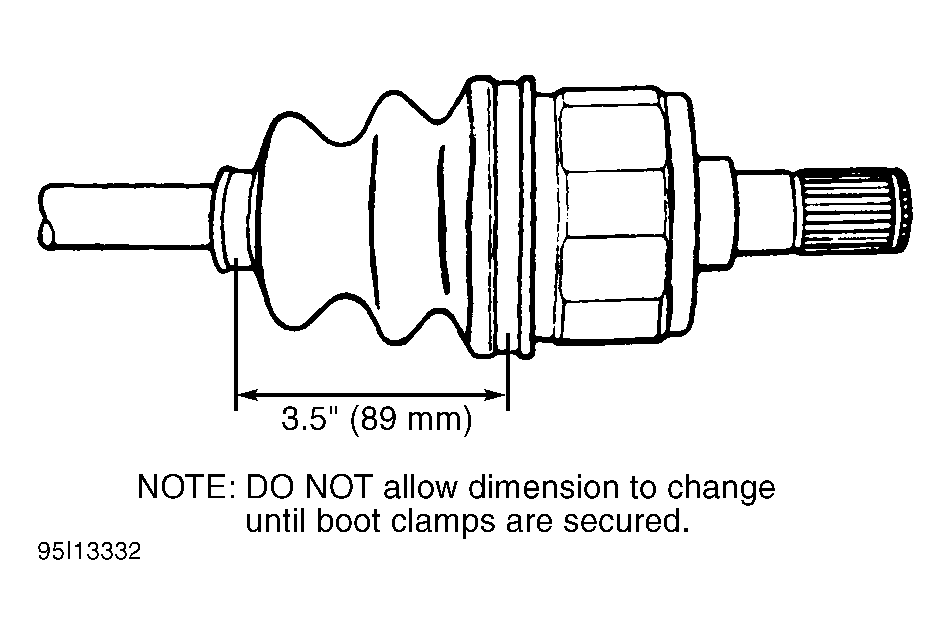

Fig 1: Measuring Plunger Joint Boot Length (Probe)

Courtesy of FORD MOTOR CO.

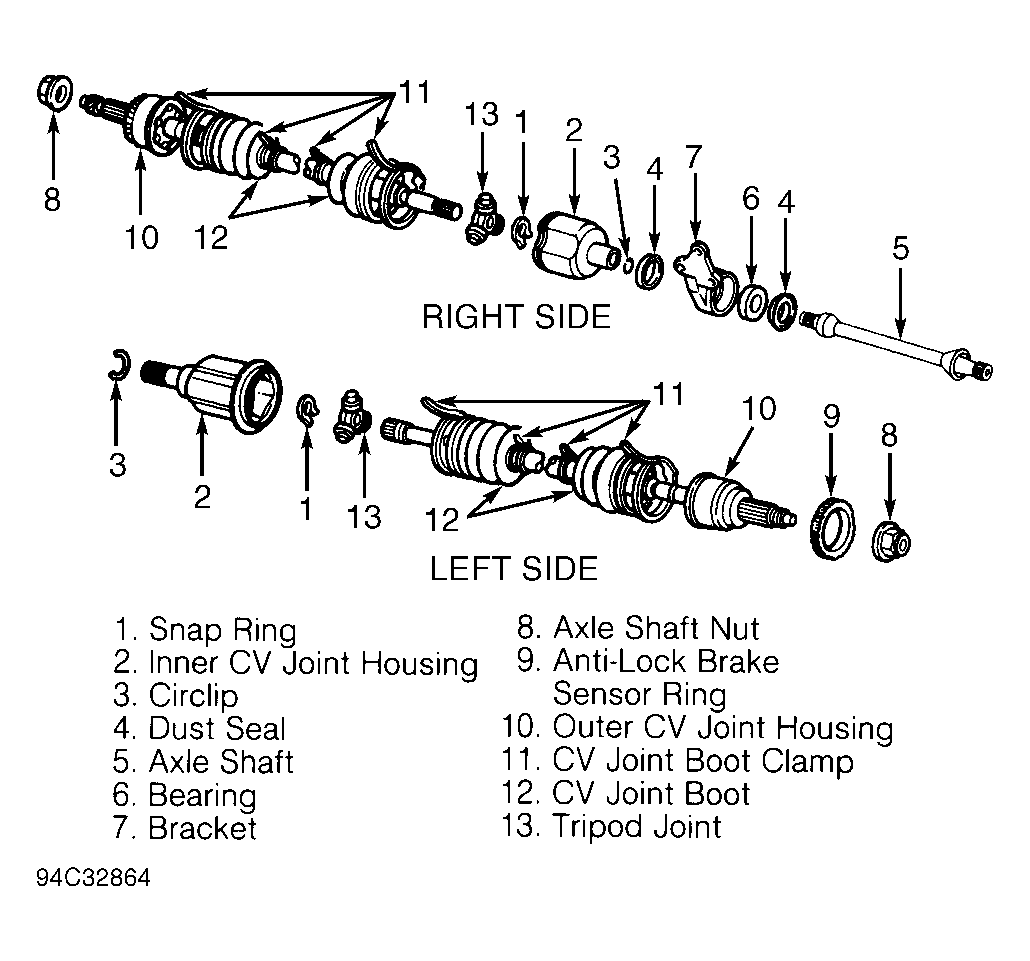

Fig 2: Exploded View Of Axle Shaft & CV Joint Assemblies (Probe A/T)

Courtesy of FORD MOTOR.

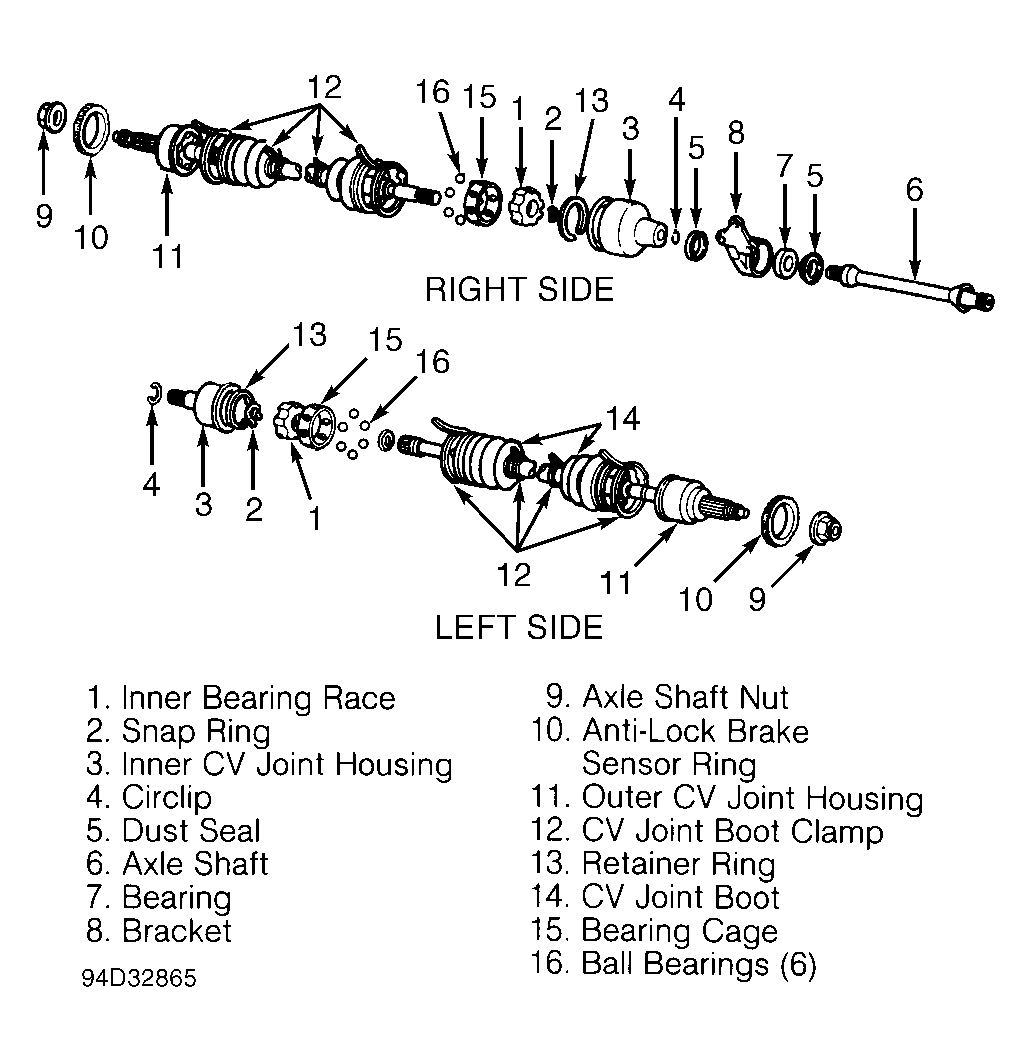

Fig 3: Exploded View Of Axle Shaft & CV Joint Assemblies (Probe M/T)

Courtesy of FORD MOTOR.

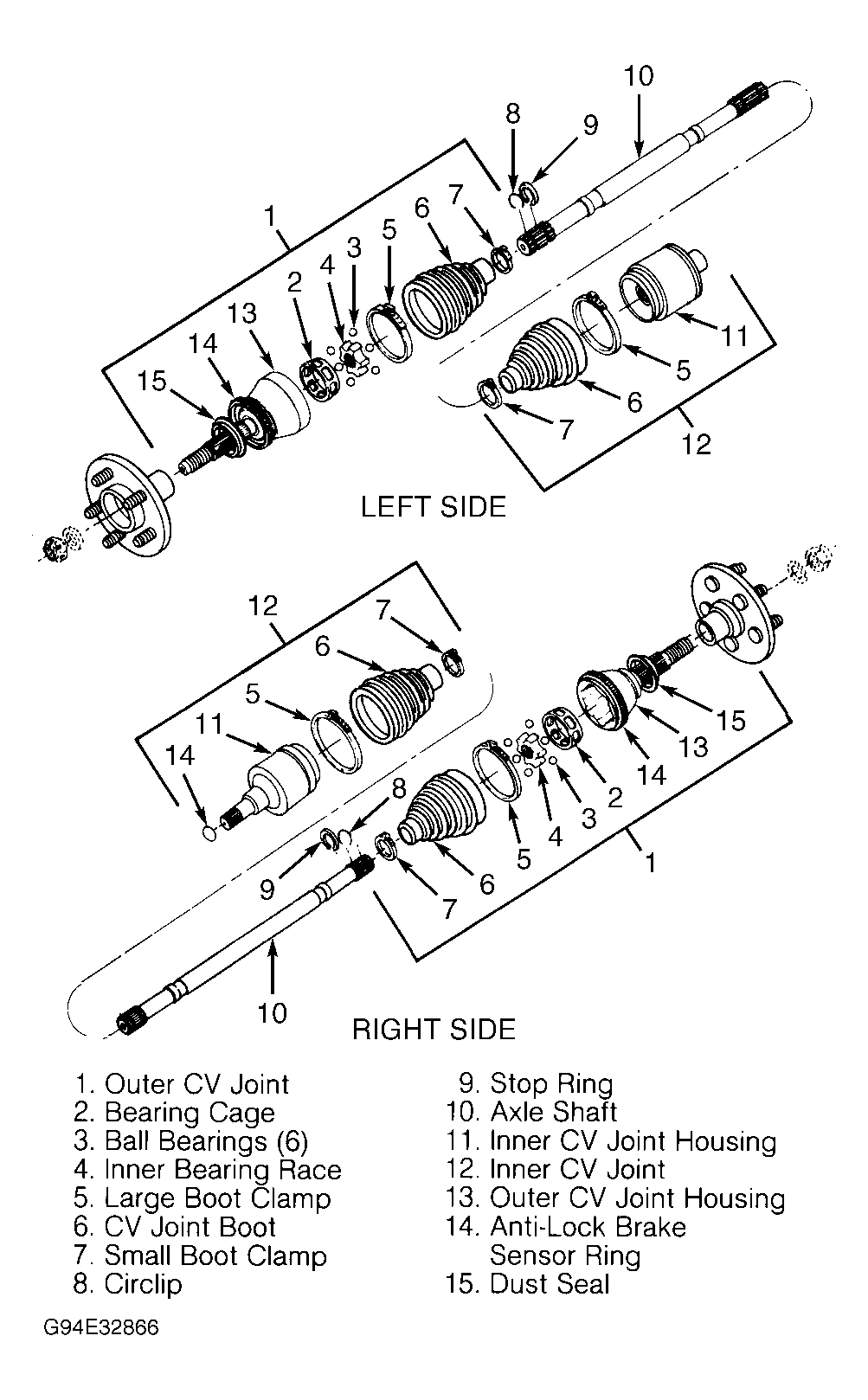

Fig 4: Exploded View Of Axle Shaft & CV Joint Assemblies (Typical)

Courtesy of FORD MOTOR.
