Power Distribution Box Identification
›
Notes
Power Distribution Box Identification: Notes

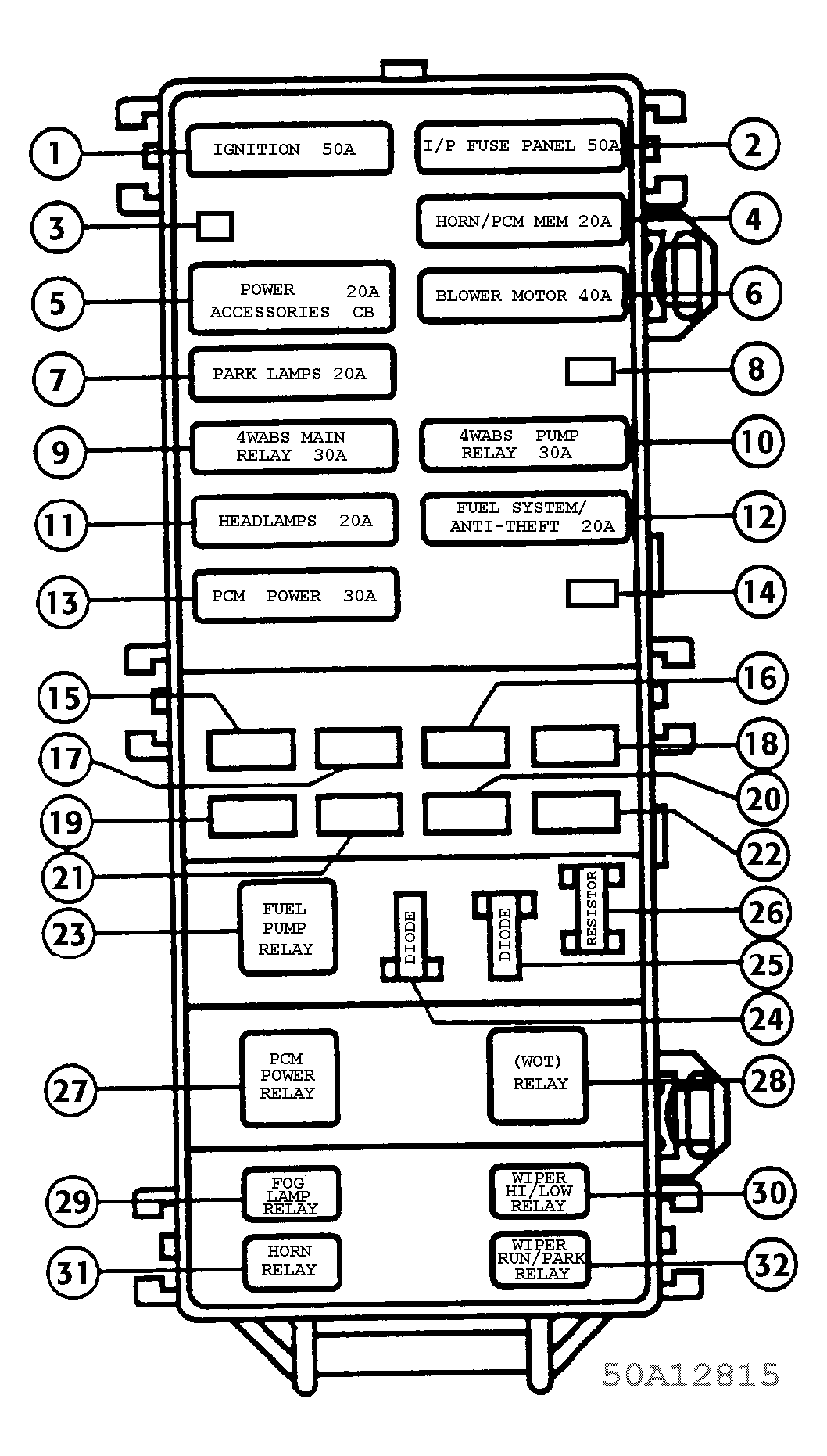

Fig 1: Power Distribution Box Identification
Courtesy of FORD MOTOR CO.
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
