Cell Phone In-Line Fuse
Cell Phone In-Line Fuse
NOTE:
Cell phone in-line fuse is located above left rear wheelwell, in cargo area. See
Fig 1
or
Fig 2
Fig 1: Full Body View (Wagon - 2 Of 2)

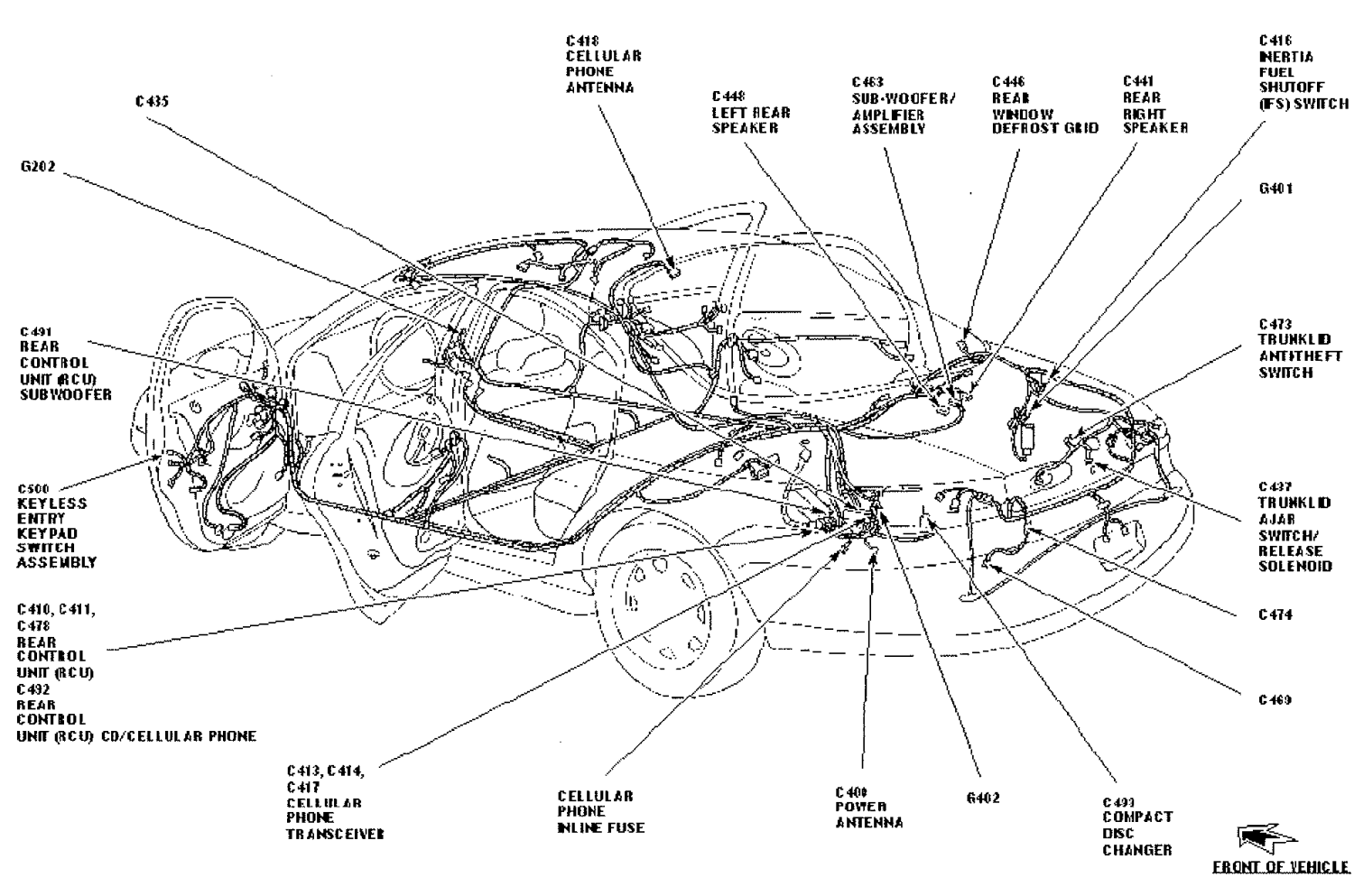

Fig 2: Full Body View (Sedan)
