Engine Compartment Fuse/Relay Box

NOTE: Engine compartment fuse/relay box is located in front center of engine compartment, behind radiator. See Figure.

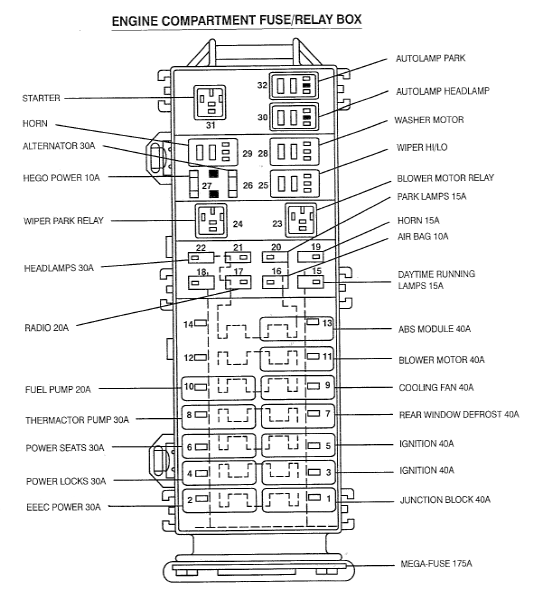

Fig 1: Underhood Power Distribution Box Identification

Courtesy of FORD MOTOR CO.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
