Service Point Locations: Notes

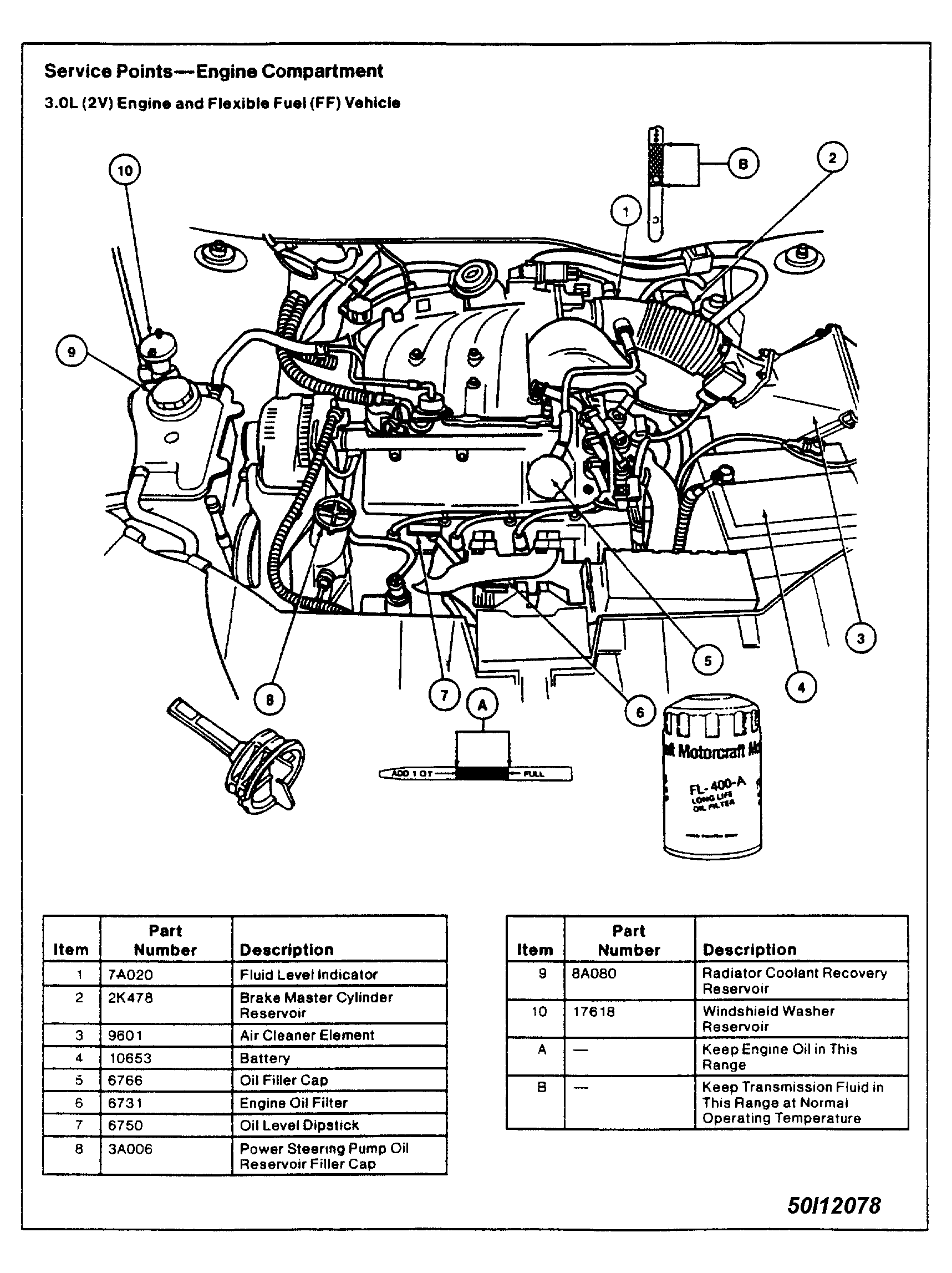

Fig 1: Service Point Locations (3.0L OHV V6)

Courtesy of FORD MOTOR CO.

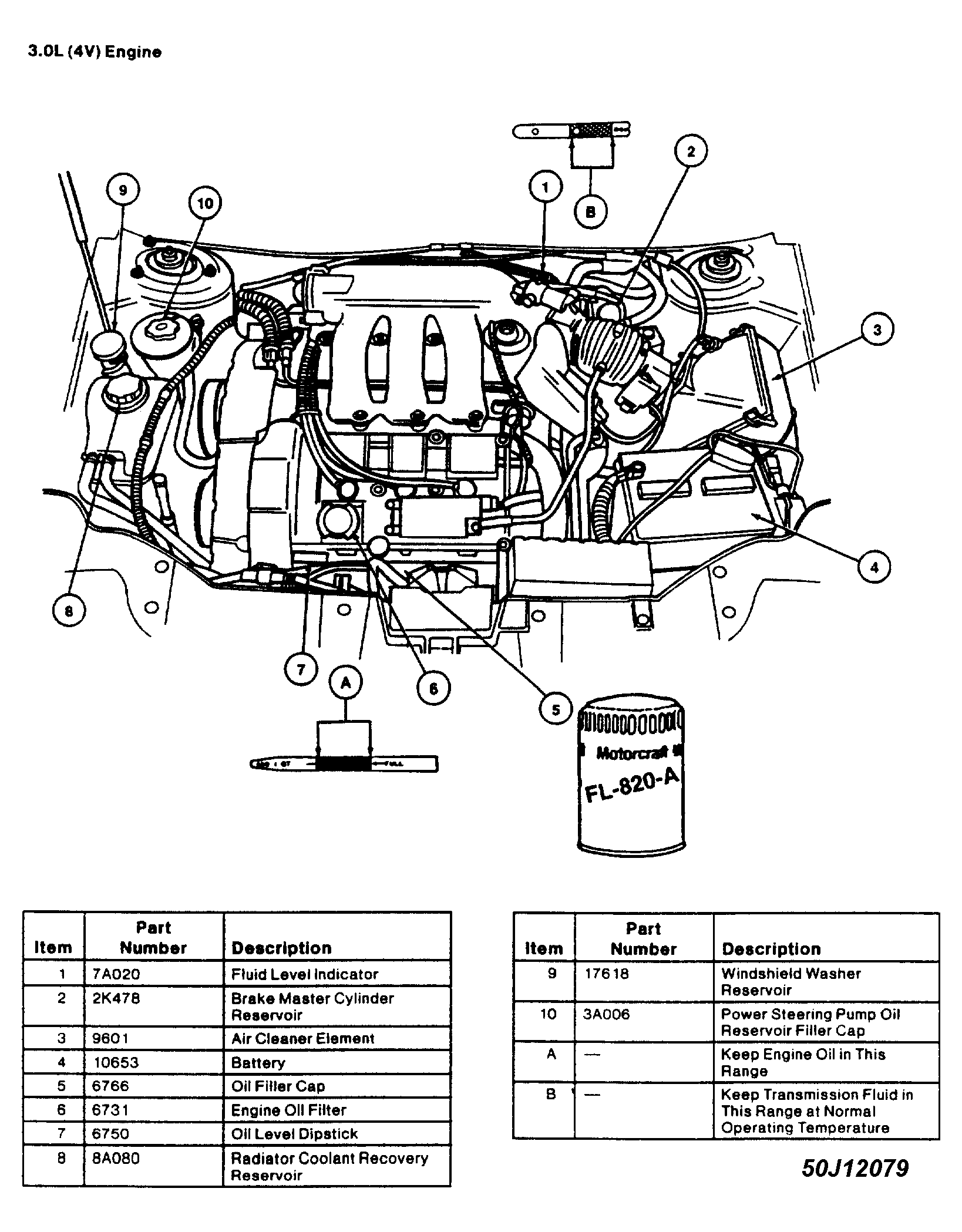

Fig 2: Service Point Locations (3.0L DOHC V6)

Courtesy of FORD MOTOR CO.

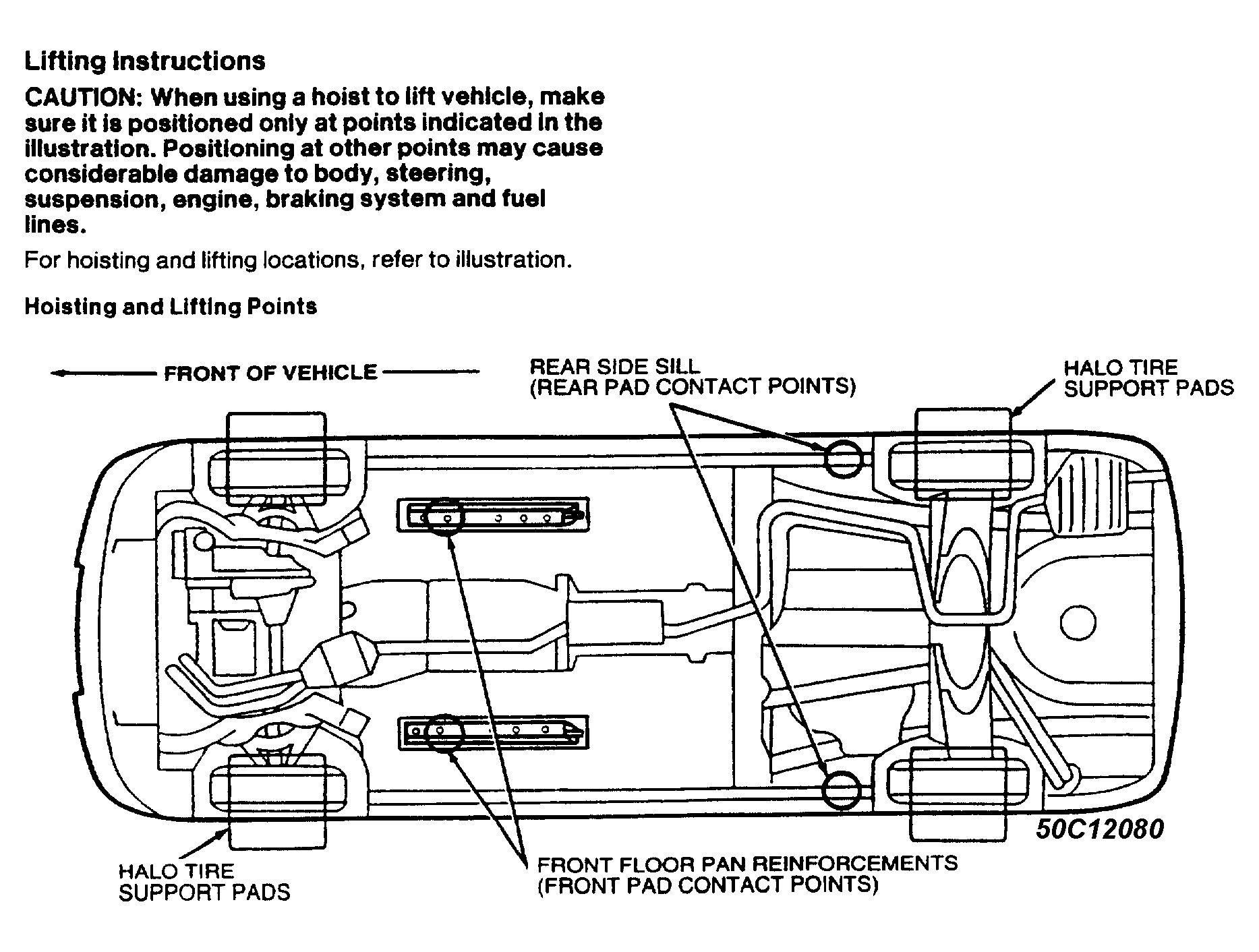

Fig 3: Lift Point Locations

Courtesy of FORD MOTOR CO.

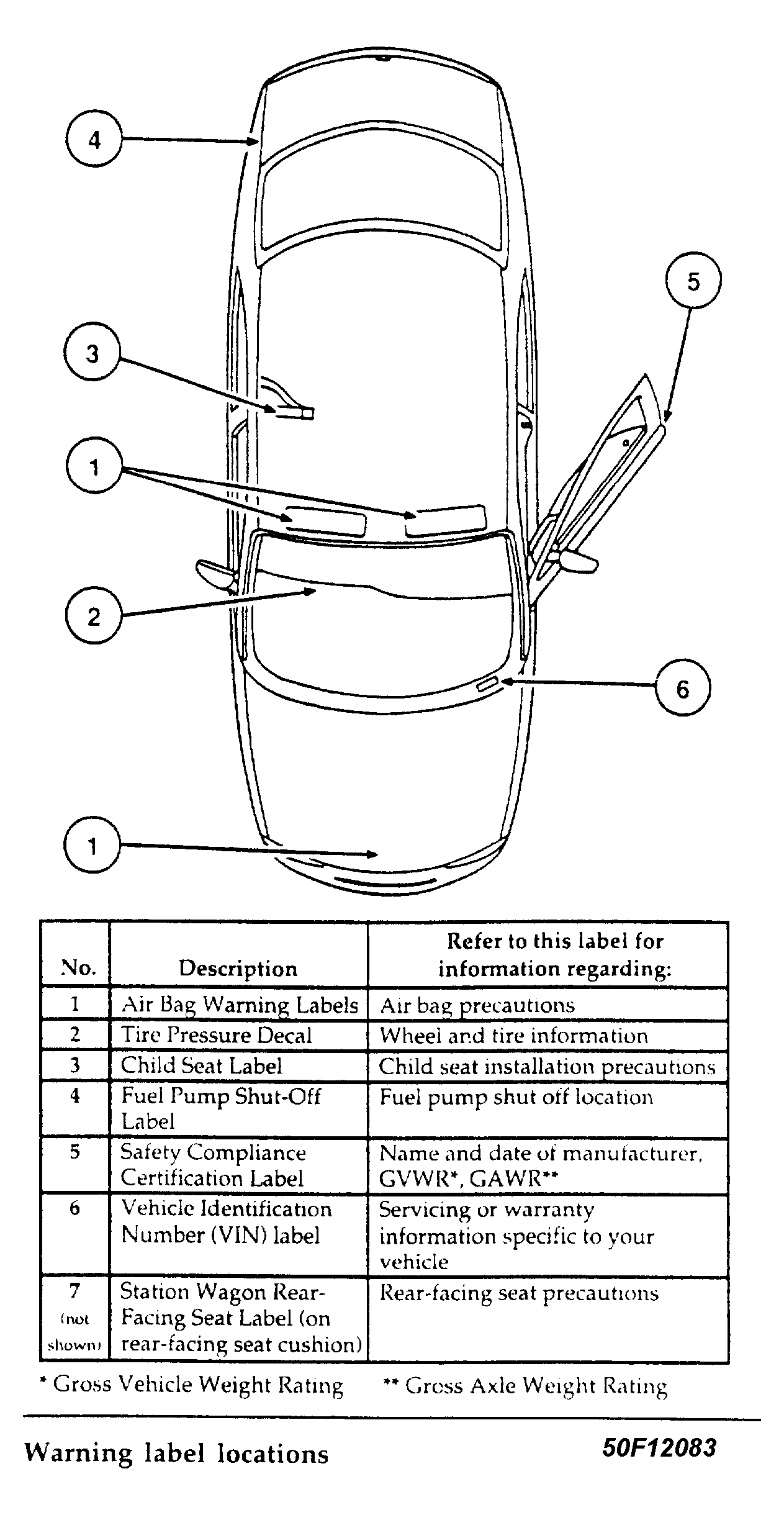

Fig 4: Identification and Warning Label Locations

Courtesy of FORD MOTOR CO.
