Abs Quick Check Chart
NOTE:
For measurements, use Breakout Box (014-00322) and ABS Adapter Harness & Overlay (007-00108).

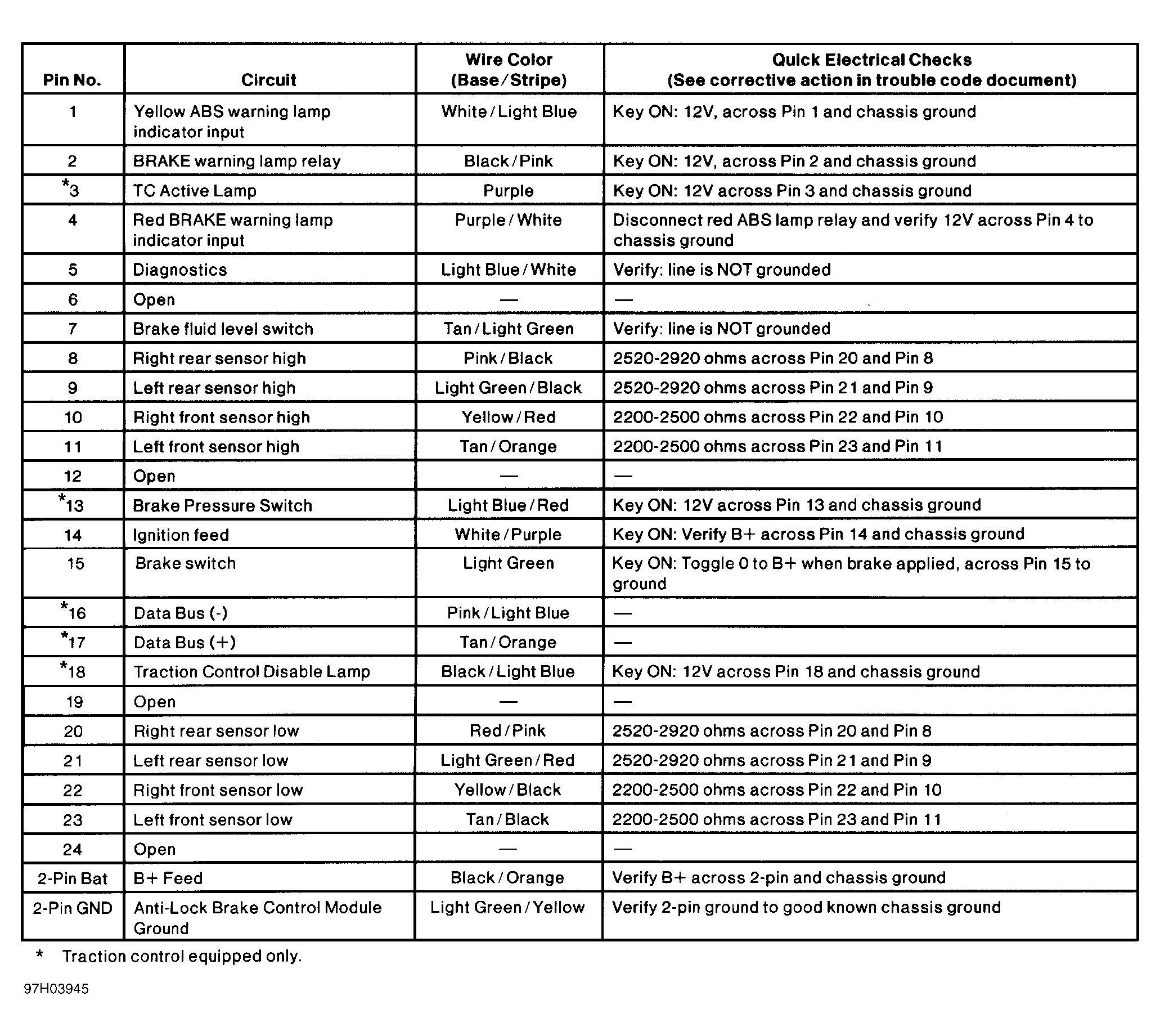

Fig 1: ABS Quick Check Chart
Courtesy of FORD MOTOR CO.
