Interior Fuse Panel

NOTE: Interior fuse panel is located under driver's side of instrument panel. See Fig 1.

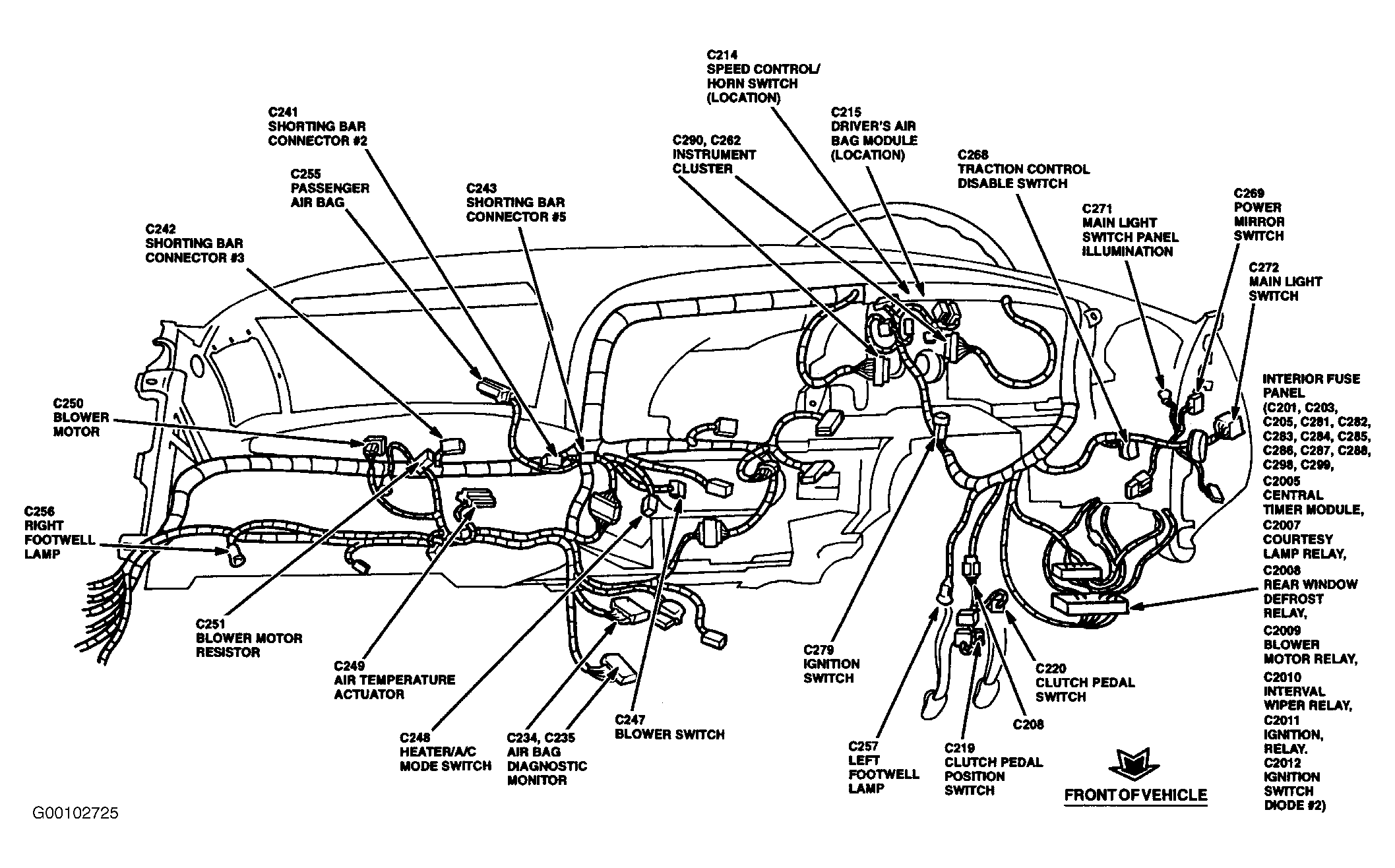

Fig 1: Locating Instrument Panel Electrical Components
G00102725Courtesy of FORD MOTOR CO.

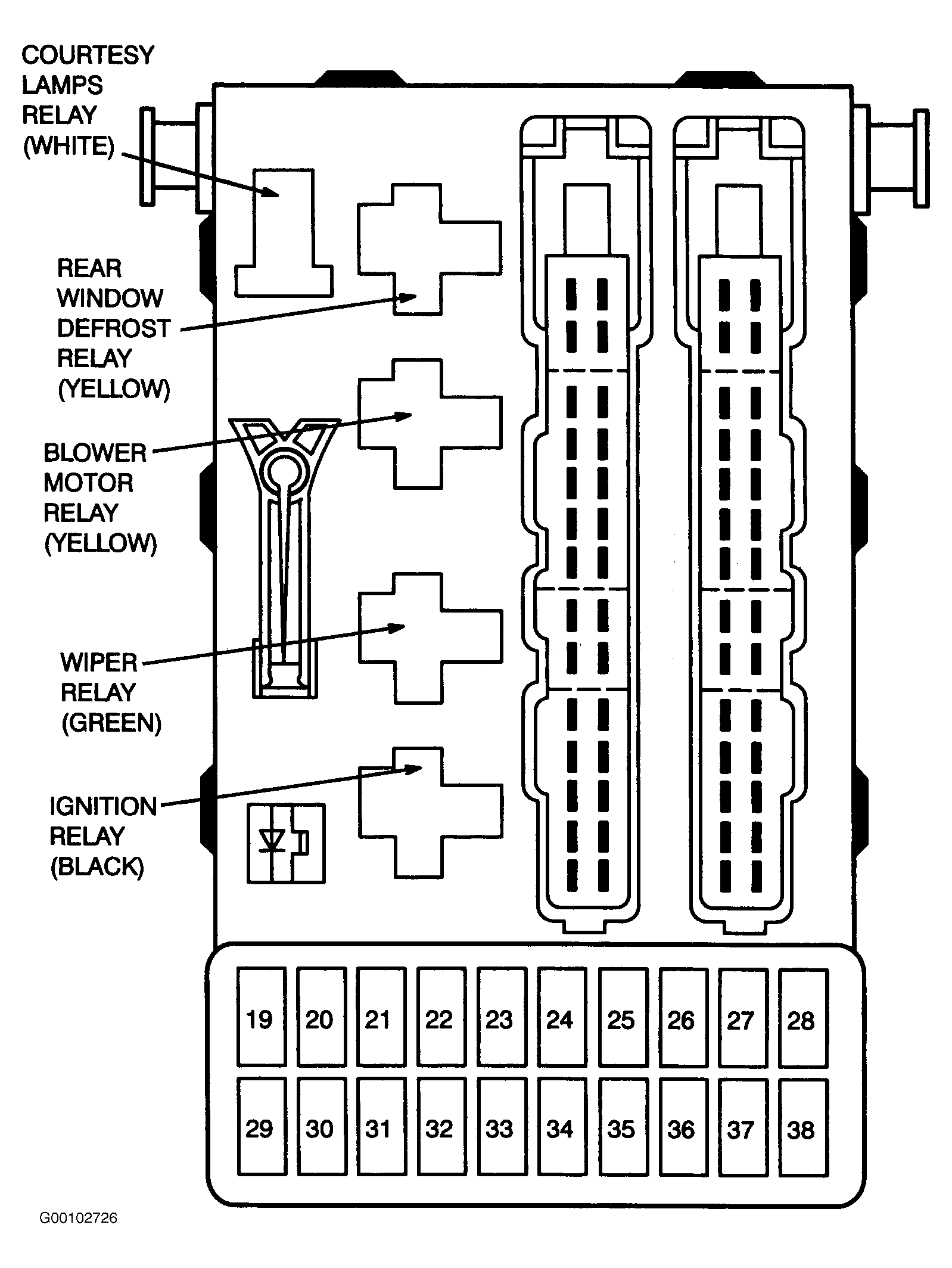

Fig 2: Identifying Interior Fuse Panel Components
G00102726Courtesy of FORD MOTOR CO.

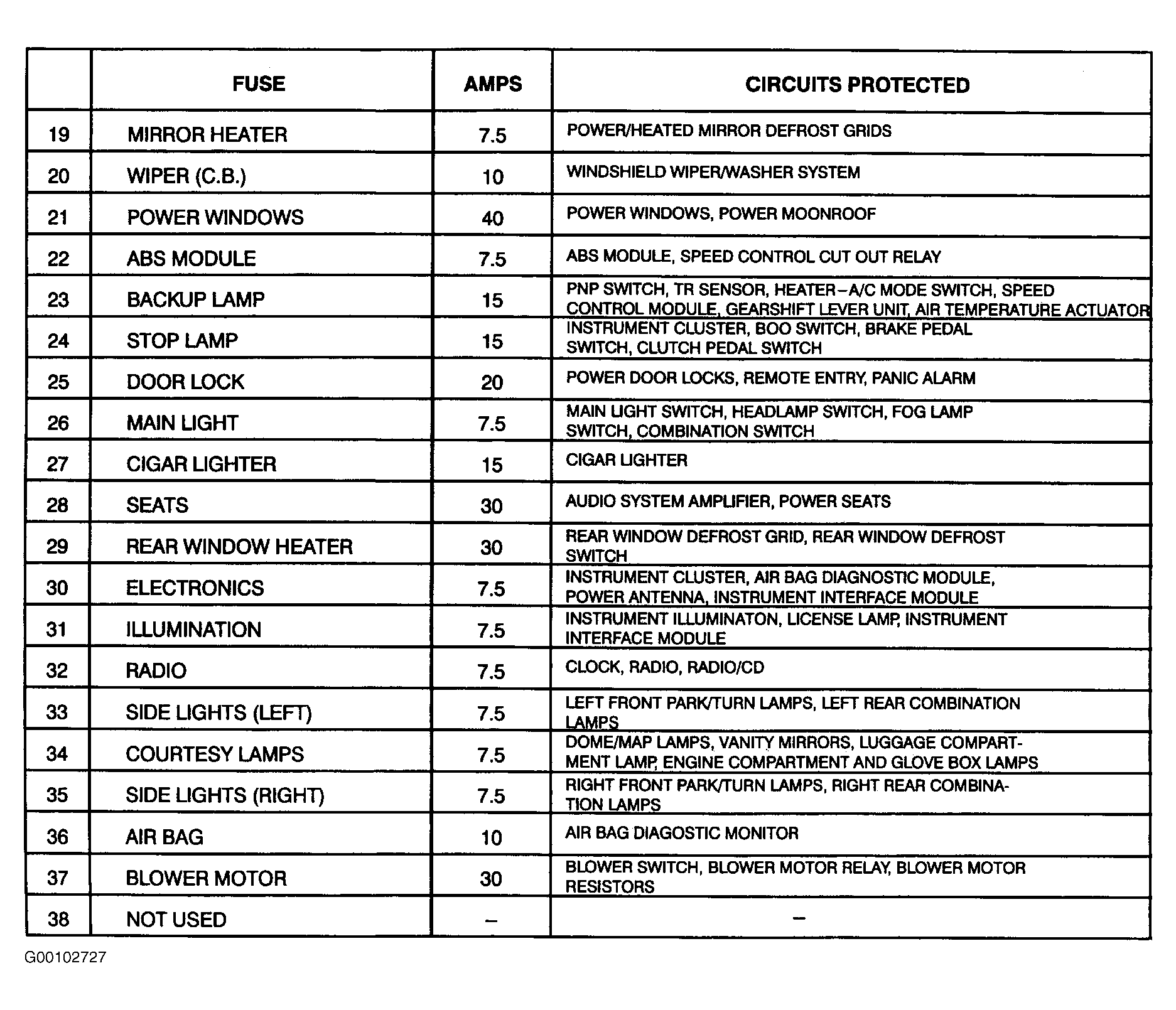

Fig 3: Interior Fuse Panel Legend
G00102727Courtesy of FORD MOTOR CO.
