Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

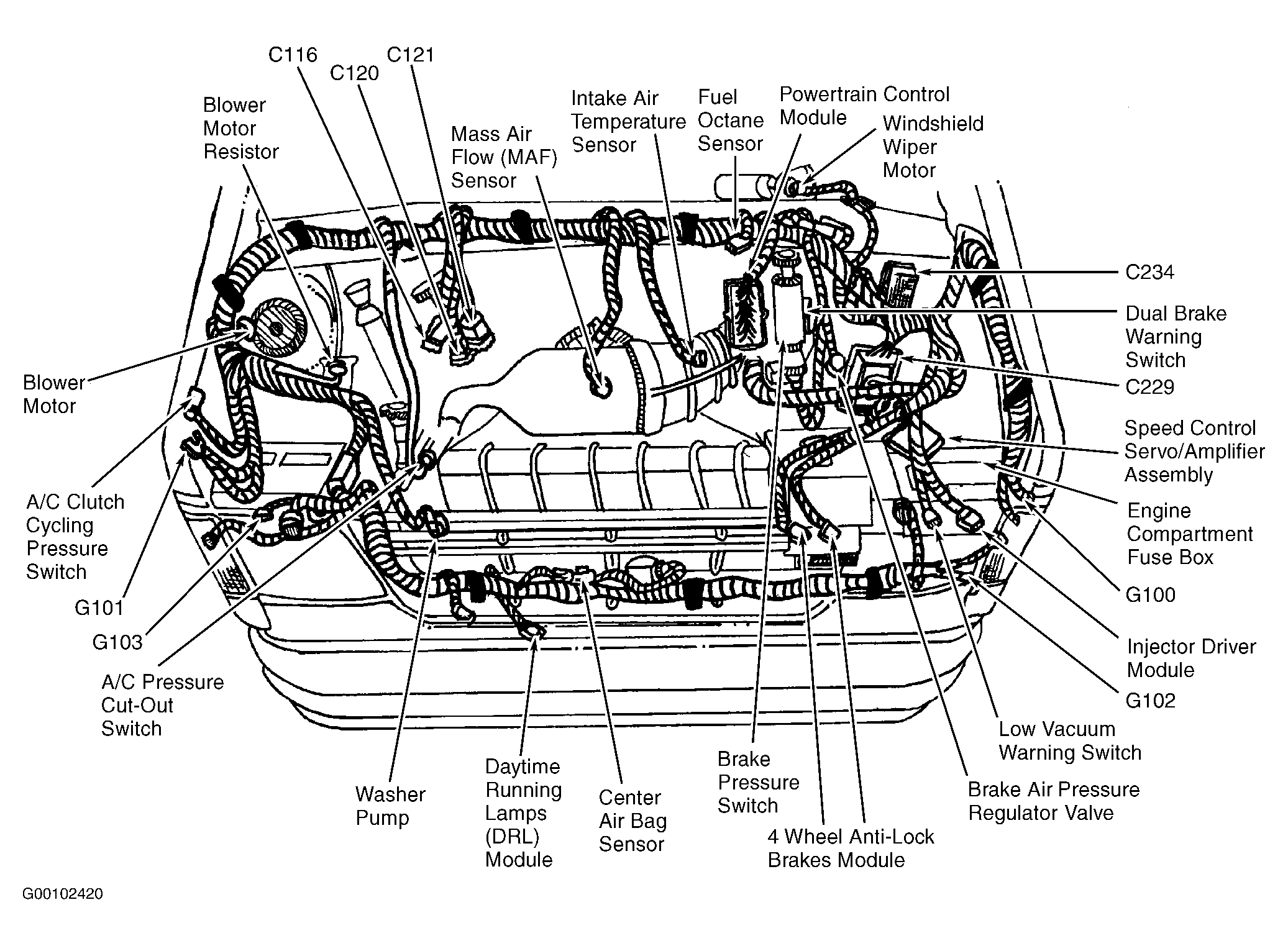

| Engine Compartment Fuse Box | In left front of engine compartment. See Figure . |
| Fuse Link A | At starter motor relay |
| Fuse Link B | At starter motor relay |
| Fuse Link C | At starter motor relay |
| Fuse Link D | At starter motor relay |
| Fuse Link E | At starter motor relay |

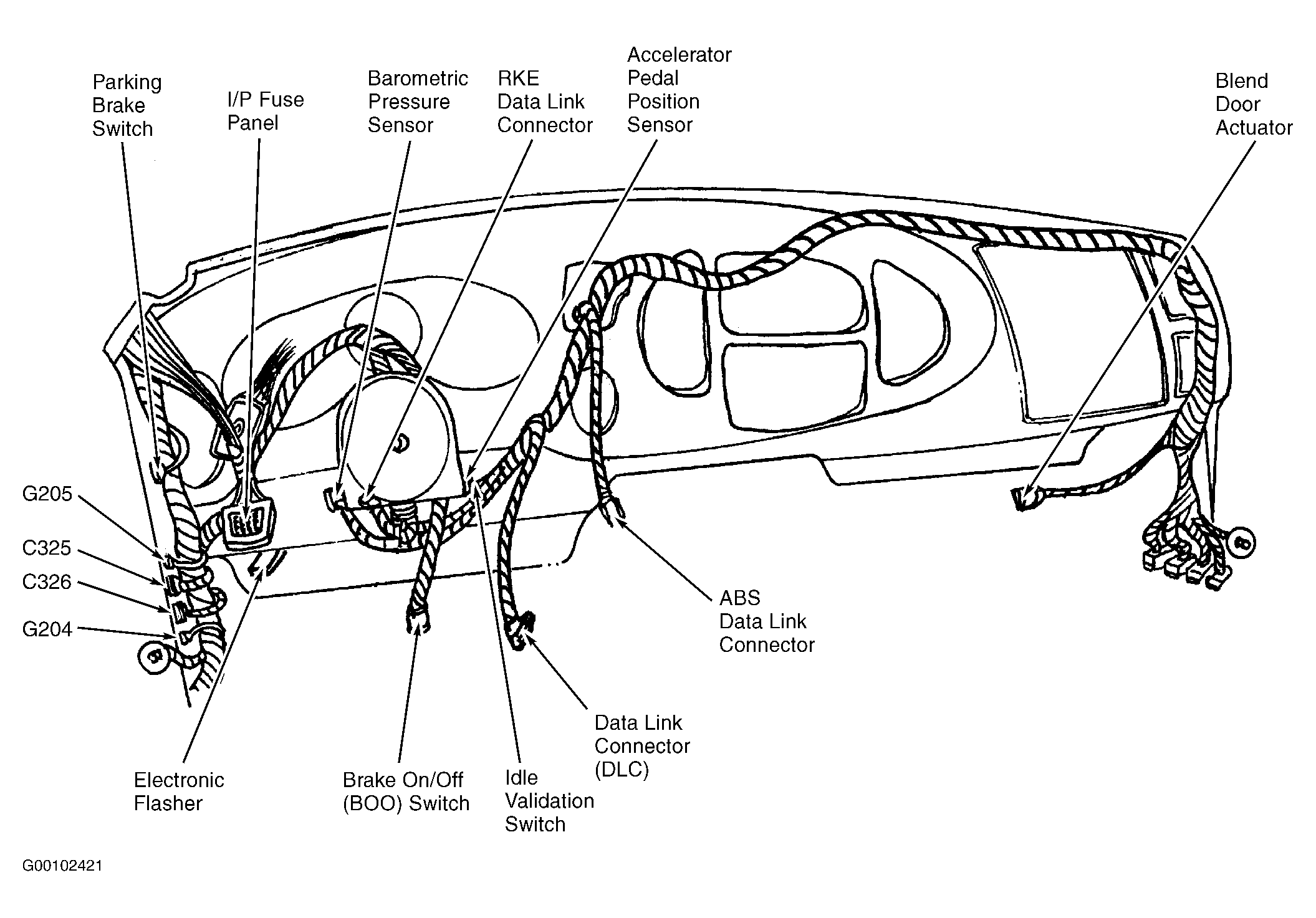

| I/P Fuse Panel | Behind left side of dash. See Figure . |
