Engine Compartment Fuse Box
Engine Compartment Fuse Box
NOTE:
Engine compartment fuse box is located on the driver's side of engine compartment, near battery. See
Fig 1
.

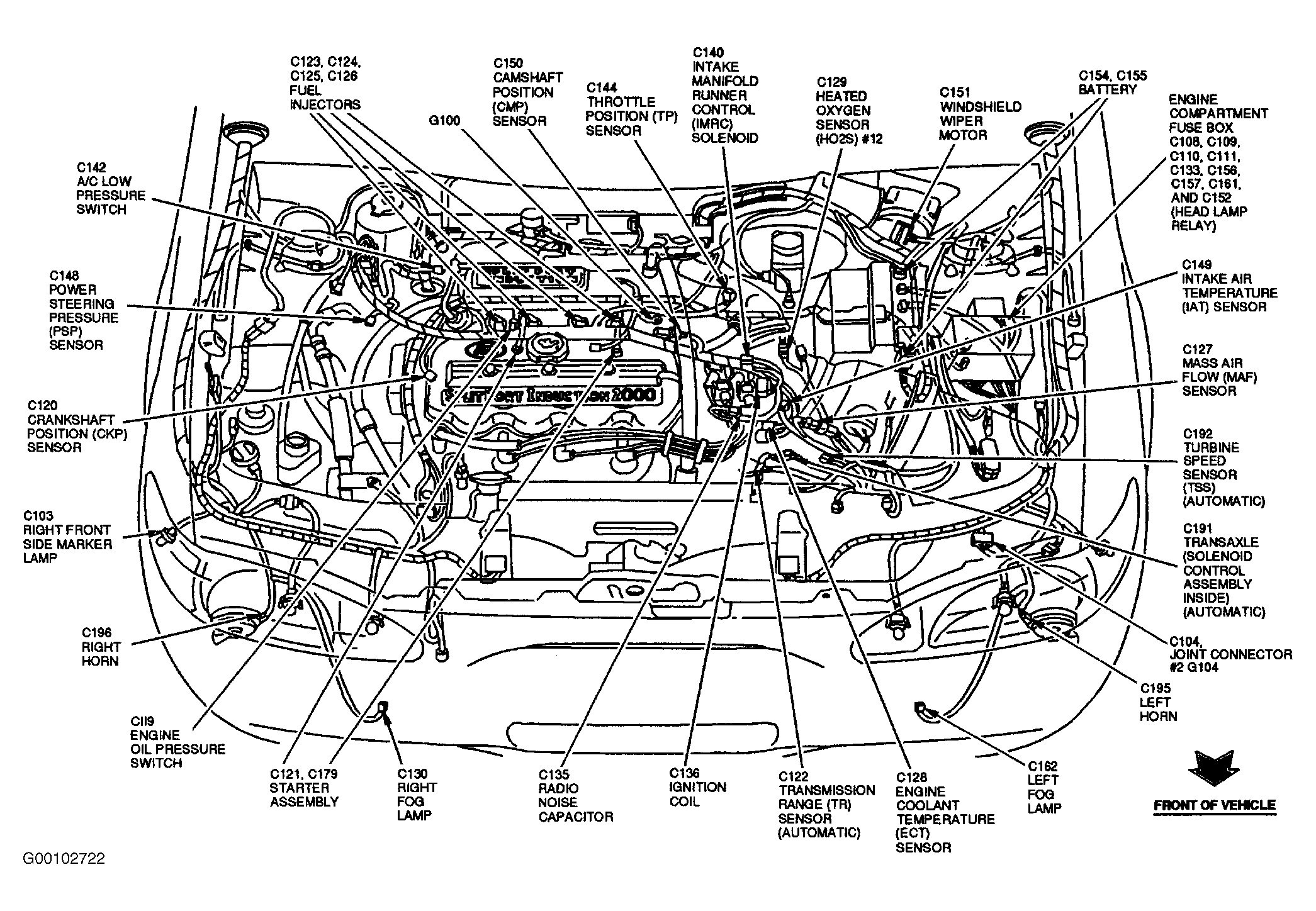

Fig 1: Locating Engine Compartment Electrical Components
Courtesy of FORD MOTOR CO.

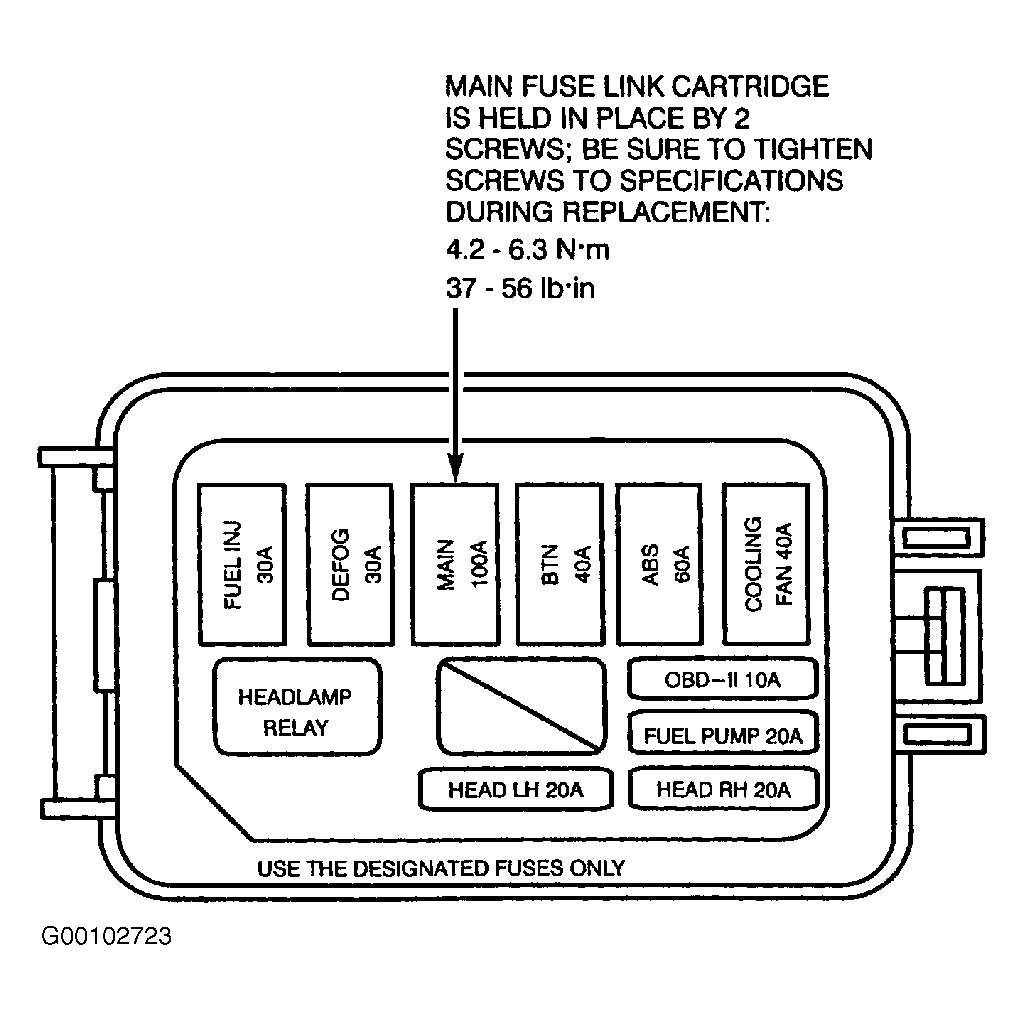

Fig 2: Identifying Engine Compartment Fuse Box Components
Courtesy of FORD MOTOR CO.

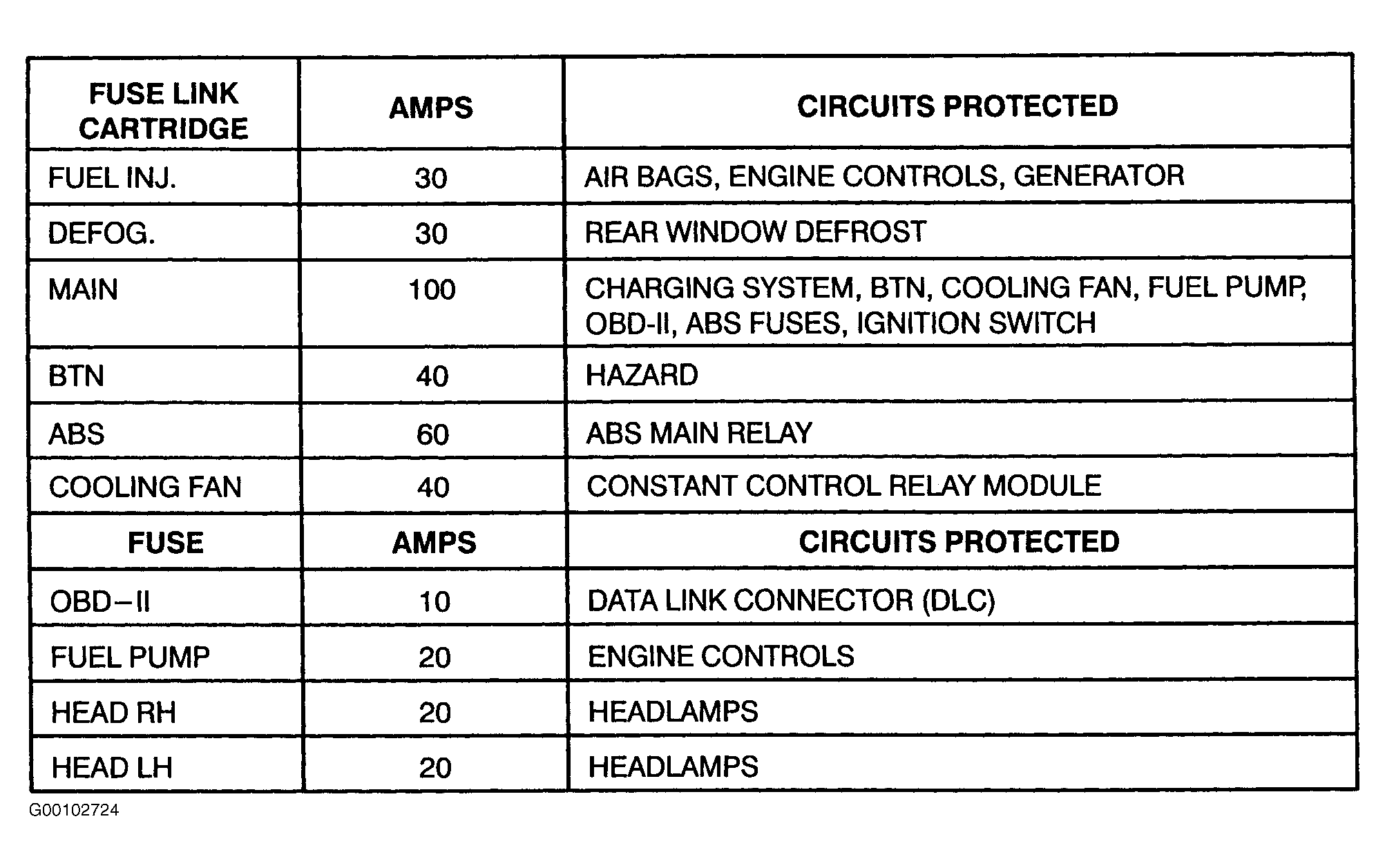

Fig 3: Engine Compartment Fuse Box Legend
Courtesy of FORD MOTOR CO.
