Relay Box

NOTE: Relay box is located under driver's side of instrument panel. See Figure.

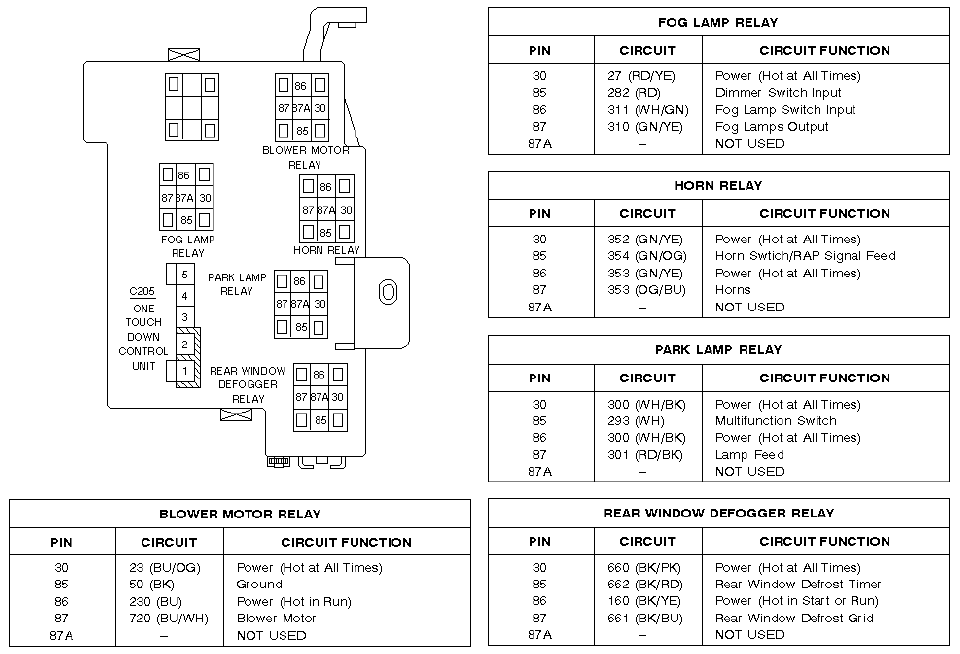

Fig 1: Identifying Relay Box Components
G00522053Courtesy of FORD MOTOR CO.
