Wiper/Washer Switch

WARNING: This page is about a different car, the 1997 Mercury Grand Marquis, 1997 Lincoln Town Car, and 1997 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Wiper/washer switch is incorporated into multifunction switch on steering column. Disconnect multifunction switch connector. Using a DVOM, measure resistance between multifunction switch terminals. See Fig 1 . See WIPER/WASHER SWITCH RESISTANCE TABLE. If resistance is not as specified, replace multifunction switch.

WIPER/WASHER SWITCH RESISTANCE

Switch Position

Terminals No.

⁽¹⁾ Ohms

Washer

4 & 6

⁽²⁾

Off

4 & 6

103,300

Wipers

Off

1 & 4

47,600

Low Speed

1 & 4

4080

High Speed

1 & 4

⁽²⁾

Interval (MAX)

4 & 6

⁽³⁾ 103,300

Interval (MIN)

4 & 6

⁽³⁾ 3300

⁽¹⁾	Resistance may vary by as much as 10 percent.

⁽²⁾	Continuity should exist.

⁽³⁾	Resistance should vary smoothly between specified limits as knob is rotated between MIN and MAX positions.

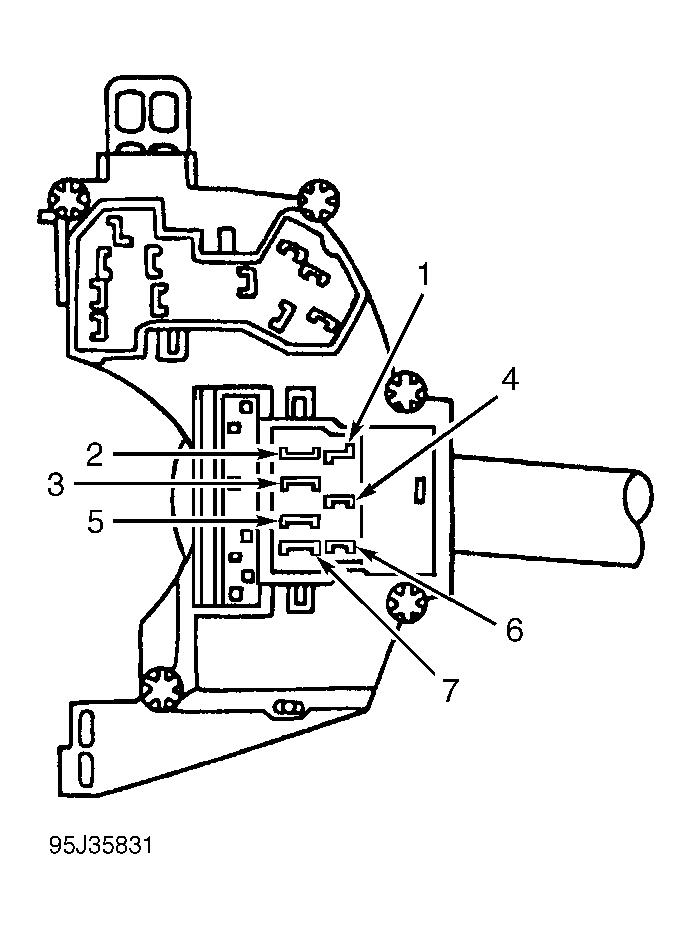

Fig 1: Wiper Switch Terminals

Courtesy of FORD MOTOR CO.
