Removal & Installation (Aspire)

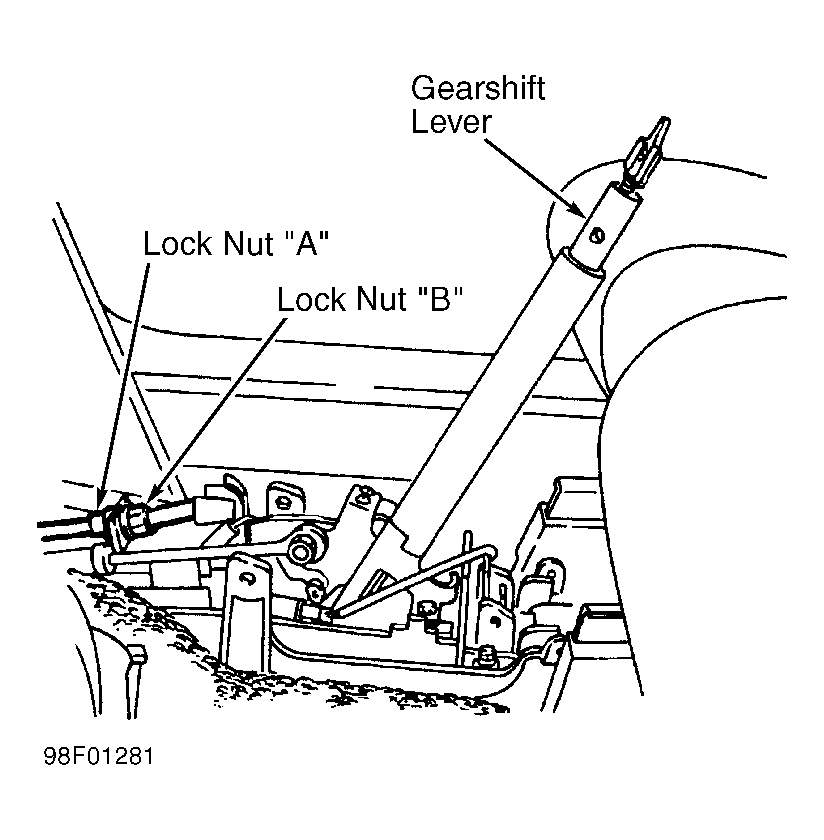

- Remove 2 shifter knob securing bolts and knob from gearshift lever. Loosen shift interlock cable locknut "A" and disconnect from gearshift lever bracket. See Fig 1.

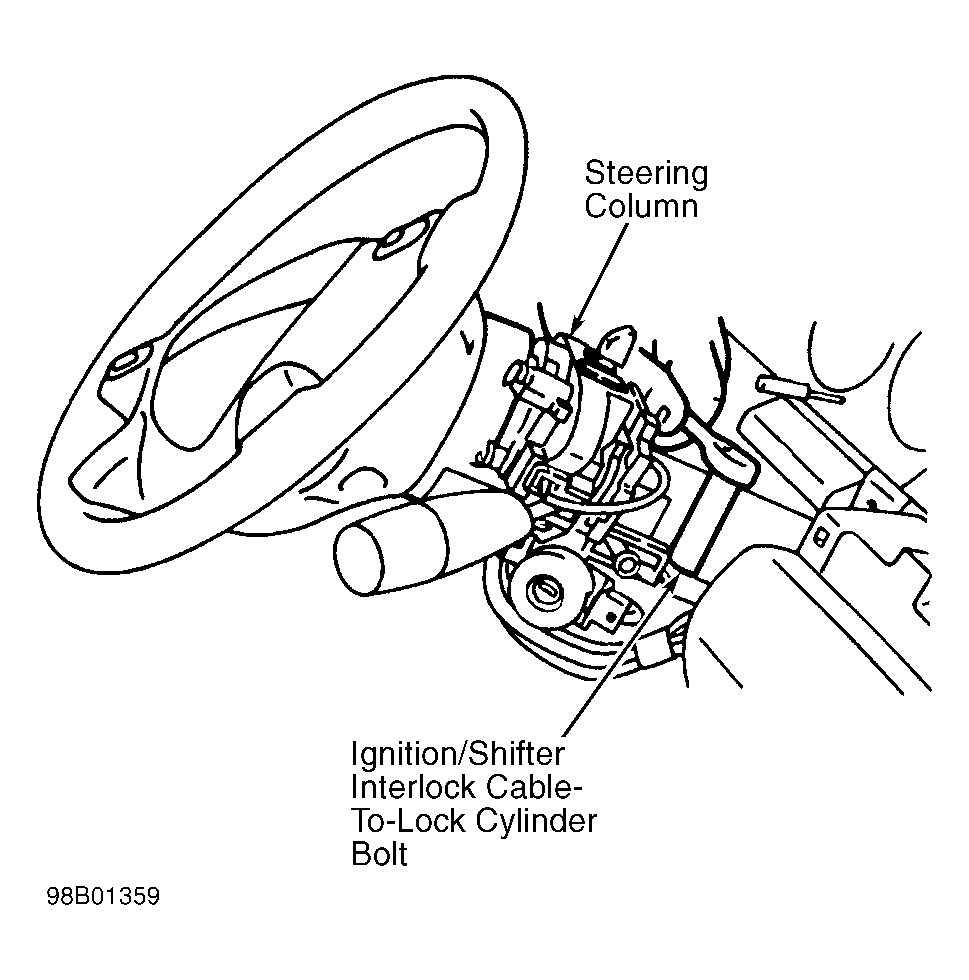

- Attach mechanics wire to cable end to ensure correct installation. Remove 2 cable hold down screws attached to bulkhead under instrument panel. Remove 3 screws securing steering column upper and lower shrouds and remove shrouds. Remove shift interlock cable-to-lock cylinder bolt at lock cylinder housing. See Fig 2. Remove cable and disconnect mechanics wire.
NOTE:
DO NOT loosen shifter interlock cable locknut "B" during installation. See Fig 1. Locknut is factory preset and incorrect interlock operation may result if changed.
- To install, attach mechanics wire to new cable and pull wire to feed cable through instrument panel and console. To complete installation, reverse removal procedure. Torque shift locknut to 89-132 INCH lbs. (10-15 N.m).
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
