Mode 6 - 1997 Ford - Except Diesel
›
Misfire Monitor
Misfire Monitor

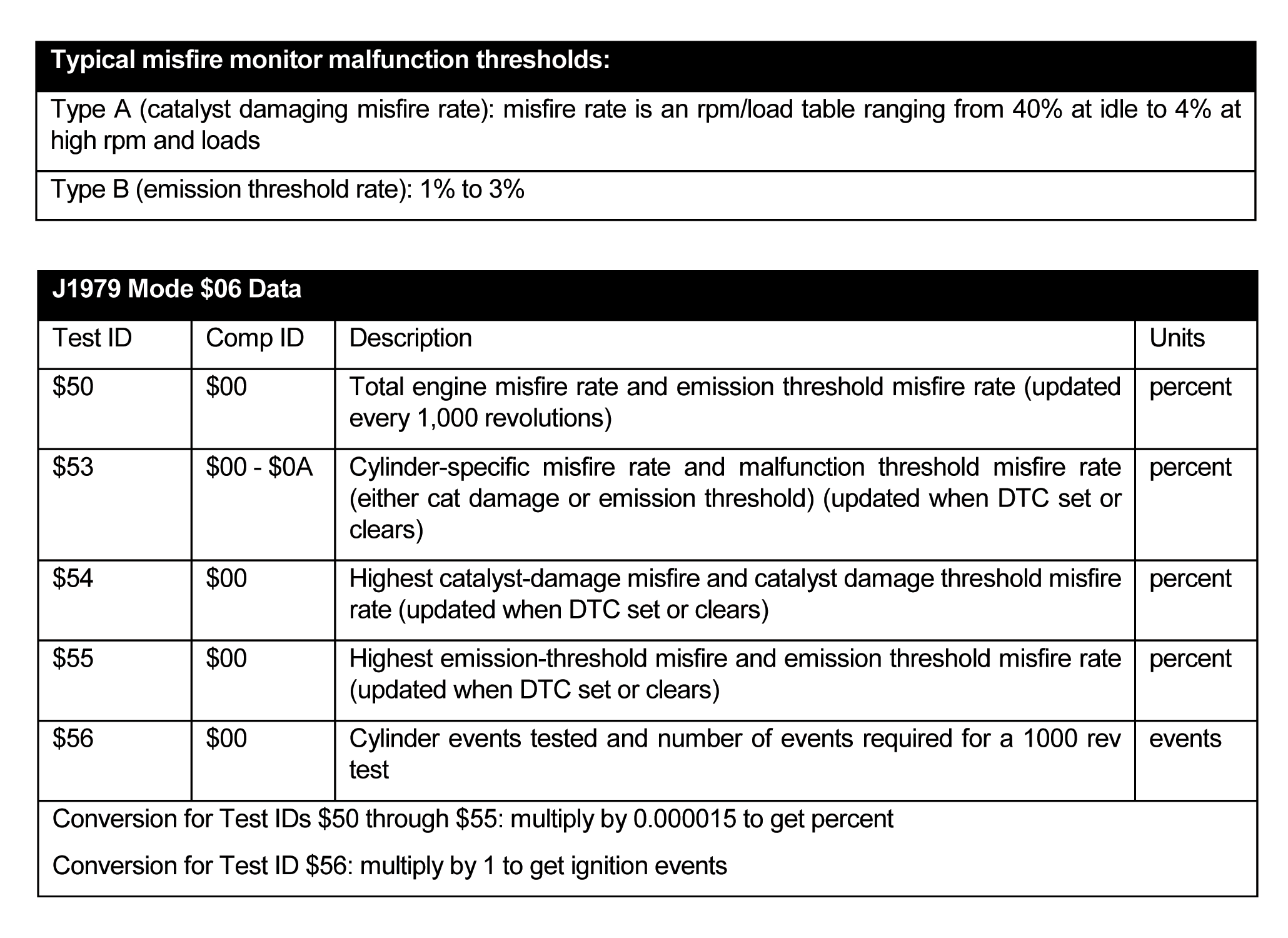

Fig 1: Mode $06 Data For Misfire Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
