Symptom Tests: Notes
NOTE:

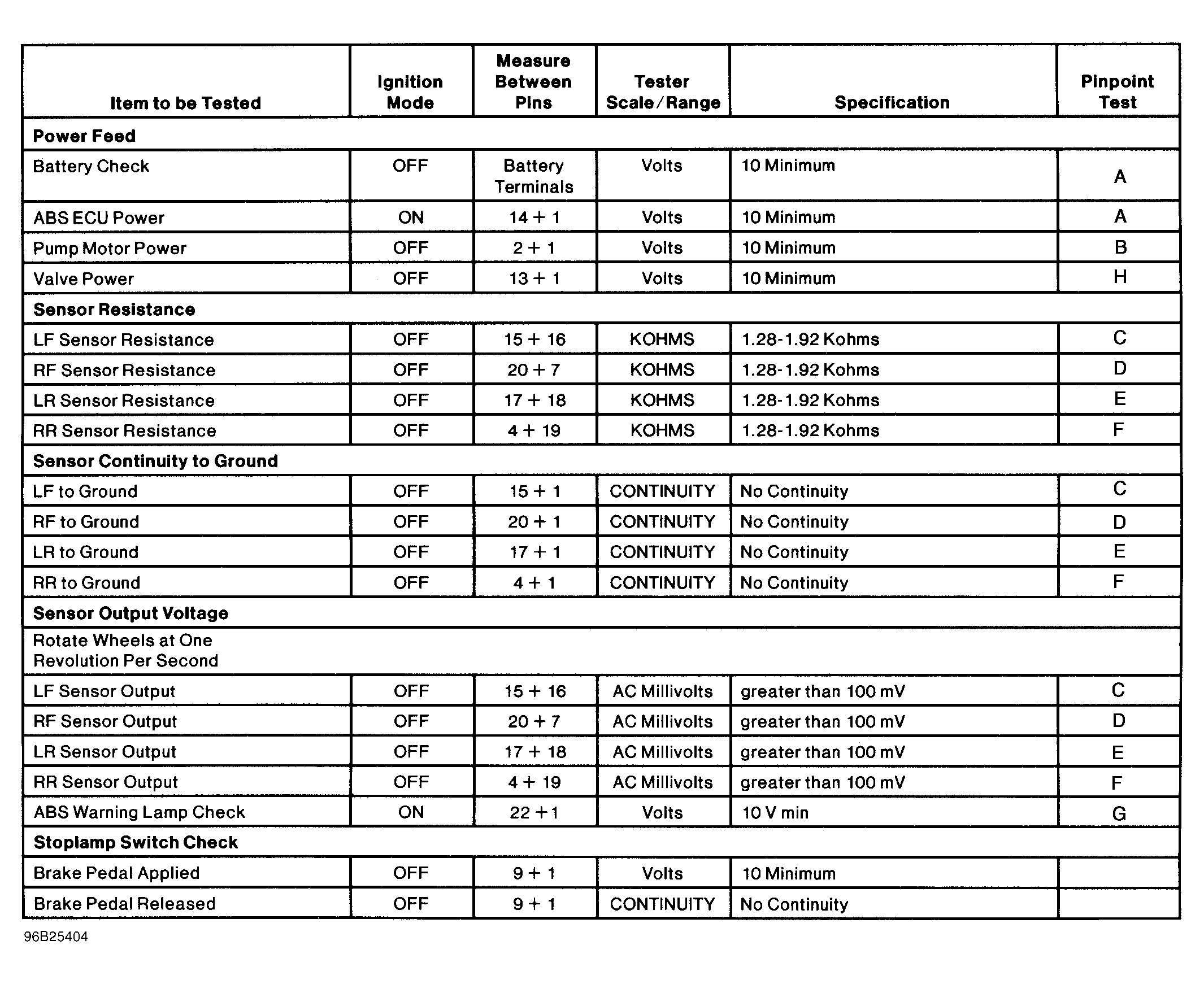

Test procedures require Breakout Box (014-00322) and ABS Adapter (007-00116). To identify terminals, see appropriate illustration. See Figure
andFigure
. See COMPONENT LOCATIONS
for connector and component locations. Measure voltage using digital voltmeter.
