Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

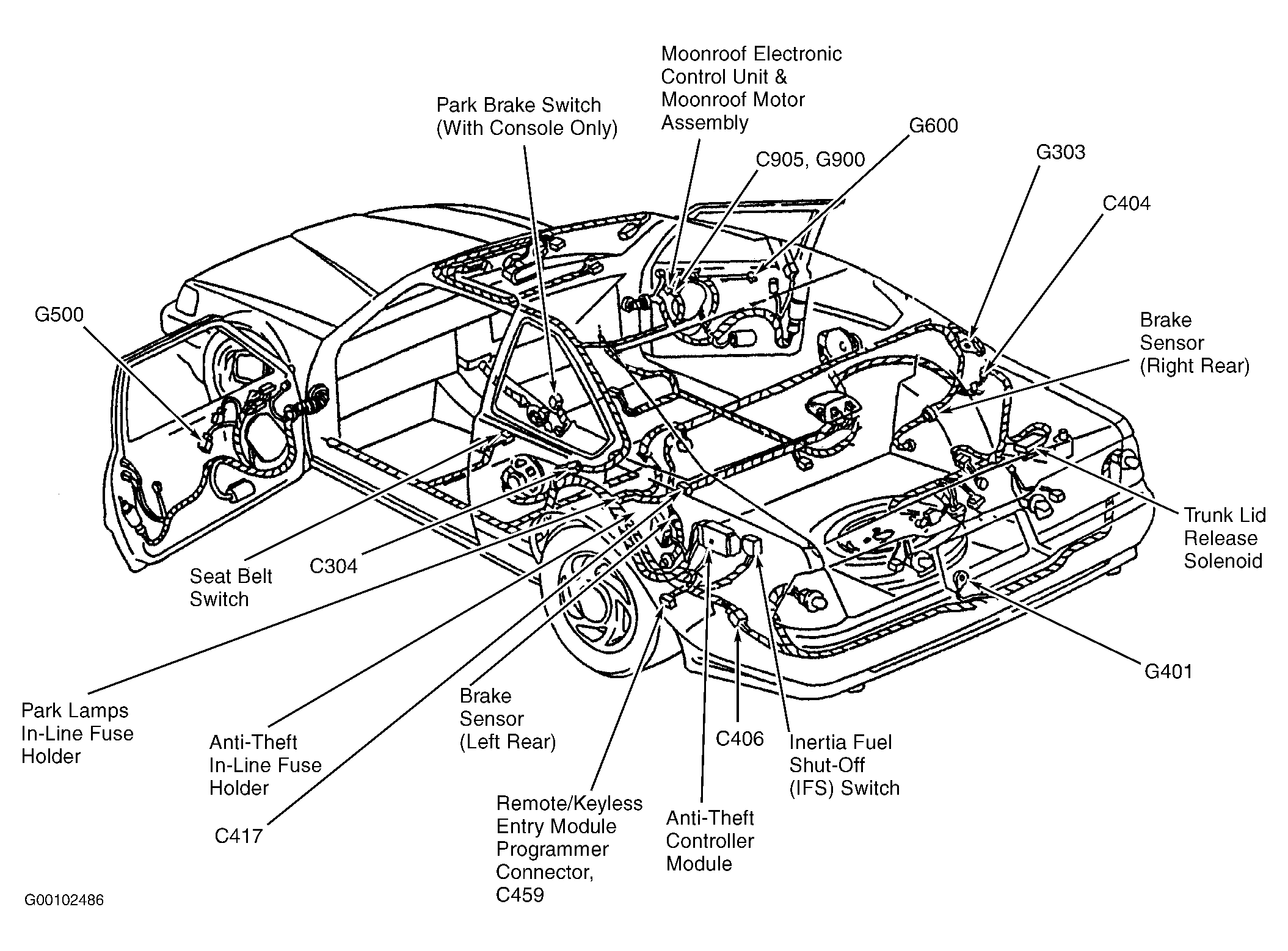

| Anti-Theft In-Line Fuse Holder | In left front of trunk, taped to window regulator jumper harness. See Figure. |

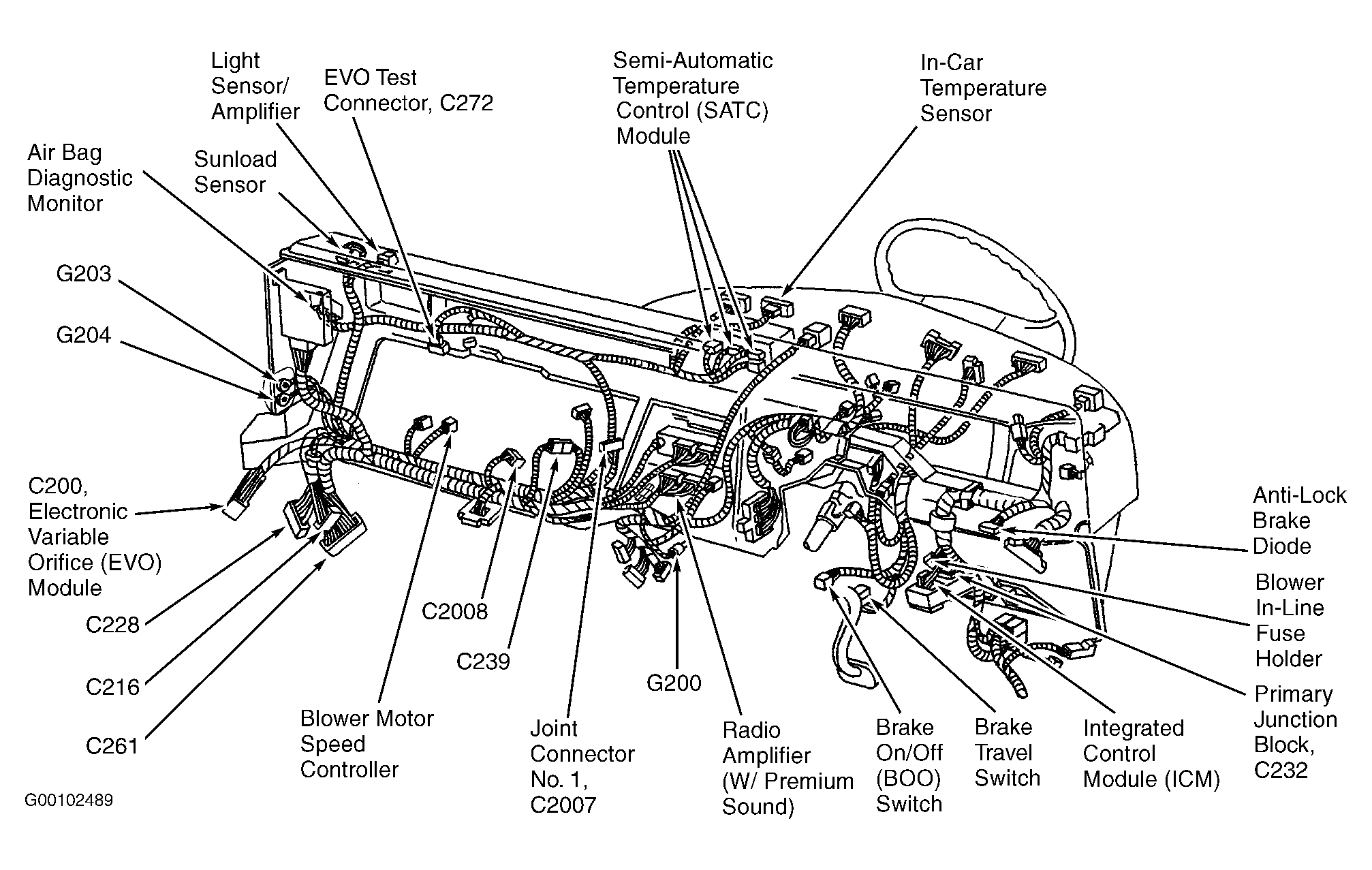

| Blower In-Line Fuse Holder | Behind left side of dash, taped to wiring harness. See Figure. |
| Fuse Link "A" | On power distribution box. |
| Park Lamps In-Line Fuse Holder | In left front of trunk, taped to window regulator jumper harness. See Figure. |

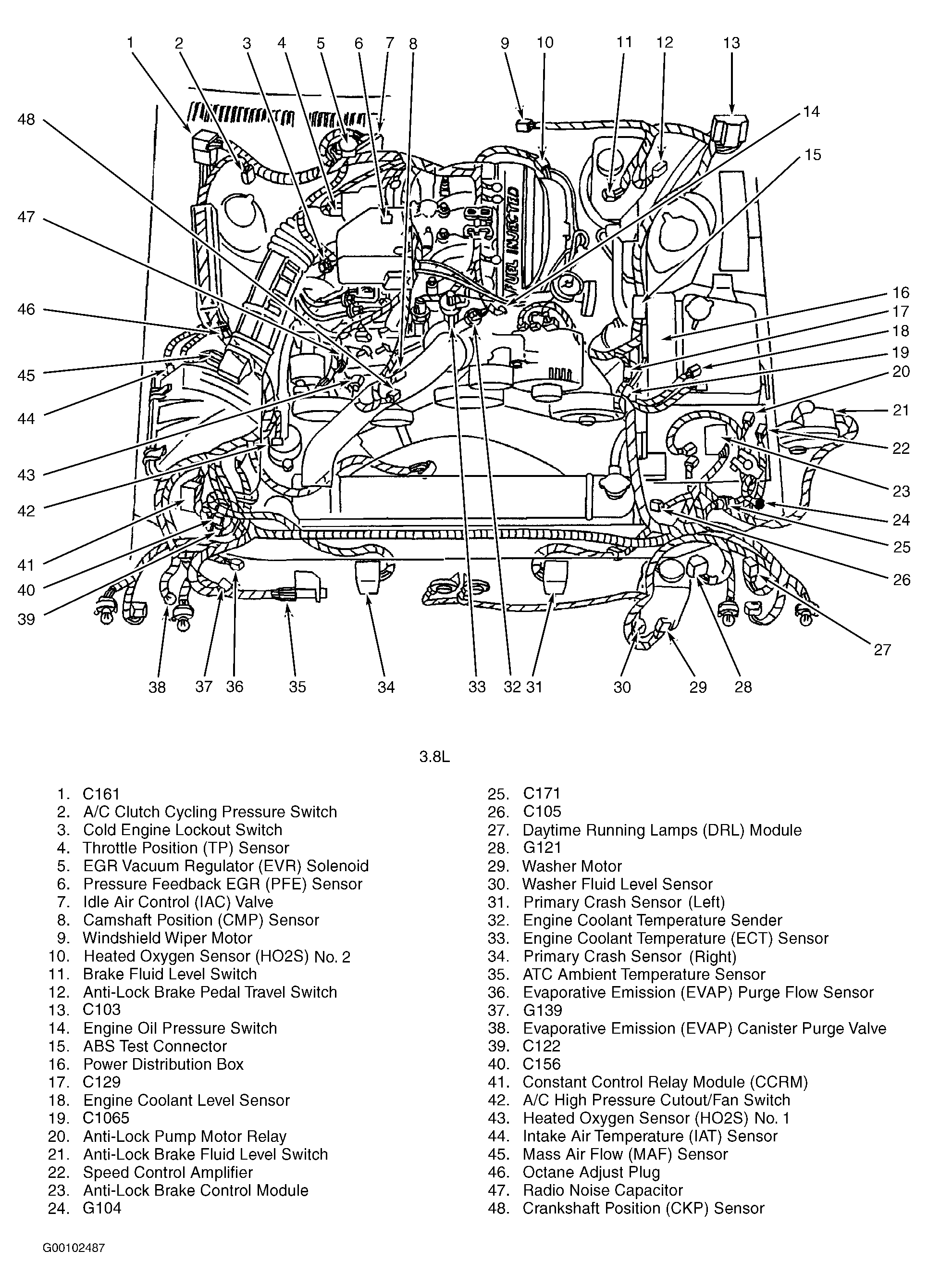

| Power Distribution Box (3.8L) | Left side of engine compartment. See Figure. |

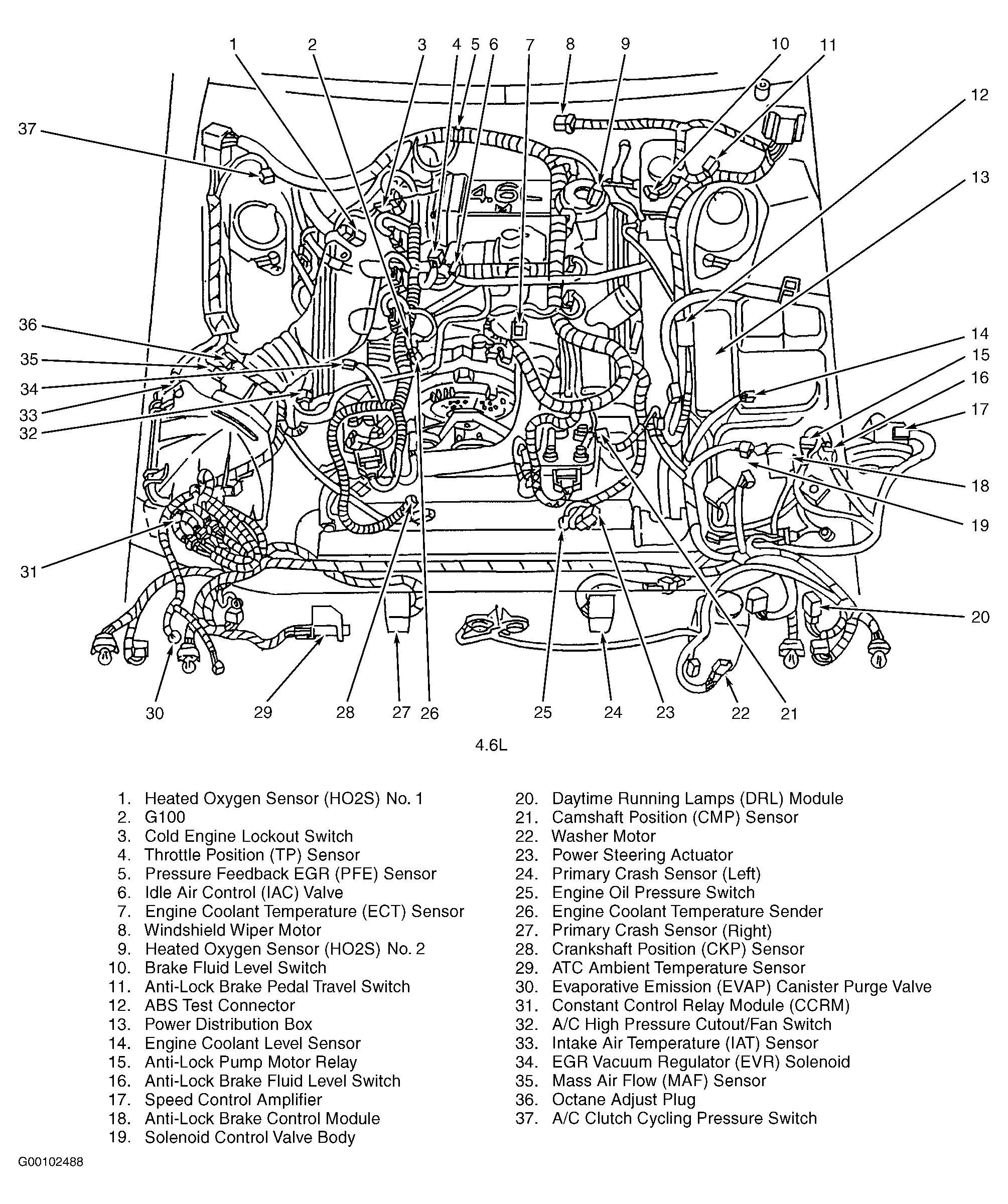

| Power Distribution Box (4.6L) | Left side of engine compartment. See Figure. |
| Primary Junction Block | Behind dash, left of steering column. See Figure. |

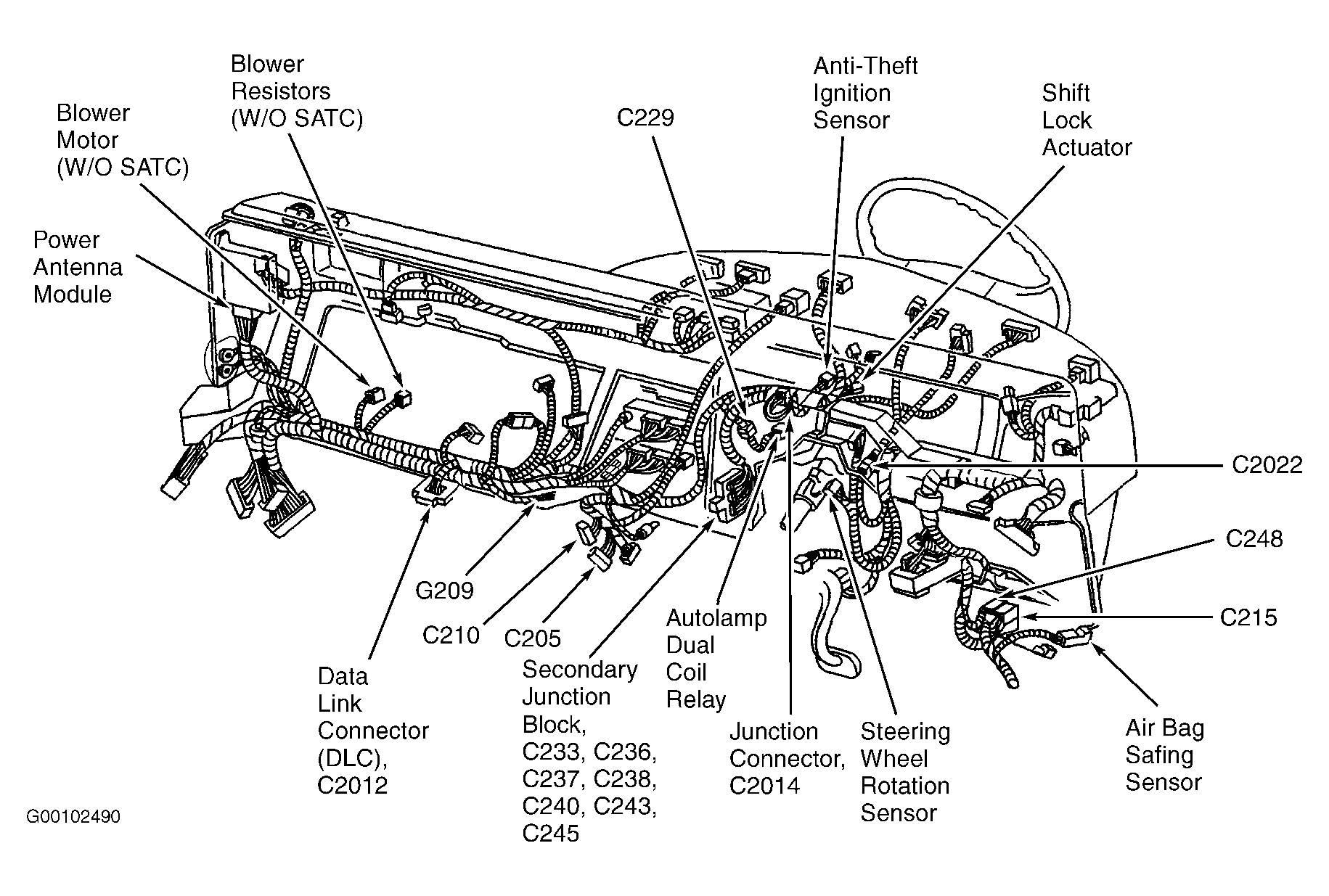

| Secondary Junction Block | Behind dash, right of steering column. See Figure. |
