Service Point Locations

Fig 1: Service Point Locations (3.0L Engine)
G50B12121Courtesy of FORD MOTOR CO.

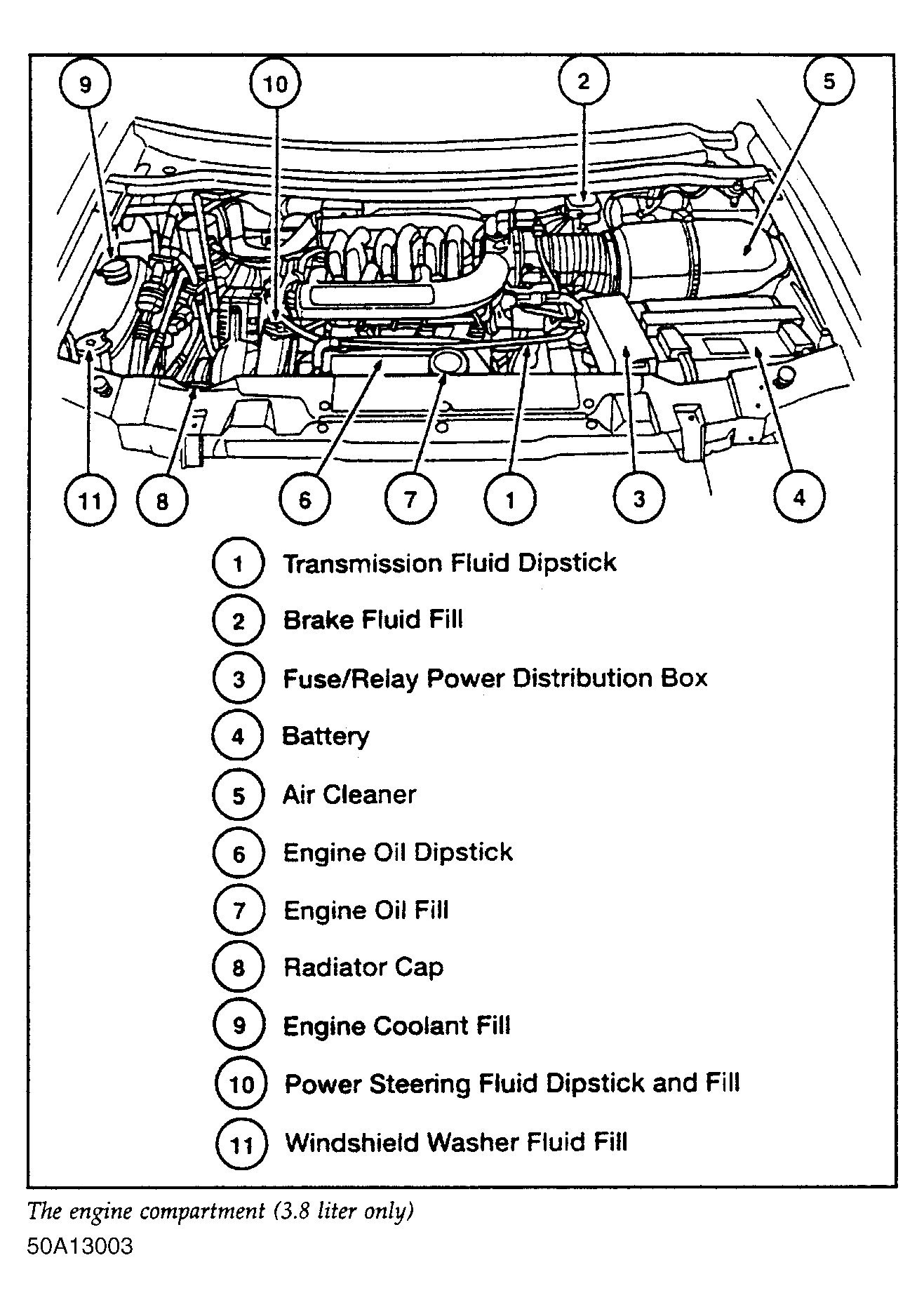

Fig 2: Service Point Locations (3.8L Engine)
G50A13003Courtesy of FORD MOTOR CO.
Fig 3: Hoist Point Locations
G50B11792Courtesy of FORD MOTOR CO.
