Battery Junction Box

NOTE: Battery junction box is located on the driver's side of engine compartment, near battery. See Fig 1 or Fig 2 . Battery junction box may also be referred to power distribution box.

Fig 1: Engine Compartment Electrical Components (2.0L)

Courtesy of FORD MOTOR CO.

Fig 2: Engine Compartment Electrical Components (2.5L)

Courtesy of FORD MOTOR CO.

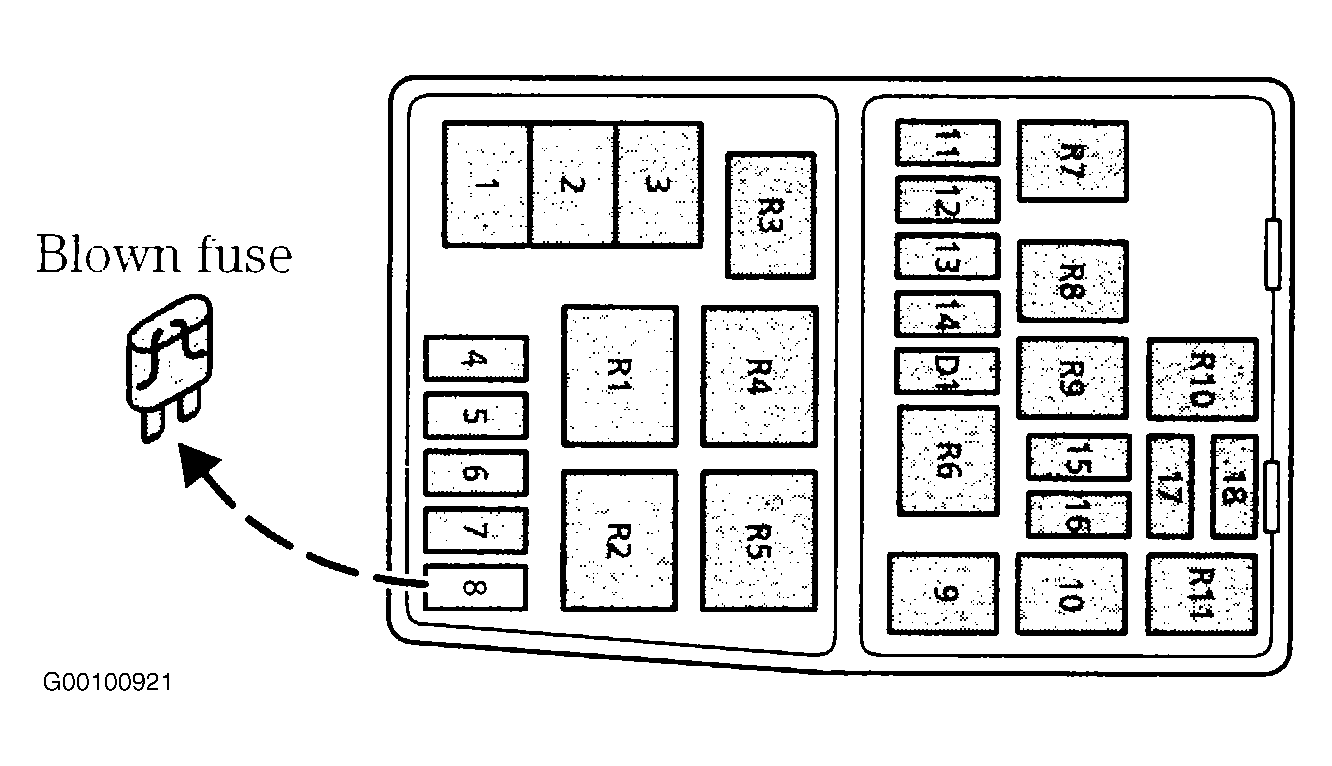

Fig 3: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

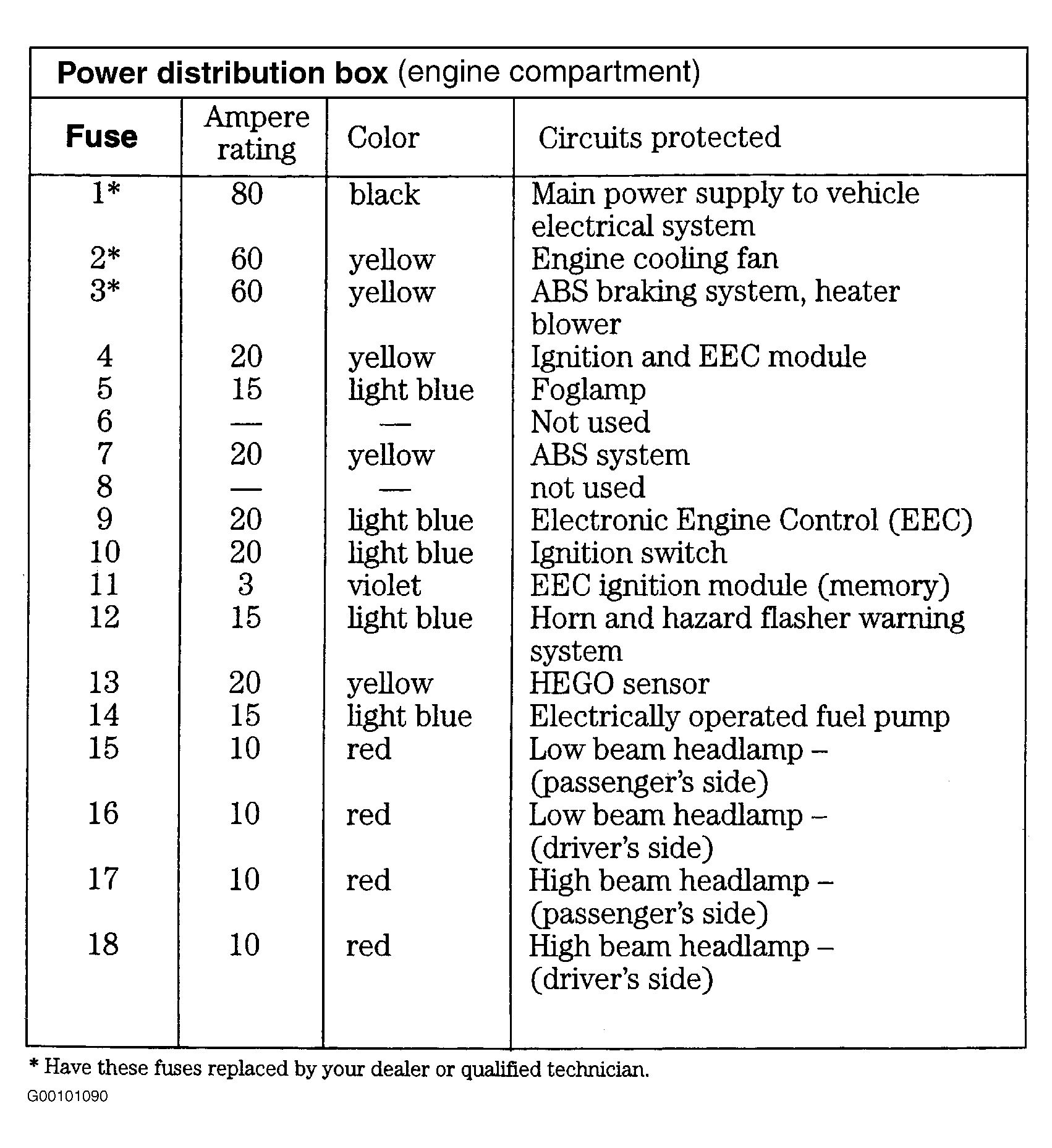

Fig 4: Battery Junction Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

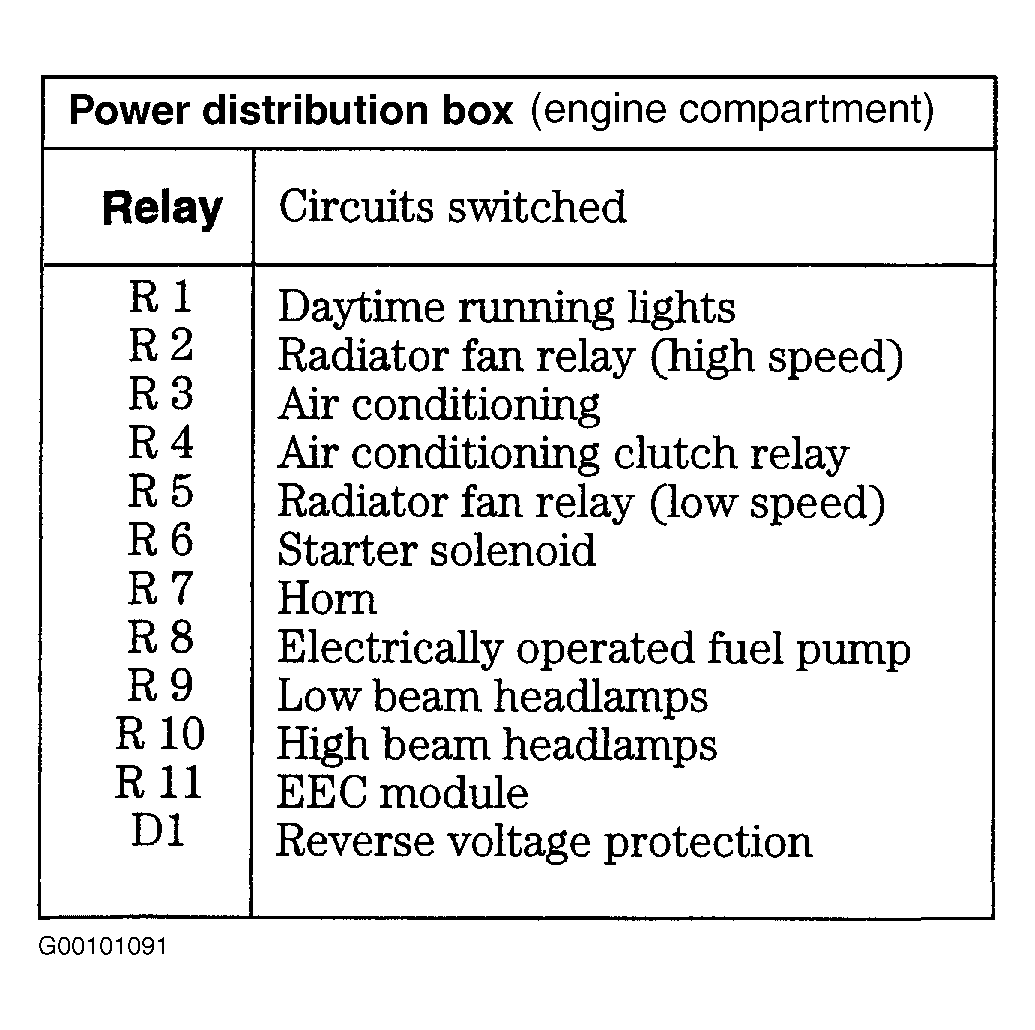

Fig 5: Battery Junction Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
