Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

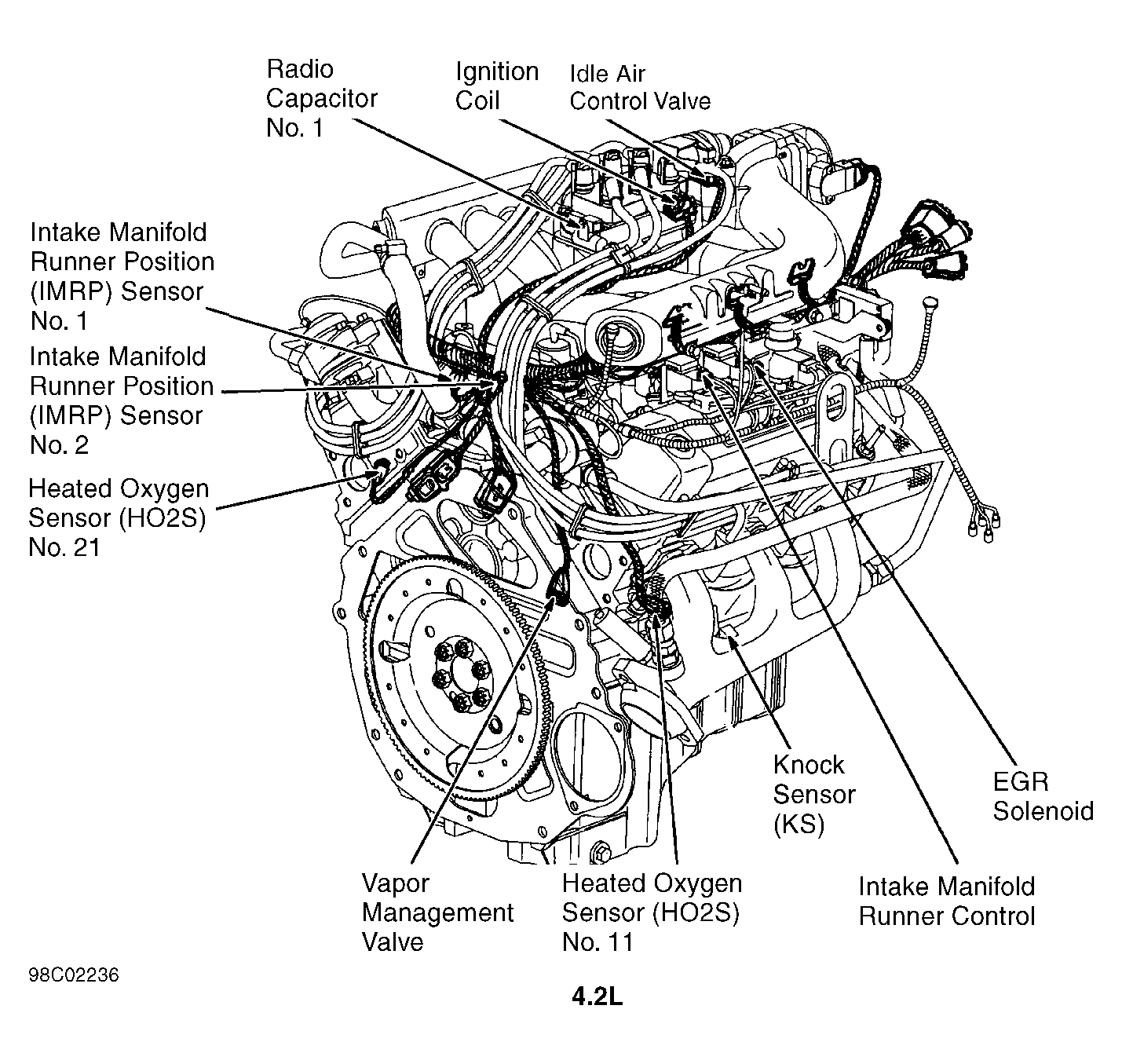

Fig 1: Right Rear Of Engine (4.2L)

Fig 2: Left Front Of Engine (4.6L)

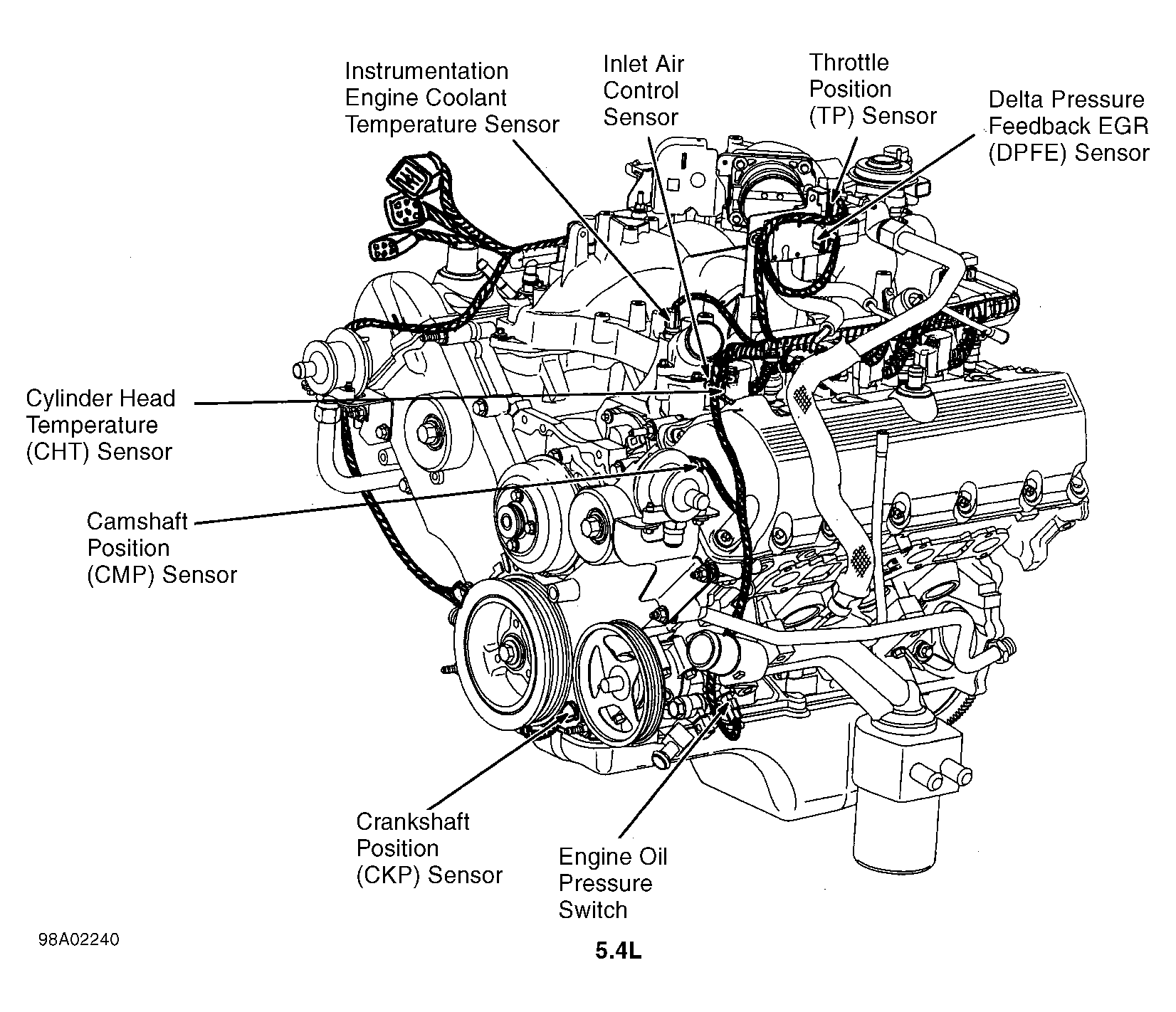

Fig 3: Left Front Of Engine (5.4L)

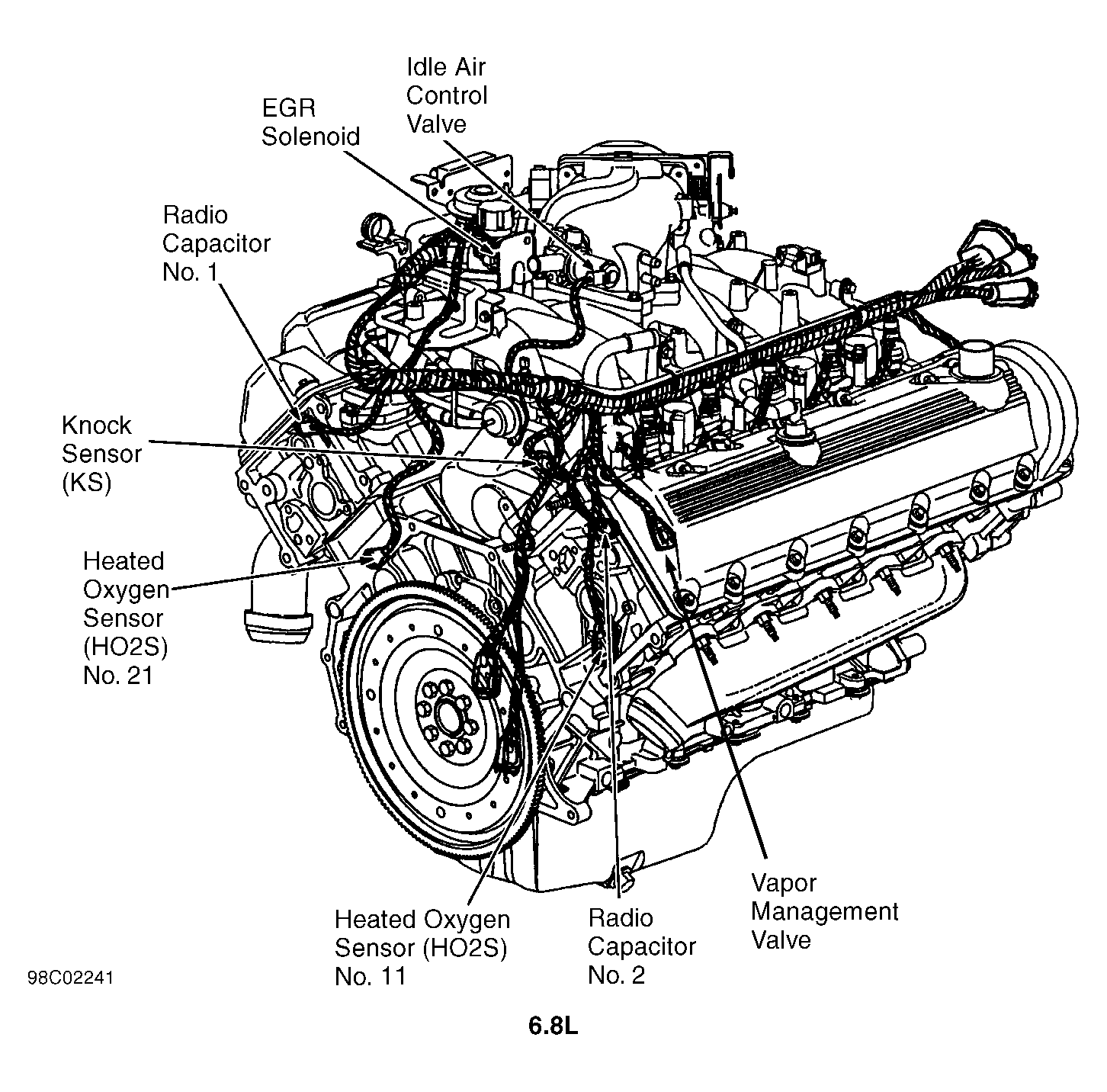

Fig 4: Right Rear Of Engine (6.8L)

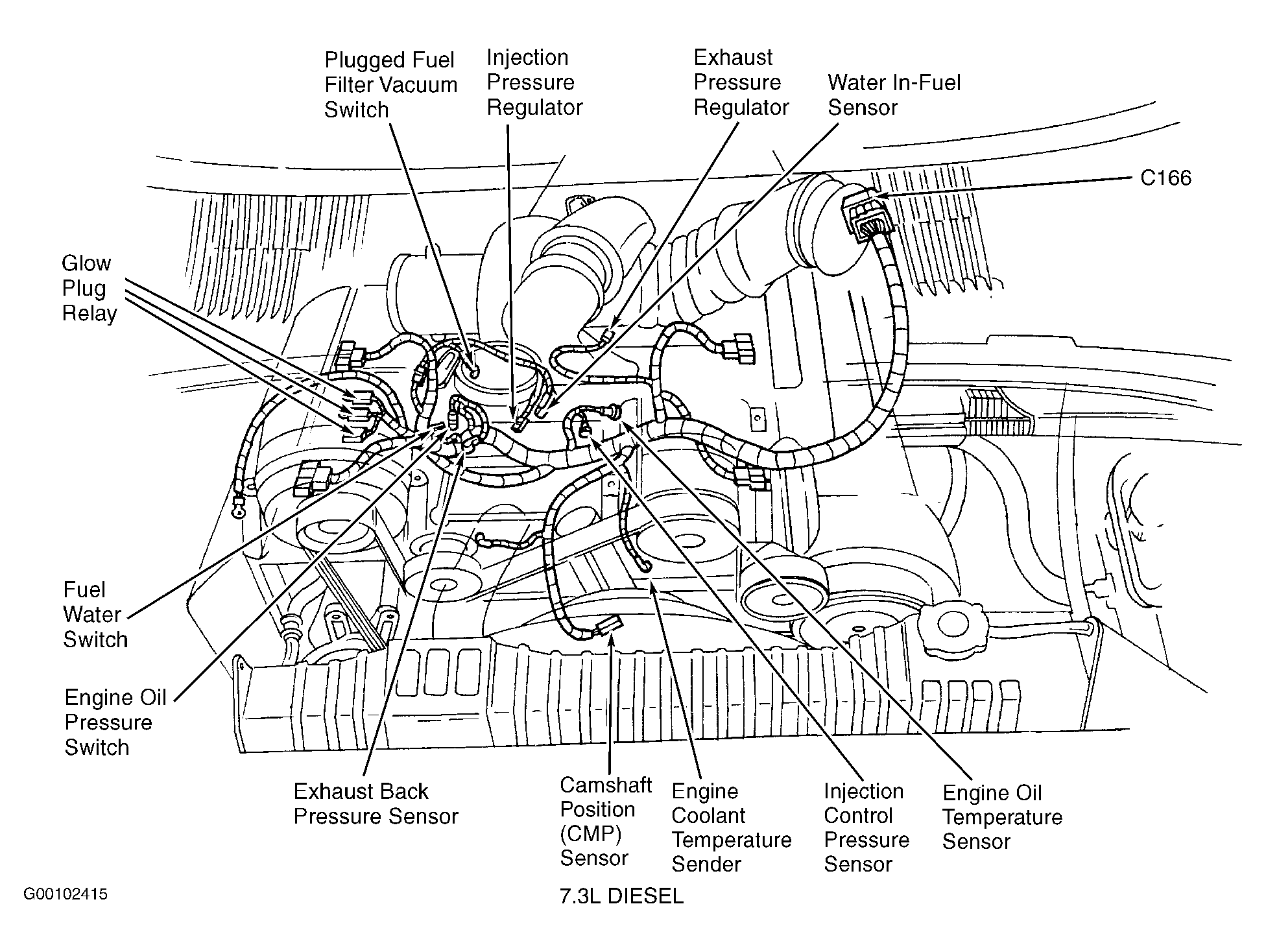

Fig 5: Center Of Engine Compartment (7.3L Diesel)

Fig 6: Engine Compartment

Fig 7: Dash

Fig 8: Dash

Fig 9: Vehicle
