Upper Intake Manifold: Installation
WARNING: This page is about a different variant/trim than selected.

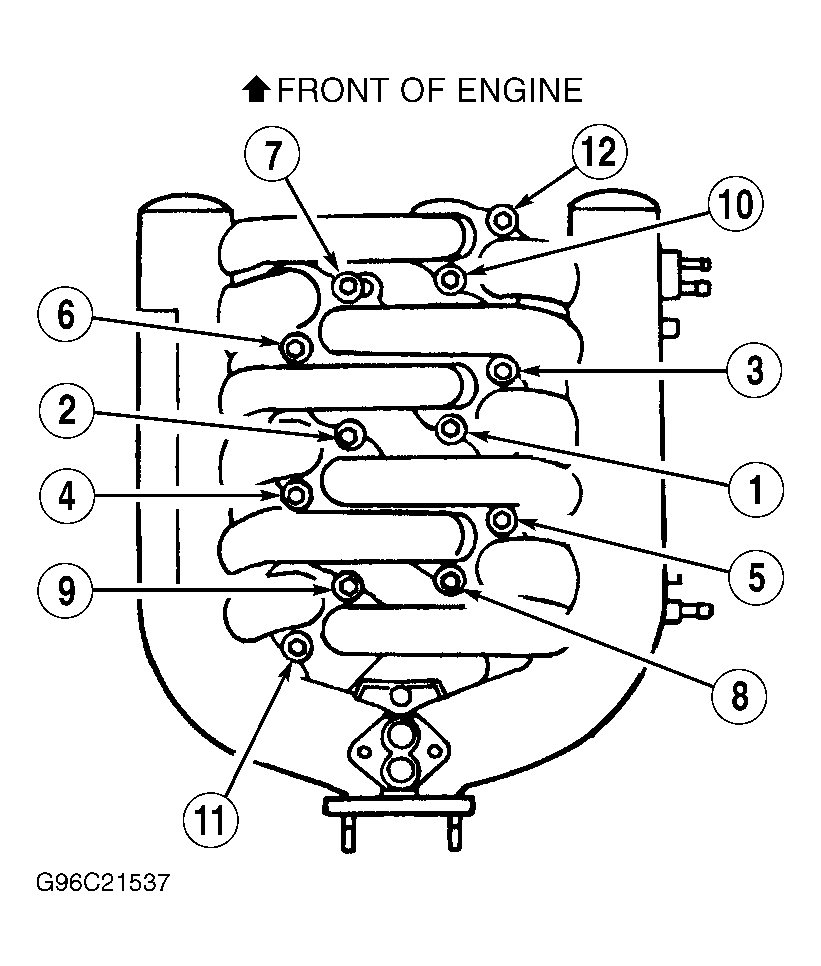

Tighten upper intake manifold bolts in sequence to specification. See Fig 1. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
