Service Point Locations

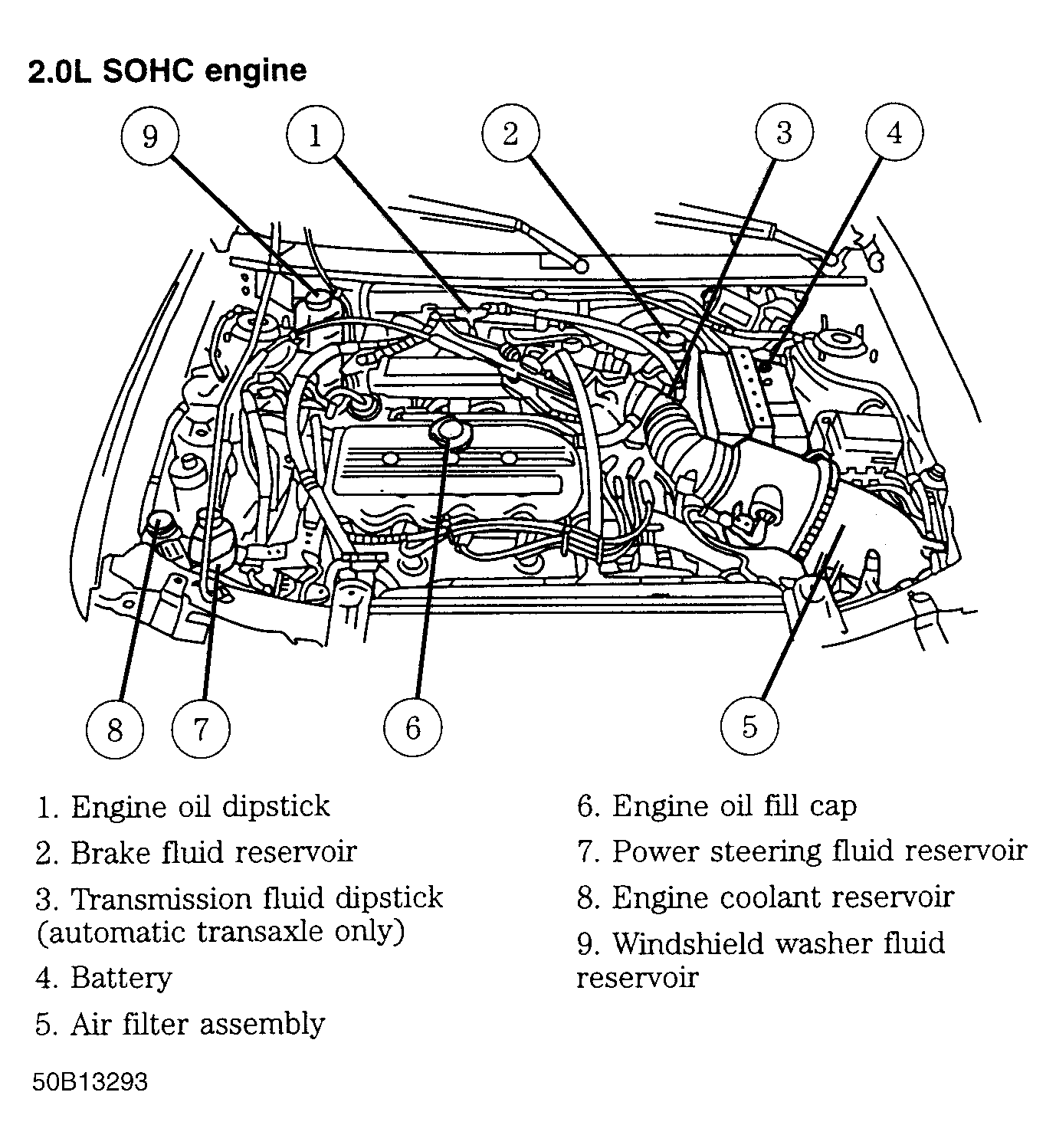

Fig 1: Service Point Locations - 2.0L SOHC
G50B13293Courtesy of FORD MOTOR CO.

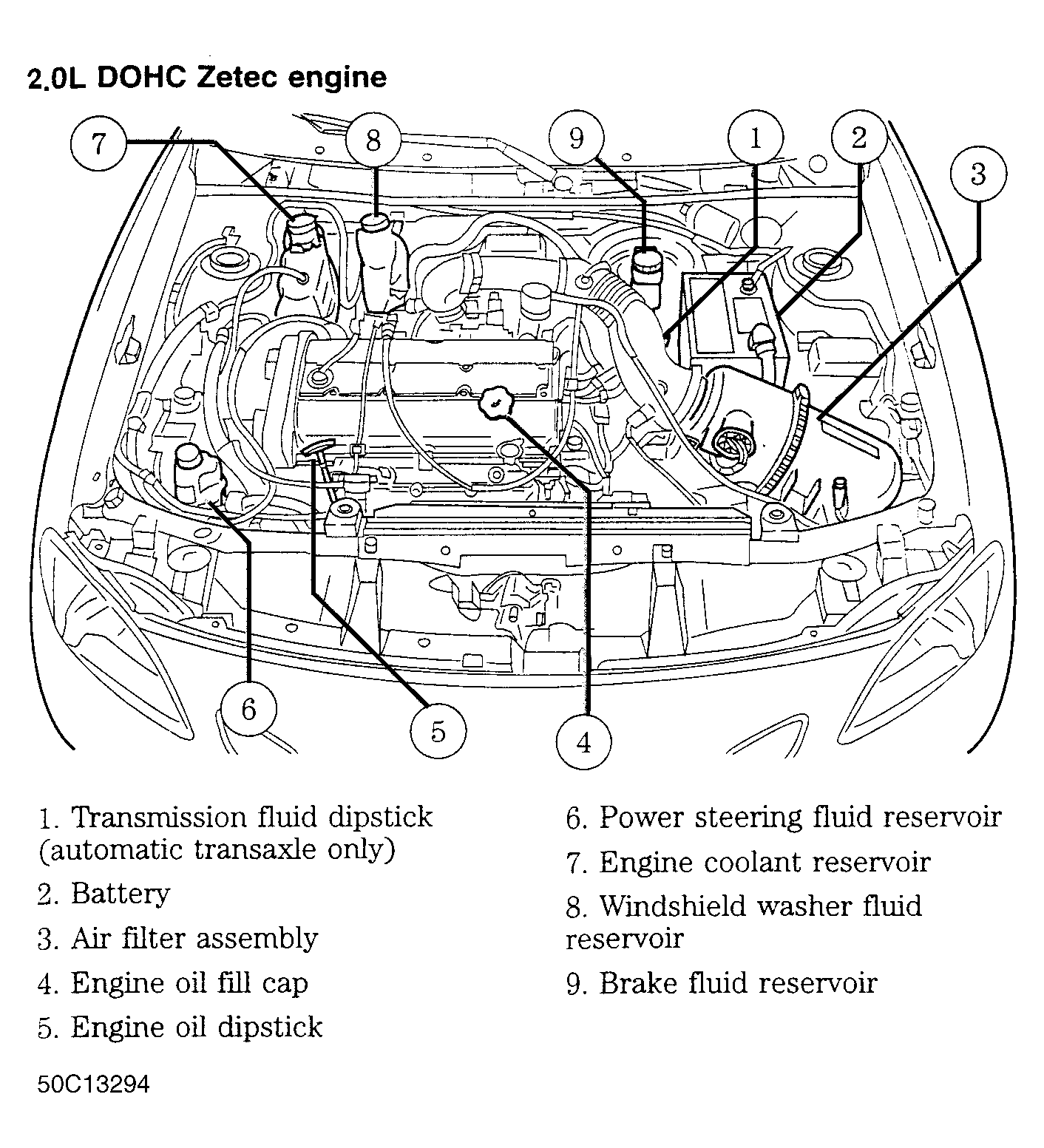

Fig 2: Service Point Locations - 2.0L DOHC Zetec
G50C13294Courtesy of FORD MOTOR CO.
