Relay Boxes

NOTE: Relay center box #1 is located left of battery, behind headlamp. See Figure. Relay center box #2 is located in instrument panel, to right of steering column. See Figure. Relay diode center box is located right rear center of vehicle, below cargo flooring. See Fig 1.

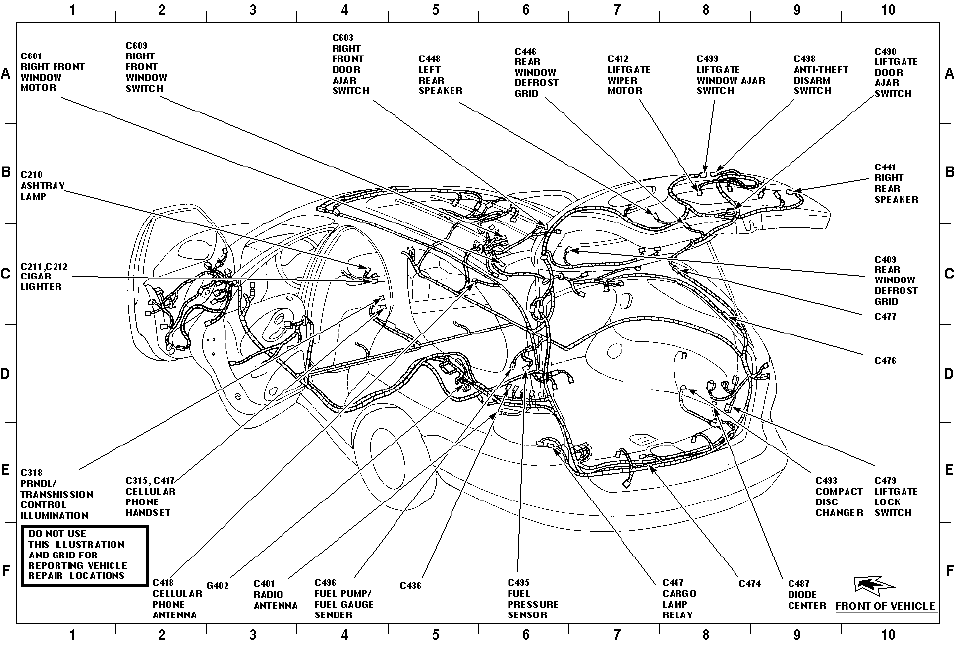

Fig 1: Locating Relay Diode Center

Fig 2: Identifying Relay Center #1 Components

Courtesy of FORD MOTOR CO.

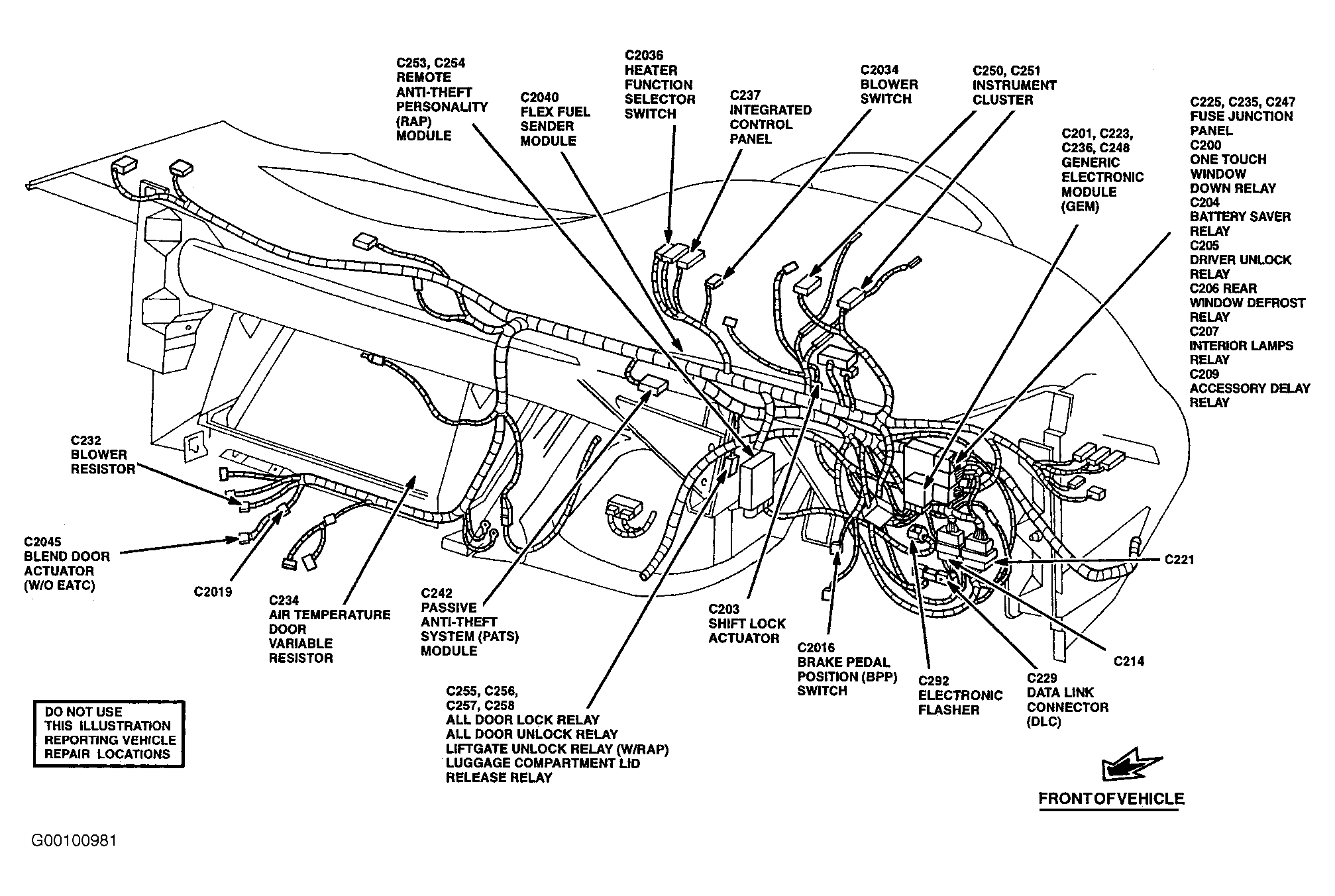

Fig 3: Identifying Relay Center #2 Components

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Relay Diode Center Components

Courtesy of FORD MOTOR CO.
