Ford
›
1998
›
Windstar GL, 3.8 4
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Symptom Tests
›
Notes
Symptom Tests: Notes

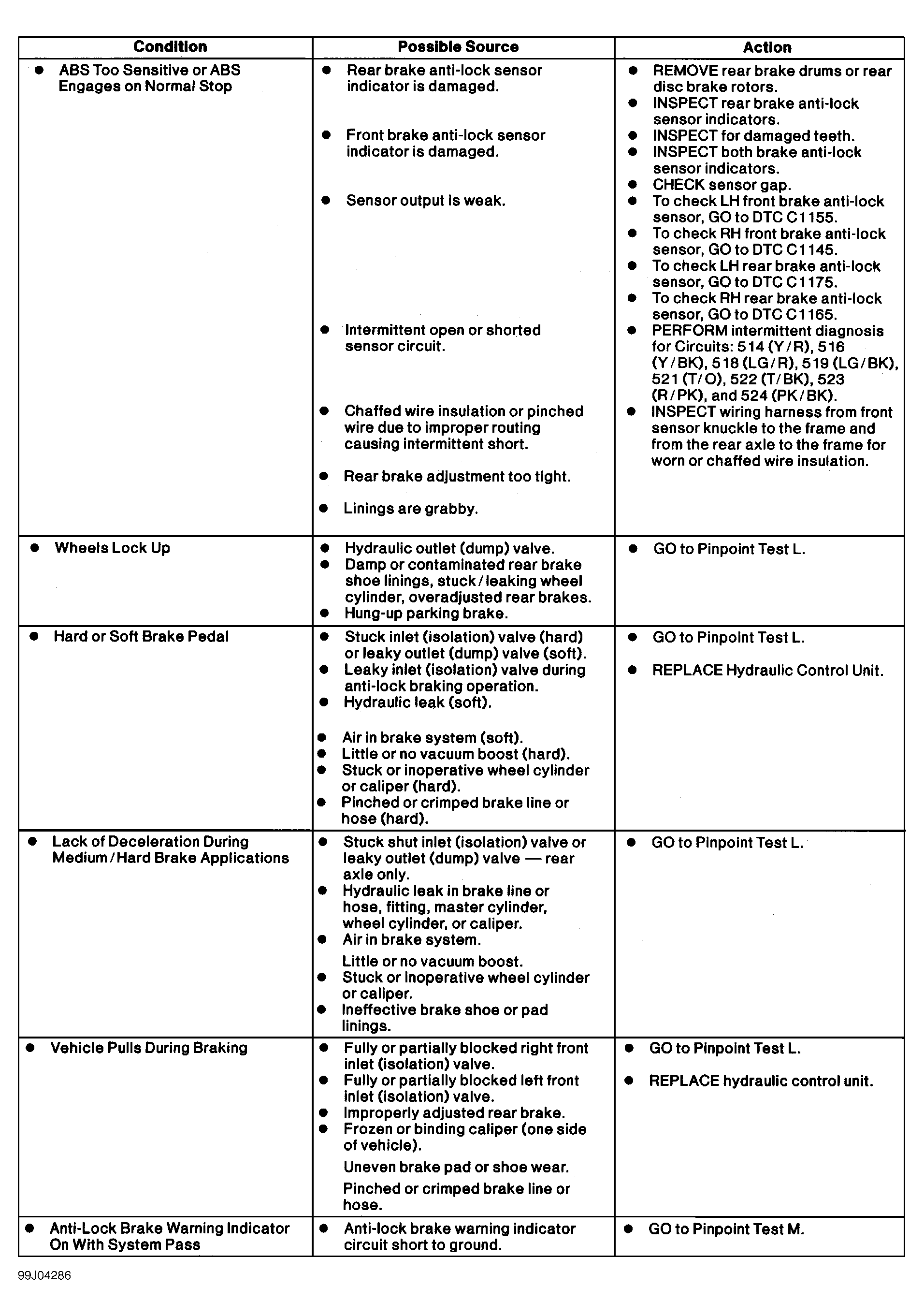

Fig 1: Symptom Diagnostic Chart
Courtesy of FORD MOTOR CO.
