Valve Cover - RH: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

VALVE COVER MATERIAL SPECIFICATION - RH

Item	Specification
Silicone Gasket Remover ZC-30	-
Metal Surface Prep ZC-31	-
Silicone Gasket and Sealant TA-30 or equivalent	WSE-M4G323-A4

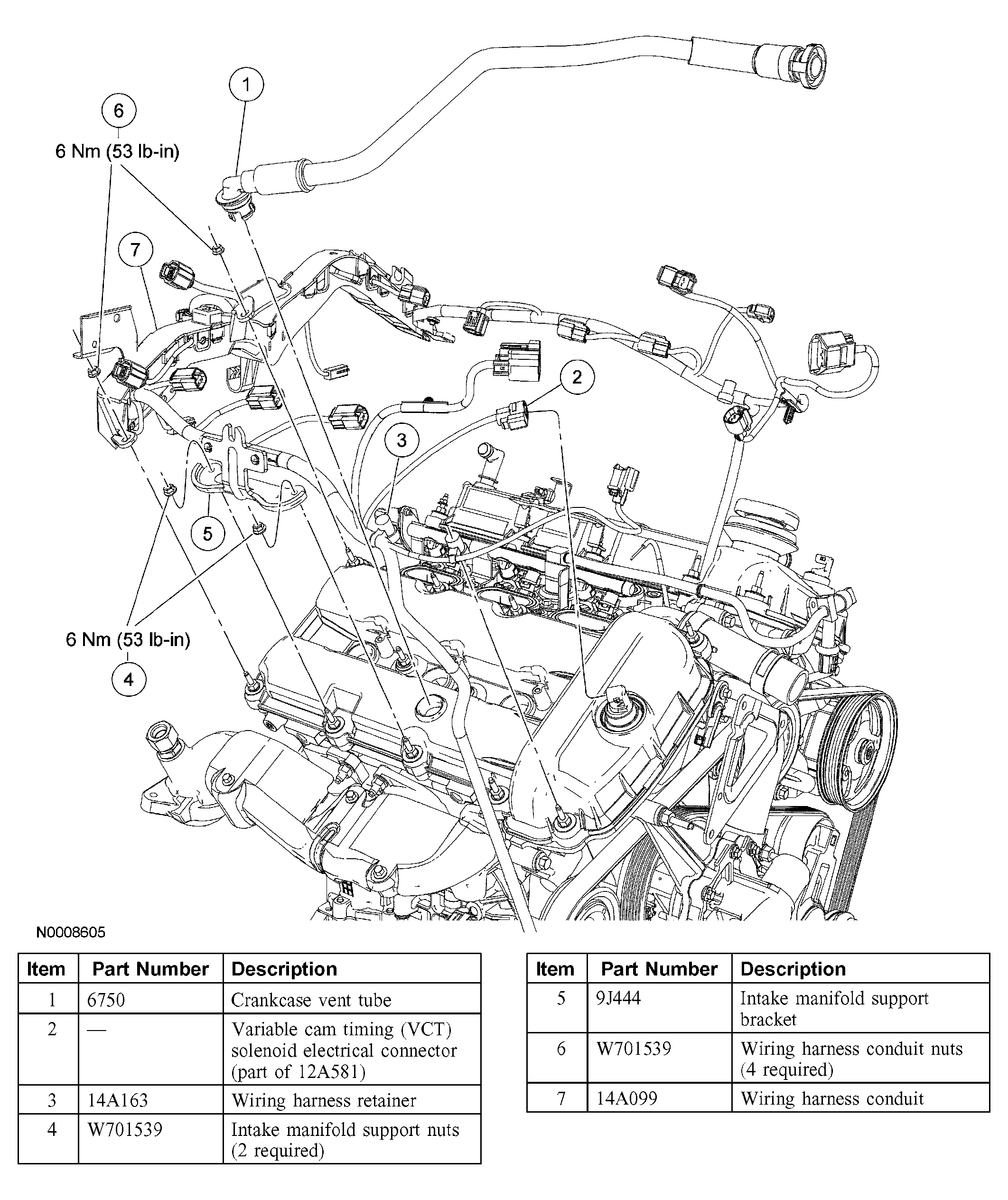

Fig 1: Identifying Components Of Valve Cover - RH (1 Of 2)

Courtesy of FORD MOTOR CO.

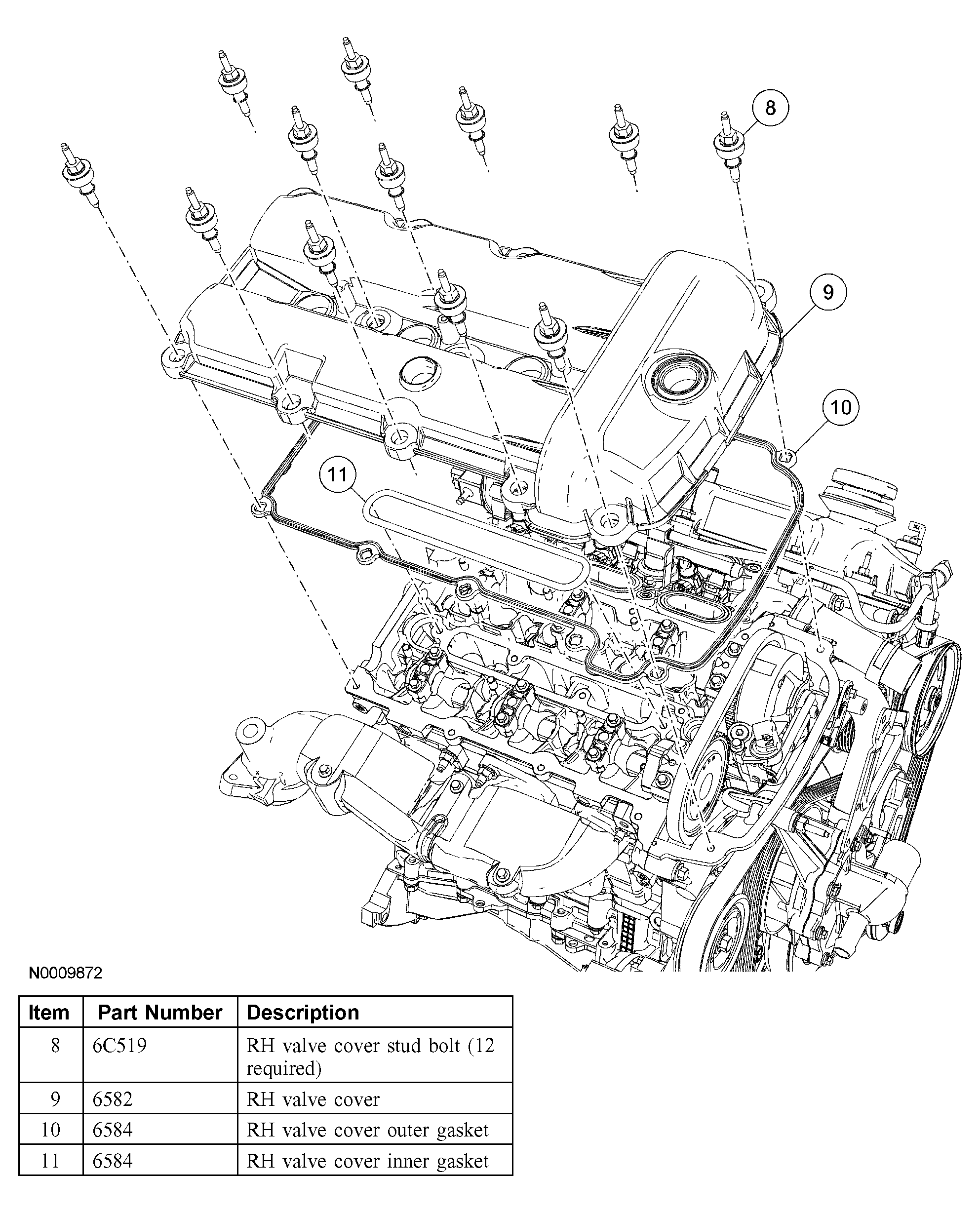

Fig 2: Identifying Components Of Valve Cover - RH (2 Of 2)

Courtesy of FORD MOTOR CO.
