Power Steering Fluid Cooler: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

POWER STEERING FLUID COOLER SPECIAL TOOL

Installer, Constant Velocity Boot Clamp 205-343 (T95P-3514-A)

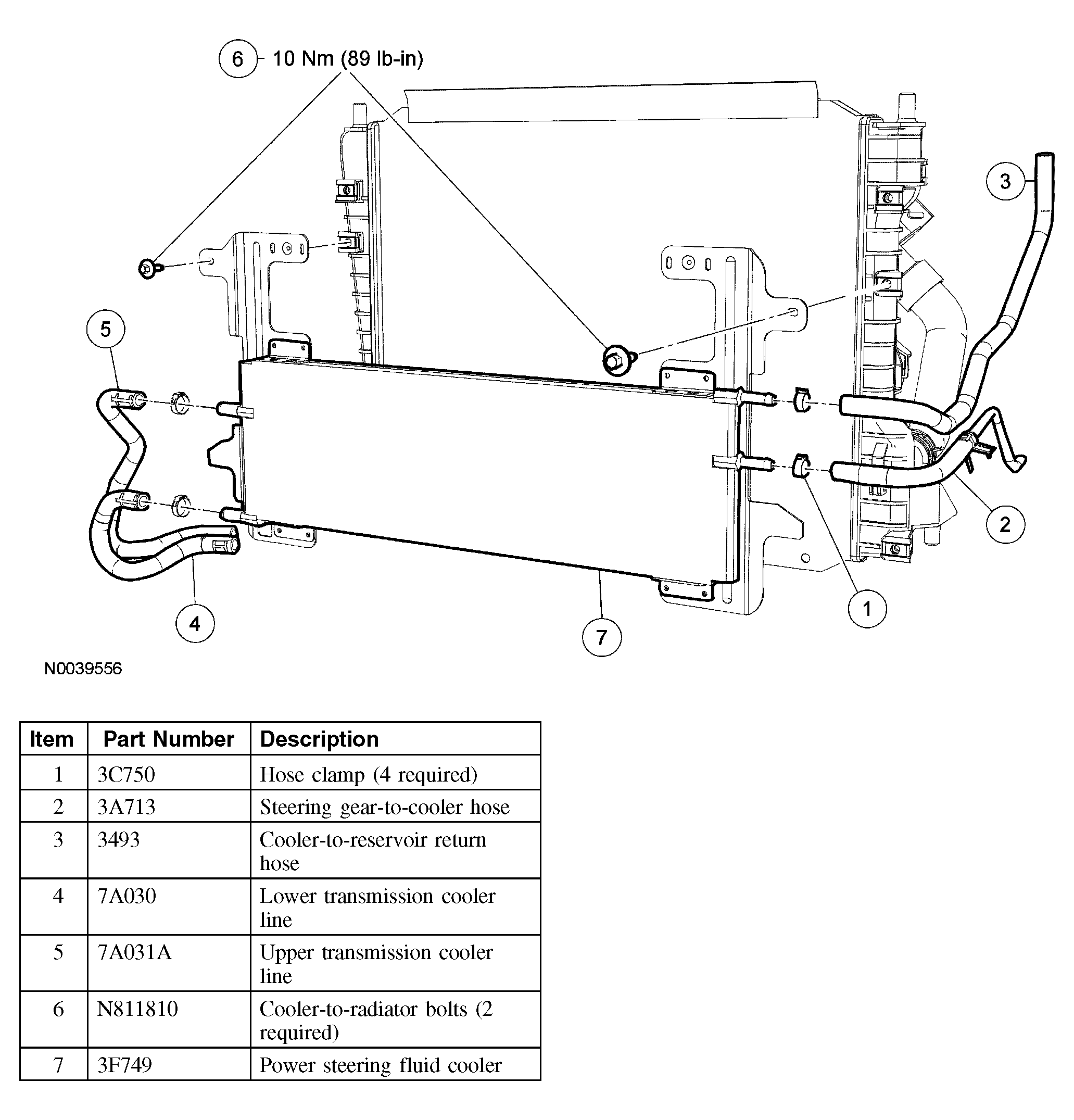

Fig 1: Identifying Power Steering Fluid Cooler Components

Courtesy of FORD MOTOR CO.
