Spark Plug Wire Routing (3.8L)

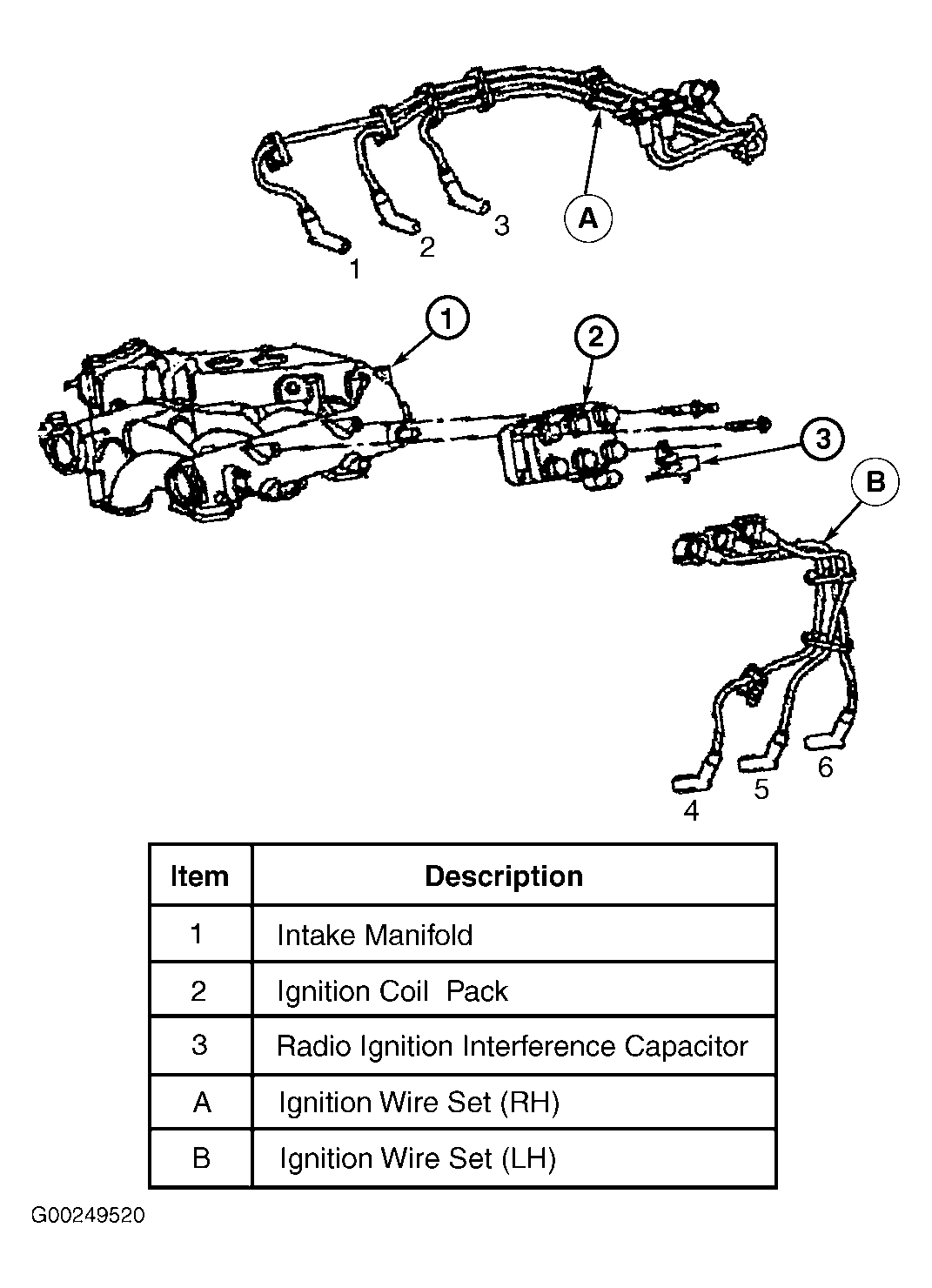

Fig 1: Identifying Spark Plug Wire Routing (3.8L)
G00249520Courtesy of FORD MOTOR CO.
