Section 1007 (Anti-Lock Brake System -- F150 Pickup)
›
Diagnosis And Testing
›
Anti-Lock Control
›
Connector Circuit Reference
›
Anti-Lock Brake System (ABS) Module C135
Anti-Lock Brake System (ABS) Module C135
WARNING:
This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

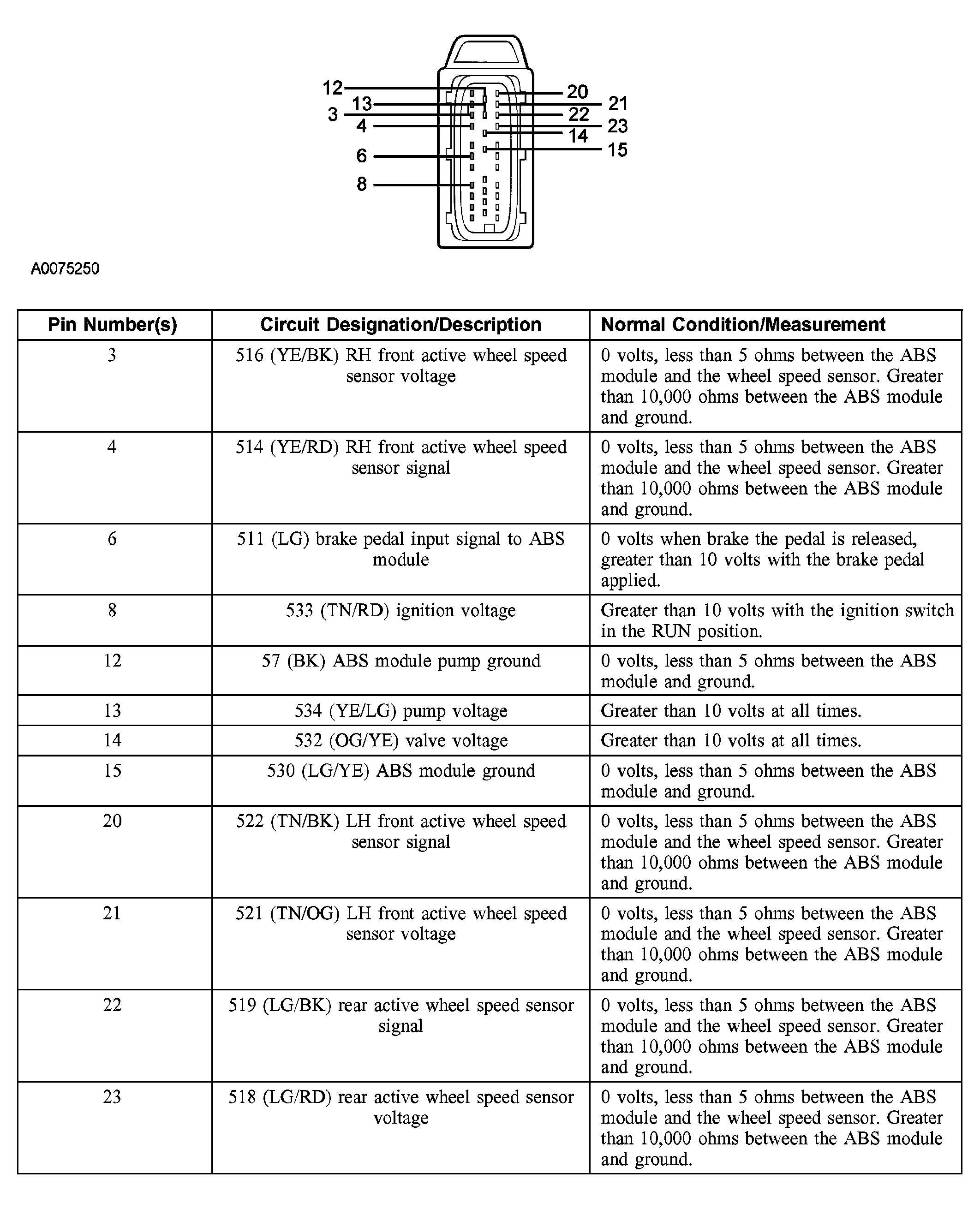

Fig 1: Identifying Anti-Lock Brake System (ABS) Module C135 Connector Pinouts
Courtesy of FORD MOTOR CO.
