Section 1035 (Cruise Control System -- F150 Pickup)
›
Diagnosis And Testing
›
Speed Control
›
Connector Circuit Reference
›
Powertrain Control Module (PCM) C175b
Powertrain Control Module (PCM) C175b
WARNING:
This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

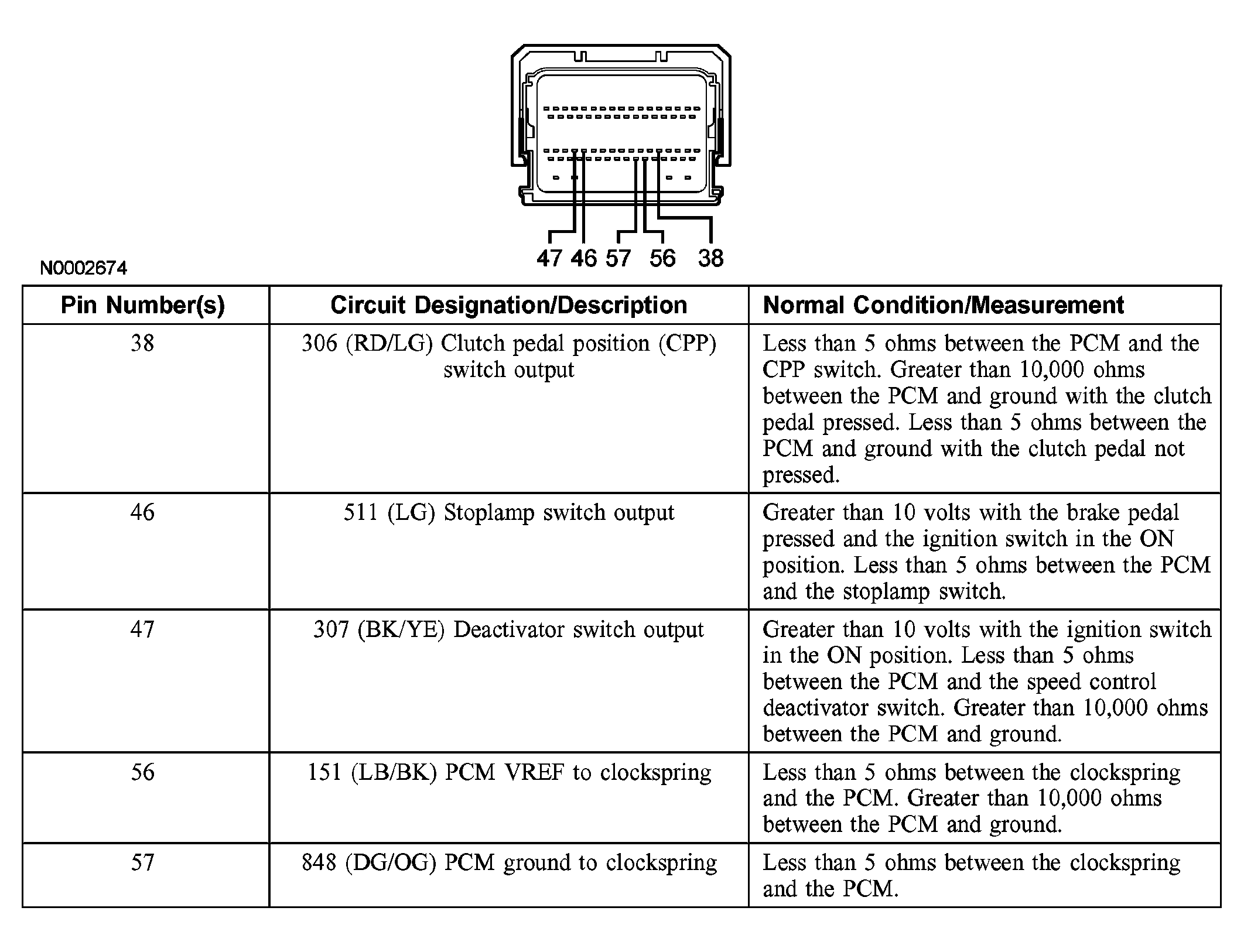

Fig 1: Identifying Powertrain Control Module (PCM) C175b
Courtesy of FORD MOTOR CO.
