Driver Memory Seat Module C341a

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

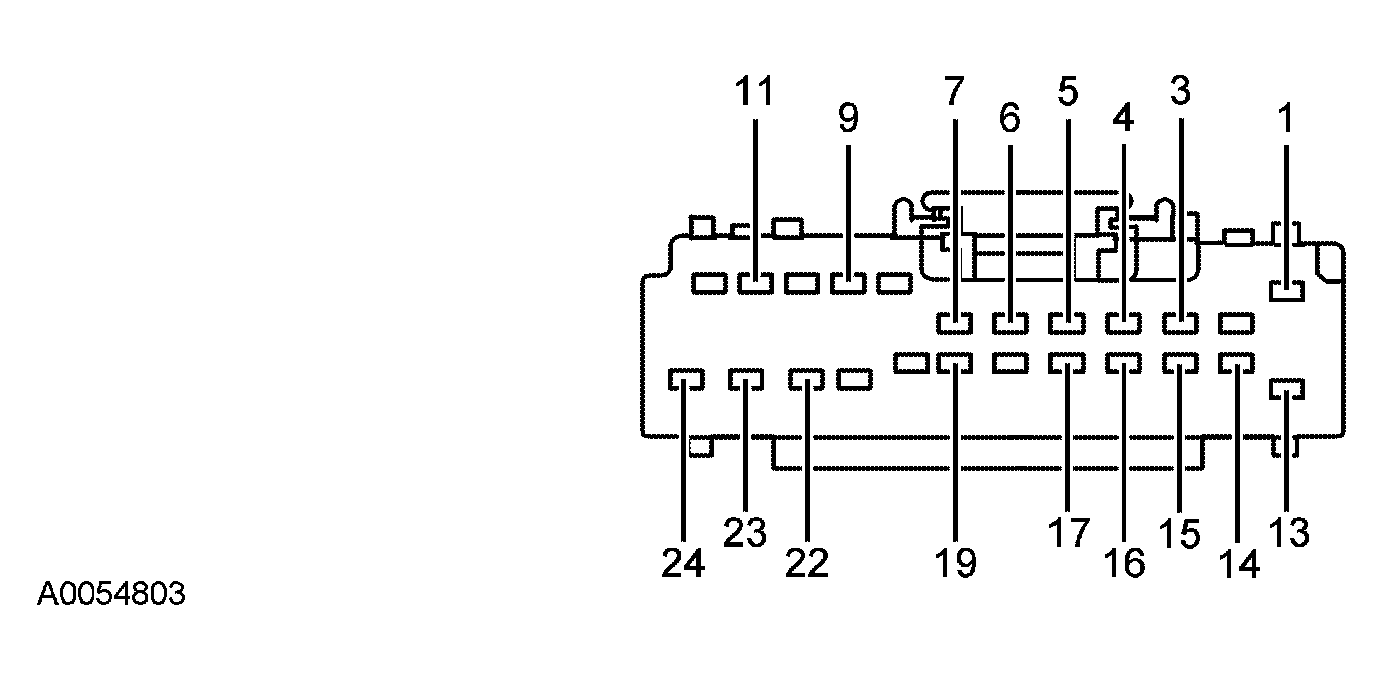

Fig 1: Identifying Driver Memory Seat Module C341a Connector Pins

Courtesy of FORD MOTOR CO.

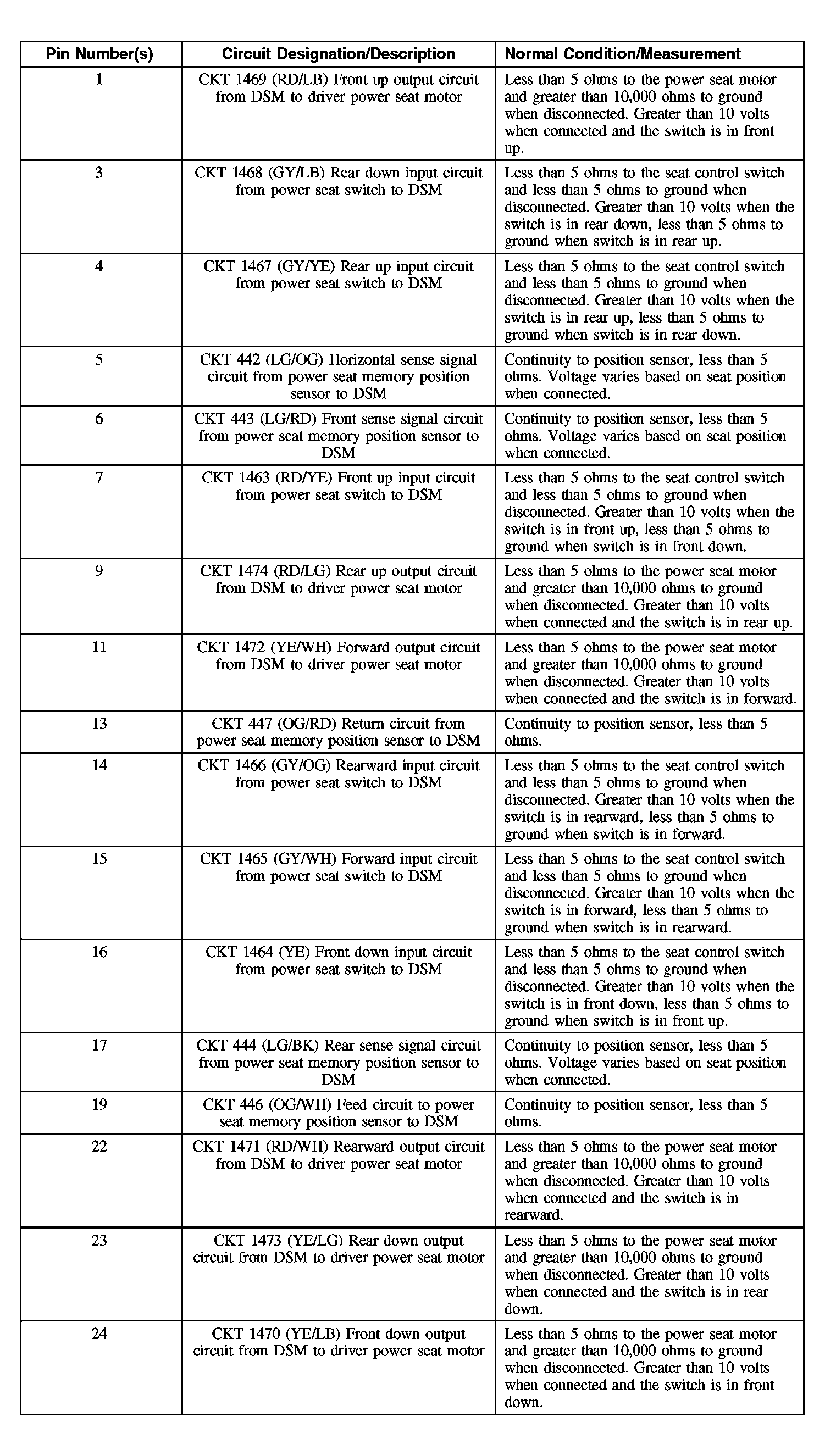

Fig 2: Driver Memory Seat Module C341a Connector Pin Numbers And Description Chart

Courtesy of FORD MOTOR CO.
