Inner Tie Rod: Removal
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The boots and clamps are designed to provide an airtight seal and protect the internal components of the steering gear. If the seal is not airtight the vacuum generated during turning will draw water and contamination into the gear, causing premature damage.
CAUTION:
Zip ties do not produce an airtight seal and must not be used.
CAUTION:
The inner ball joint grease is not compatible with water and contamination trapped in the grease will degrade the life of the joint.
CAUTION:
If present, the orientation of the vent tube must be noted so the boots and vent tubes can be installed in the correct location.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Loosen the tie-rod end jam nut.
- Remove the tie-rod end nut.
- Remove the tie-rod end.
- Remove the jam nut.
- Remove the outer bellows clamp.
- Remove and discard the inner bellows clamp and remove the bellows.
- Remove the inner tie-rod bellows.

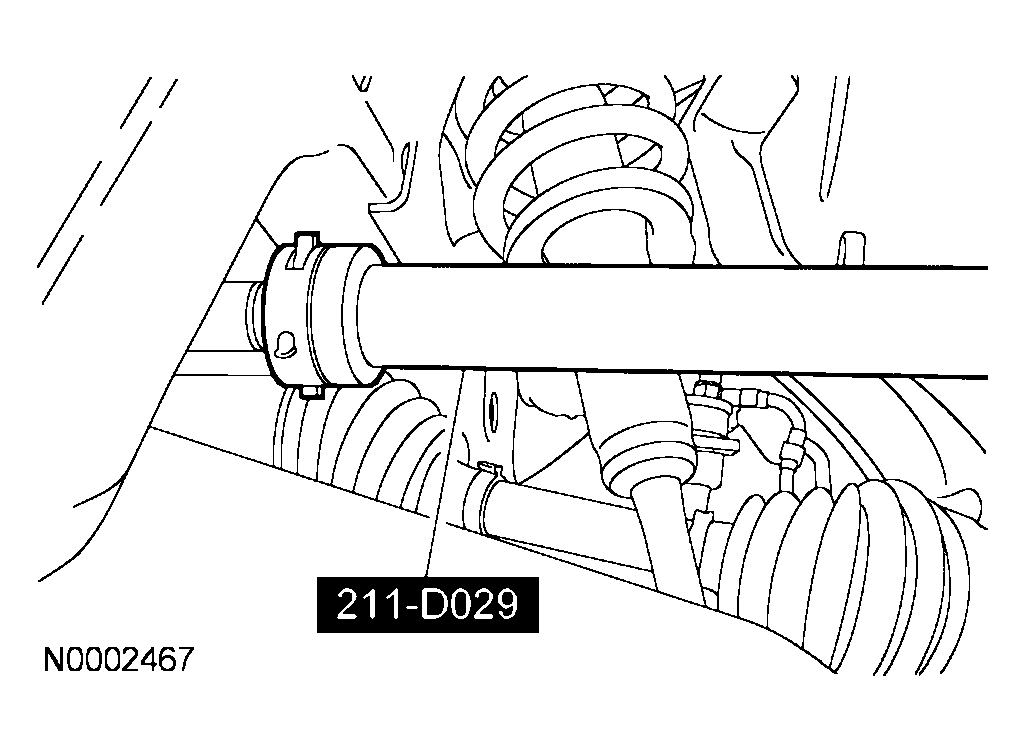

- Using the special tool, remove the inner tie-rod.
NOTE:
The hex holding feature can be used to prevent turning of the stud while removing the nut.
NOTE:
Count the number of turns required to remove the tie-rod end for reference during installation.
NOTE:
A new bellows clamp must be installed.
CAUTION:
Place the steering gear at the center position. Use a suitable tool on the flat of the rack gear to resist rotation and to prevent damage during removal and installation of the inner tie-rod.
