Power Steering Pump Pulley: Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If the pulley hub has no marks or 1 mark, mark the pulley hub with paint before installing it. If the pulley hub has 2 marks, install a new pulley.

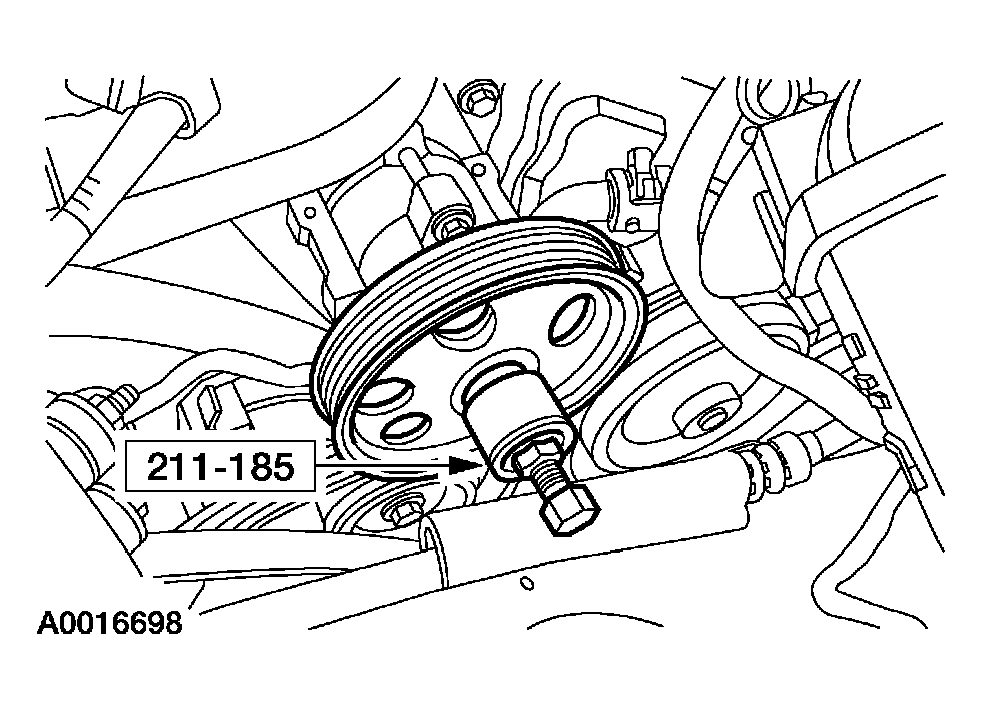

    Fig 1: Installing Power Steering Pump Pulley
    G03954662Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the power steering pump pulley.
  2. Install the engine accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Position the wiring harness to the 2 retainers.
    • Connect the 4 electrical connectors.
  4. Position the degas bottle and install the 2 bolts.
    • Connect the fill sensor electrical connector.
    • Tighten to 7 Nm (62 lb-in).
  5. Connect the windshield washer motor electrical connector.
