Bypass Tube: Notes

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

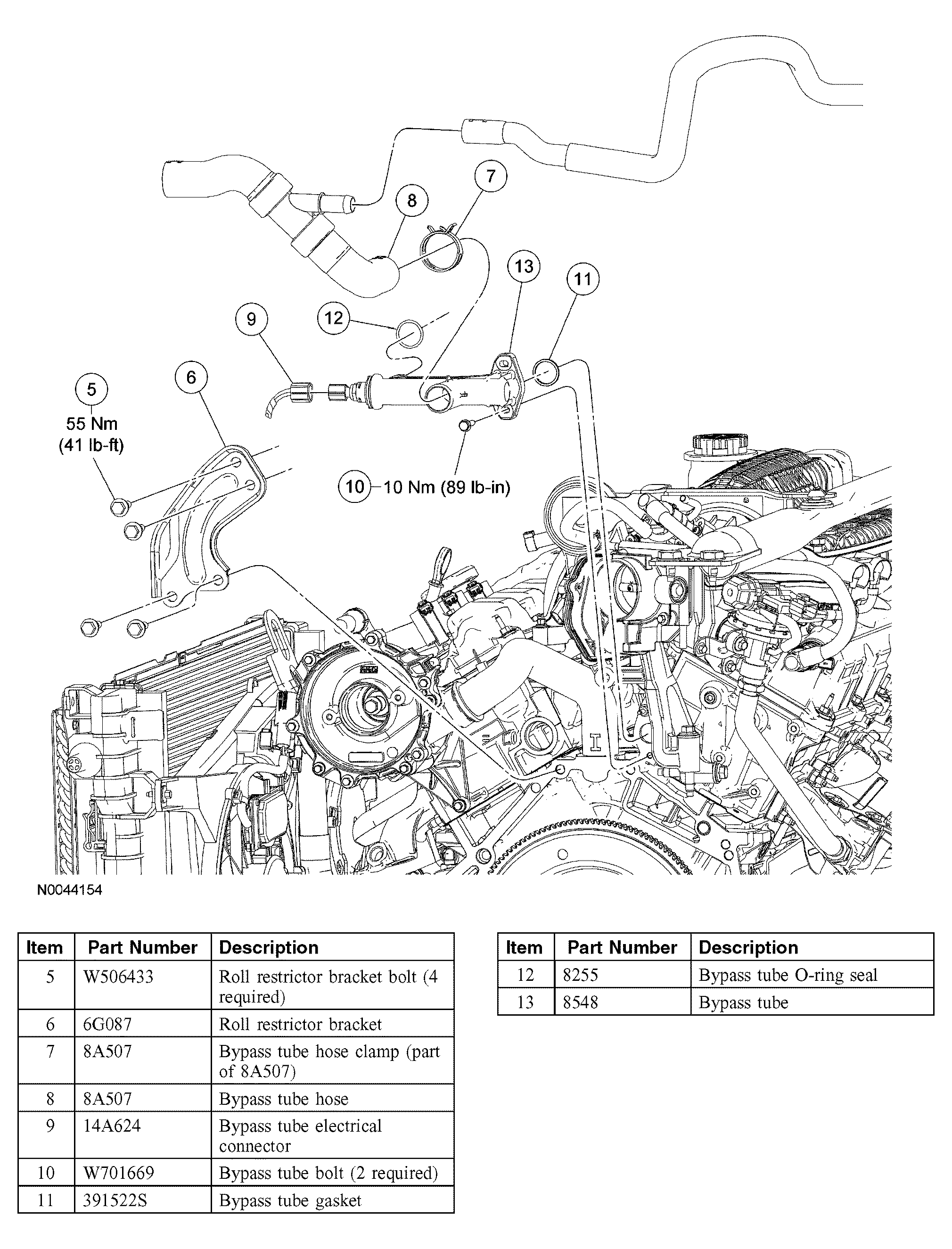

Fig 1: Removin/Installing Bypass Tube (1 Of 2)

Courtesy of FORD MOTOR CO.

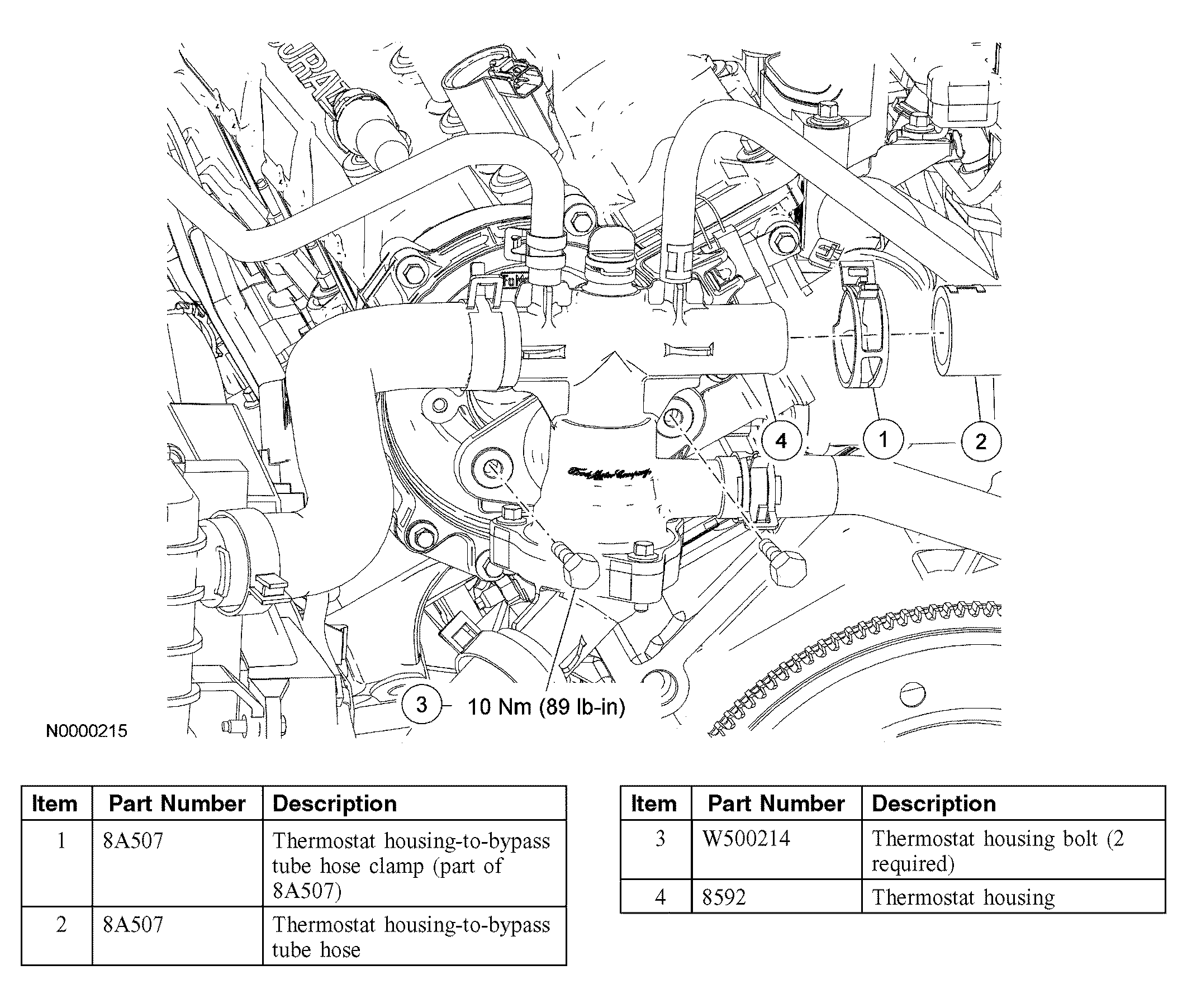

Fig 2: Removin/Installing Bypass Tube (2 Of 2)

Courtesy of FORD MOTOR CO.
